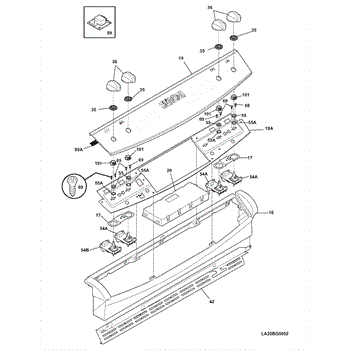

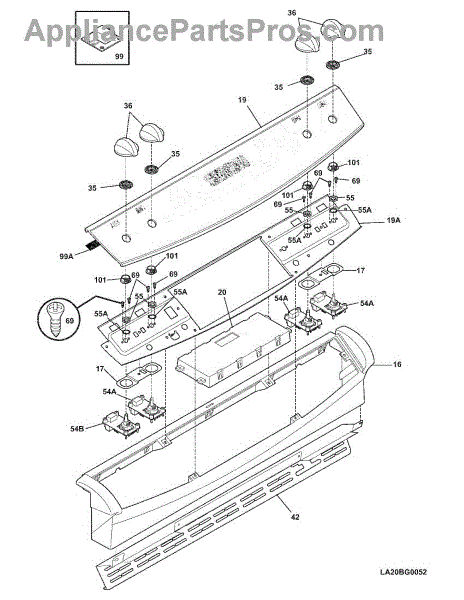

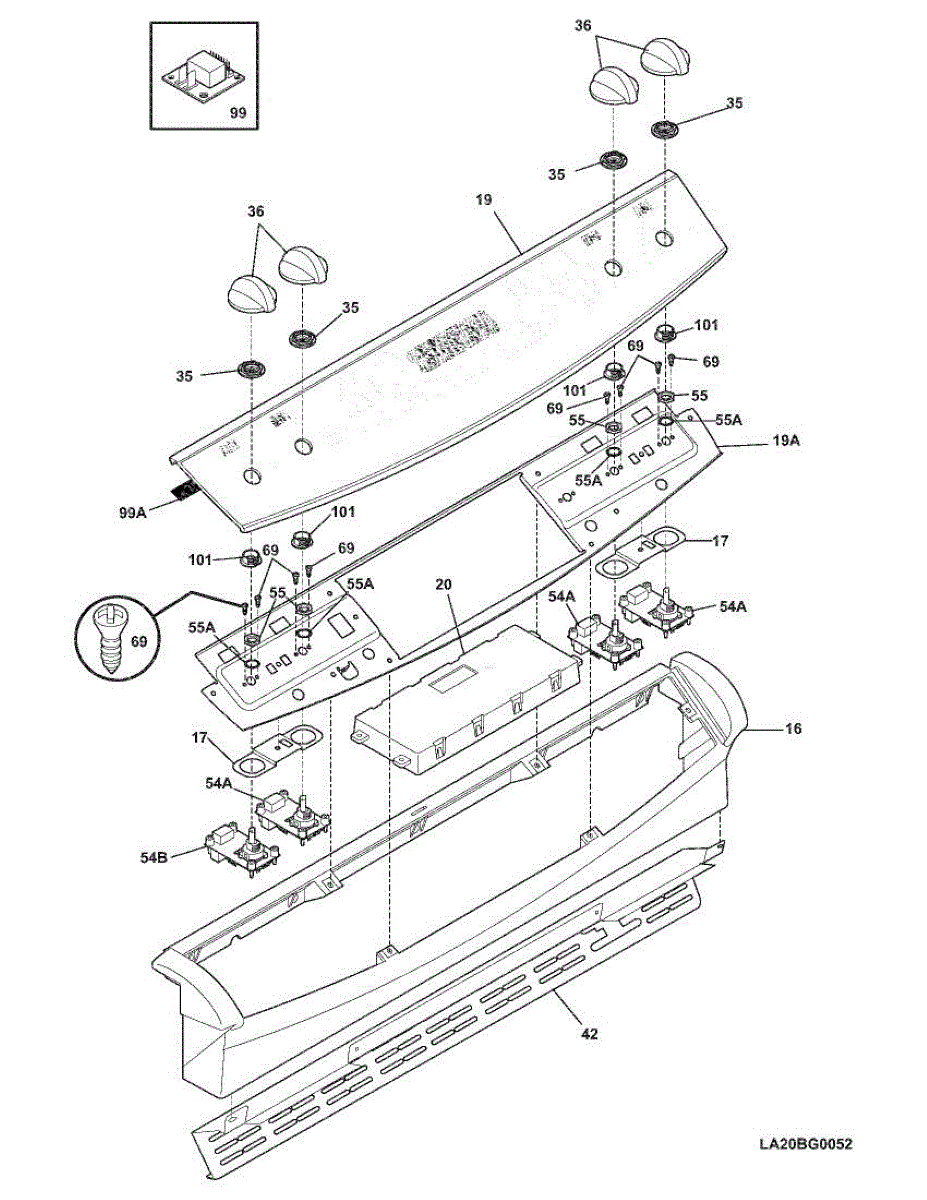

Parts for Frigidaire CGLES389ES2: 03 - Backguard Parts

Designed for use on electric ranges, this is the console assembly that features the controls for the appliance. There are selection buttons as well as the display components for the unit. When the buttons aren't working on this console assembly, it is likely that this part will need to be replaced. Any issues with the digital display will also result in needing to replace the console assembly. Inspect the part to determine if there are any physical signs of failure or damage. Unplug the range from its electrical outlet before beginning. It's always a good idea to wear work gloves when performing care and maintenance on any appliance.This specific console assembly is compatible with electric ranges that are white in color and are manufactured by Frigidaire and Crosley. The part comes straight from the manufacturer and is sold individually.

This retainer is a small mounting clip that secures interior components so they stay in place and operate quietly. Replacing a worn or broken retainer restores proper fit and prevents parts from shifting or rattling. What it does:

• Secures shelves, panels or trim to the appliance cabinet to maintain correct alignment
• Prevents interior parts from shifting, rubbing or producing vibration noise
• Helps keep seals and trim seated properly to maintain a tight fit
• Commonly replaced when clips are cracked, missing or fail to hold components

• One retainer clip as pictured

• Disconnect power before servicing to avoid shock or injury
• Remove only the panels or shelves necessary to access the damaged retainer
• Install clip in the original orientation; retained component sits flush and is secure
• Use basic hand tools as needed

This electronic oven control board governs bake/broil functions and the display for Frigidaire-made ranges. Replace it to restore oven heat, accurate temperature regulation, and responsive controls when the original control fails. What it does

• Controls power to the bake and broil element/igniter and times oven cycles
• Monitors the oven sensor and maintains the set temperature
• Receives keypad inputs and drives the clock/temperature display
• Common symptoms: oven won't heat or overheats, display dead/dim, unresponsive buttons, intermittent shutoff, or error code on the display

• 1 electronic control board

• Disconnect power at the breaker before servicing; verify no voltage at the range
• Access the control through the backguard/control panel; photograph wiring for reference
• Handle the board by the edges to avoid static damage; move connectors one at a time
• Transfer the existing keypad overlay/trim and any mounting hardware from the old board

This surface element control board manages a dual radiant cooktop burner. It regulates power to the inner and outer coils so the element heats correctly, changes size as selected, and responds accurately to temperature settings.

• Controls power to a dual radiant surface element
• Directs inner/outer ring operation based on size selection
• Modulates heat output to match the set level
• Common failure symptoms: dual burner won't heat, only one ring heats, stuck on high, or erratic cycling

• Disconnect power at the breaker before servicing to avoid electrical shock
• Access is typically under the cooktop or rear top panel; refer to your model's service information
• Move wire connectors one at a time to the new board to maintain correct placement
• Handle the board by the edges and observe ESD precautions

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
