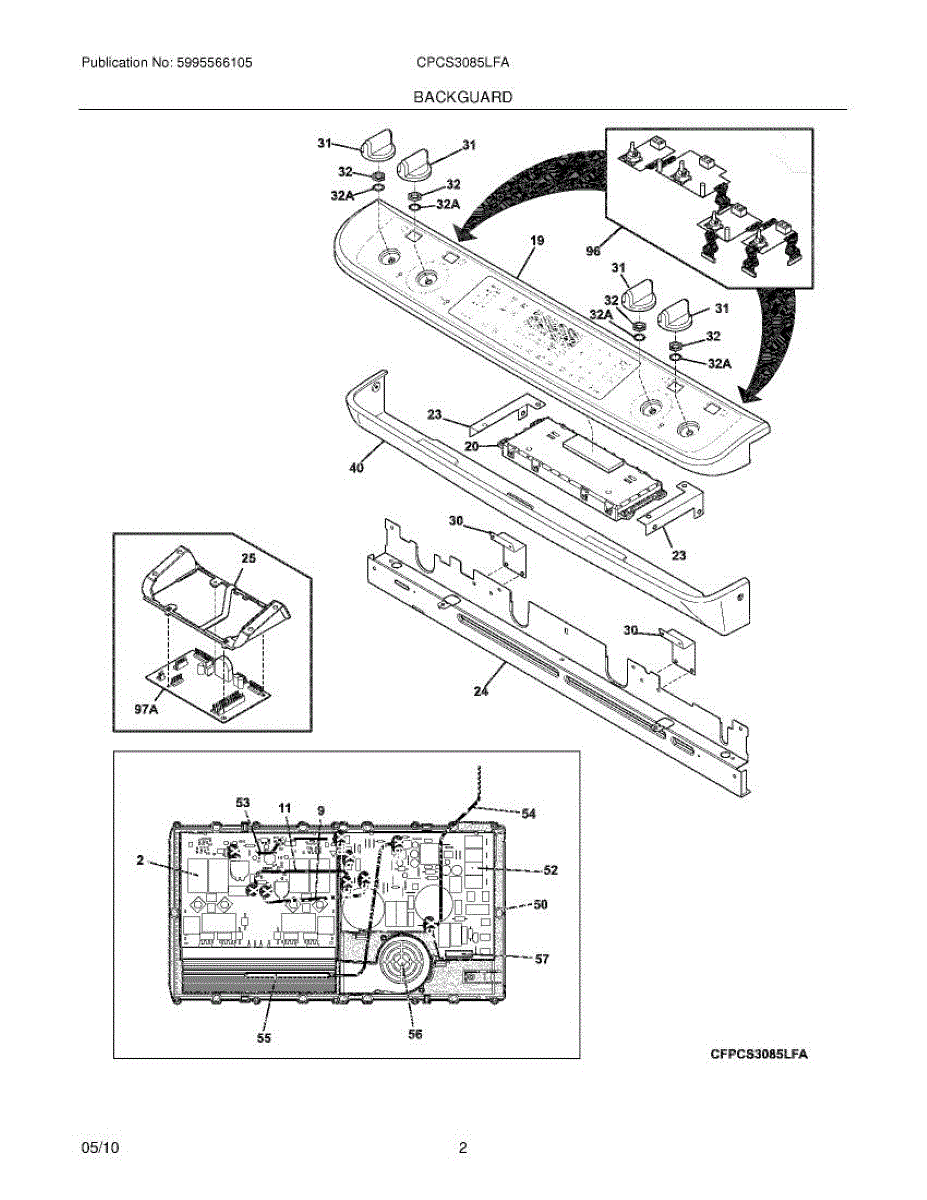

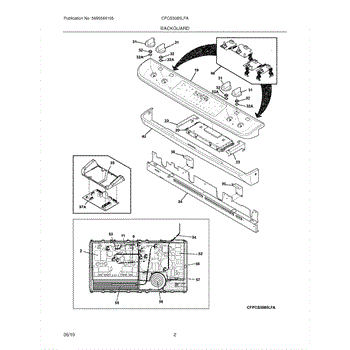

Parts for Frigidaire CPCS3085LFA: 03 - Backguard Parts

This generator is the OEM replacement rotary cam assembly that times and drives mechanical sequences so your appliance operates correctly. It restores proper cycle sequencing to help eliminate failures caused by a worn or damaged cam. What it does:

• Rotates and indexes internal cams/gears to control mechanical switching and timing
• Ensures correct sequencing of cycles and component engagement
• Commonly replaces noisy, stuck, or non-indexing cam assemblies
• Helps resolve symptoms like intermittent operation, failed cycle changes, or mechanical binding

• One generator (rotary cam assembly) as shown

• Disconnect power before servicing to avoid shock or injury
• Access may require panel removal and basic hand tools
• Verify alignment and timing marks during installation for proper operation

This electronic control board replaces a failed controller to restore the appliance's control functions and cycle management. It receives user commands and coordinates timers, indicators and system safety logic for normal operation. What it does:

• Manages cycle selection, timing and sequencing for the appliance's functions.
• Processes user inputs and updates display indicators or LEDs.
• Monitors and coordinates safety interlocks and system sensors.
• Symptoms often linked to a failing board: unresponsive controls, blank or erratic display, cycles that won't start or complete, or unexpected error codes.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Handle the board carefully; avoid touching contacts and use ESD precautions if available.
• Installation typically requires removing the control console or access panel and transferring wiring harnesses; keep photos/labels of wire locations for reassembly.

This control knob replaces a worn, broken or missing round oven/stove control knob to restore a positive grip and clear pointer for temperature or setting selection. It installs quickly to make controls easy to read and use. What it does:

• Fits onto a standard control shaft to select oven/cooktop settings
• Replaces a cracked, stripped, loose or missing knob that won't turn or hold a setting
• Restores the pointer/indicator for accurate temperature or function selection
• Provides a secure grip for smooth adjustment

• Disconnect power to the appliance before servicing for safety
• Pull off the old knob straight from the control shaft; some models may have a retaining clip—do not force
• Align the knob's spline/indicator with the shaft and push straight on until fully seated
• Test the control movement after installation; if knob does not fit, stop and verify shaft type

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
