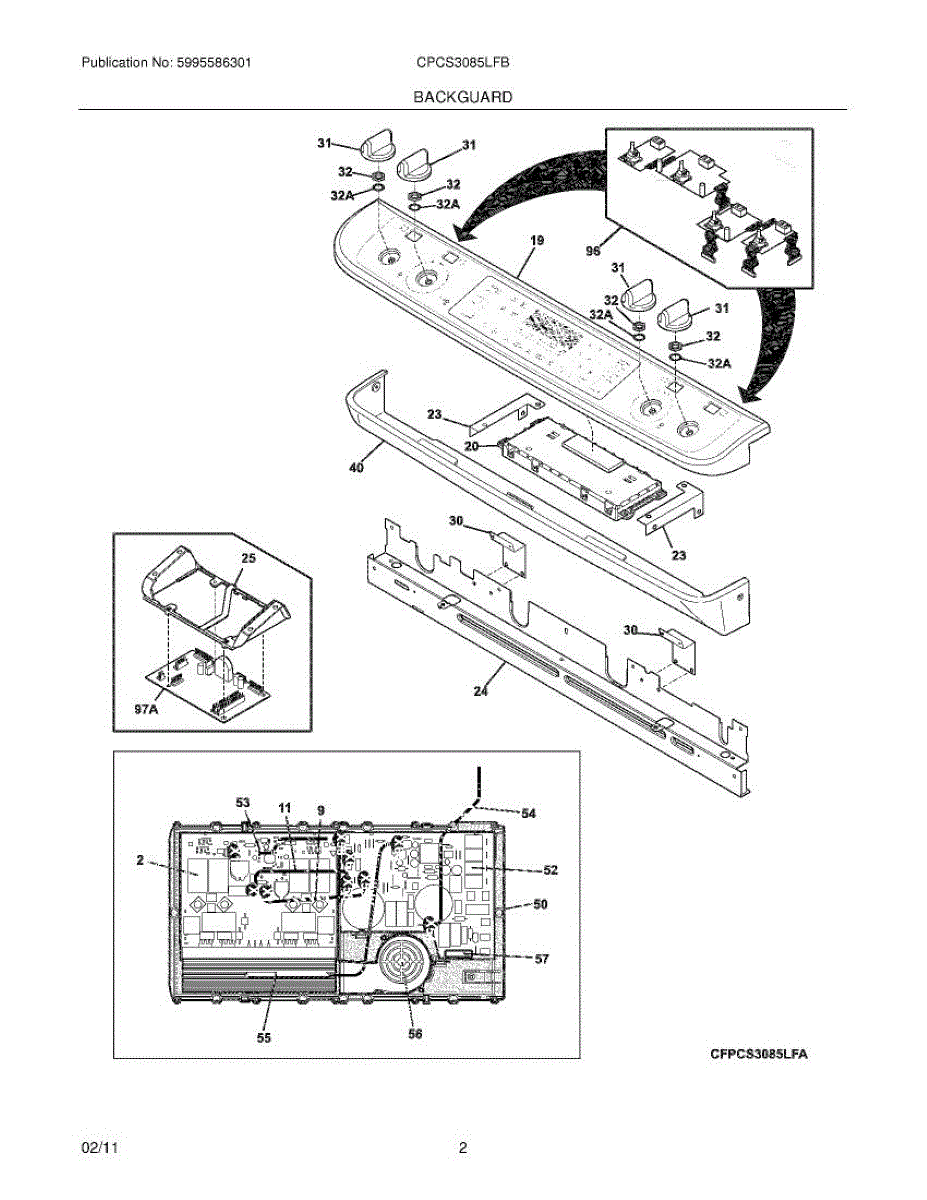

Parts for Frigidaire CPCS3085LFB: 03 - Backguard Parts

This generator is the OEM replacement rotary cam assembly that times and drives mechanical sequences so your appliance operates correctly. It restores proper cycle sequencing to help eliminate failures caused by a worn or damaged cam. What it does:

• Rotates and indexes internal cams/gears to control mechanical switching and timing
• Ensures correct sequencing of cycles and component engagement
• Commonly replaces noisy, stuck, or non-indexing cam assemblies
• Helps resolve symptoms like intermittent operation, failed cycle changes, or mechanical binding

• One generator (rotary cam assembly) as shown

• Disconnect power before servicing to avoid shock or injury
• Access may require panel removal and basic hand tools
• Verify alignment and timing marks during installation for proper operation

Replace your range's touch pad panel assembly if the control panel is cracked, damaged, or unresponsive. This cosmetic part covers the control interface.

If your range displays error codes, won't start cycles, or burners don't respond, this electronic control board restores normal operation. DIY-friendly repair.

Replace the main chassis frame for your electric range. This structural part supports internal components. Order a new frame if yours is cracked or damaged.

Round control knob for electric range burner or oven selection. Replaces worn, cracked, or missing knobs to restore grip and clear pointer marking.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Replacement trim panel for your range. Installs on the exterior to cover gaps or damaged areas. Order if your original panel is cracked or missing.

This is the induction generator module that powers an induction cooktop's heating element. It converts standard electrical current into the high-frequency electromagnetic energy needed to heat induction-compatible cookware. Replace this board if the cooktop burner fails to heat, heats intermittently, or displays error codes related to the induction circuit.

Cooktop won't heat or turn on? A blown thermal fuse is often the cause. This safety component protects against overheating. DIY-friendly repair.

Replacement wire harness for your range. This wiring assembly connects electrical components inside the appliance. Order a new harness if yours is damaged.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
