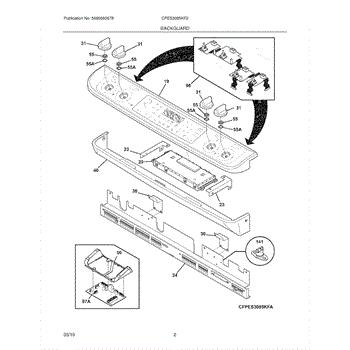

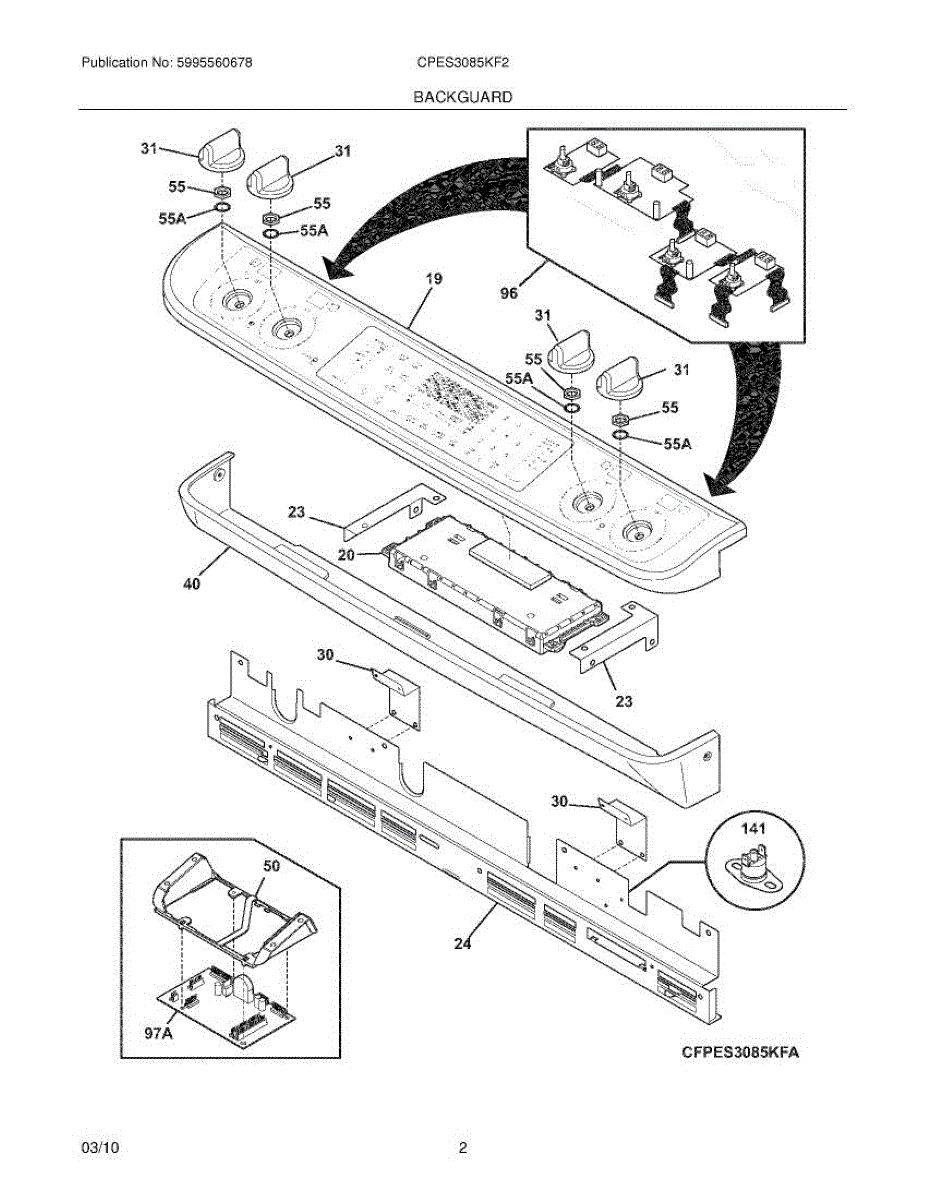

Parts for Frigidaire CPES3085KF2: 03 - Backguard Parts

This panel assembly is the appliance control console that gives you back access to your unit's buttons and display, restoring normal control and a clean appearance. It replaces a cracked, faded, or non-functional front console. What it does:

• Provides the user interface for selecting cycles, temperatures, and settings via buttons or touchpads.
• Restores response when buttons are worn, labels are illegible, or the console is physically damaged.
• Covers and protects internal controls and the display from spills and debris.
• Can resolve issues caused by a cracked or bent panel that interferes with button operation.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Handle the panel carefully to avoid damaging ribbon connectors, the display, or sharp edges.
• Align connectors and mounting tabs and secure fasteners per the service instructions for your model.

This control knob replaces a worn, broken or missing round oven/stove control knob to restore a positive grip and clear pointer for temperature or setting selection. It installs quickly to make controls easy to read and use. What it does:

• Fits onto a standard control shaft to select oven/cooktop settings
• Replaces a cracked, stripped, loose or missing knob that won't turn or hold a setting
• Restores the pointer/indicator for accurate temperature or function selection
• Provides a secure grip for smooth adjustment

• Disconnect power to the appliance before servicing for safety
• Pull off the old knob straight from the control shaft; some models may have a retaining clip—do not force
• Align the knob's spline/indicator with the shaft and push straight on until fully seated
• Test the control movement after installation; if knob does not fit, stop and verify shaft type

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This main control board is the electronic module that manages your appliance's functions and user inputs, restoring normal operation when the board has failed. It replaces the appliance's primary logic/control circuit to allow proper control of cycles and features. What it does

• Interprets control panel commands and runs the appliance's programmed cycles
• Manages timing, sensors, and power distribution to subsystems
• Can resolve symptoms like unresponsive controls, erratic operation, or failure to start when the board is the fault
• Works with door, temperature, and user-interface signals to coordinate appliance functions

• One main electronic control board

• Disconnect power before attempting replacement to avoid shock or damage
• Handle the board by edges and avoid touching circuits or components
• Verify connectors and mating harnesses are fully seated during reassembly

This wiring harness provides the factory-style electrical connections needed to restore secure, routed wiring between appliance components. It replaces a damaged or worn harness to help re-establish reliable circuit continuity. What it does

• Carries electrical signals and power between internal components to enable normal appliance operation
• Restores connection when cracked insulation, broken wires, or damaged terminals cause intermittent power or component failure
• Prevents shorts and erratic behavior by replacing chafed or corroded wiring
• Matches OEM connector types to ensure proper fit and secure mating with factory plugs

• Disconnect power (unplug appliance or shut off breaker) before starting any repair
• Compare new harness to the original to ensure connectors, length, and mounting points match
• Route harness along the original path and secure with existing clips or ties to avoid heat or abrasion

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
