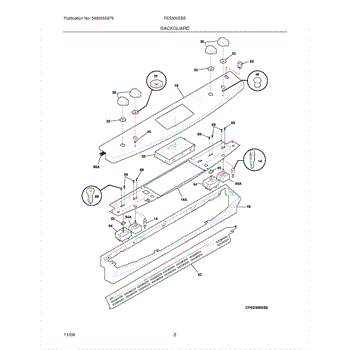

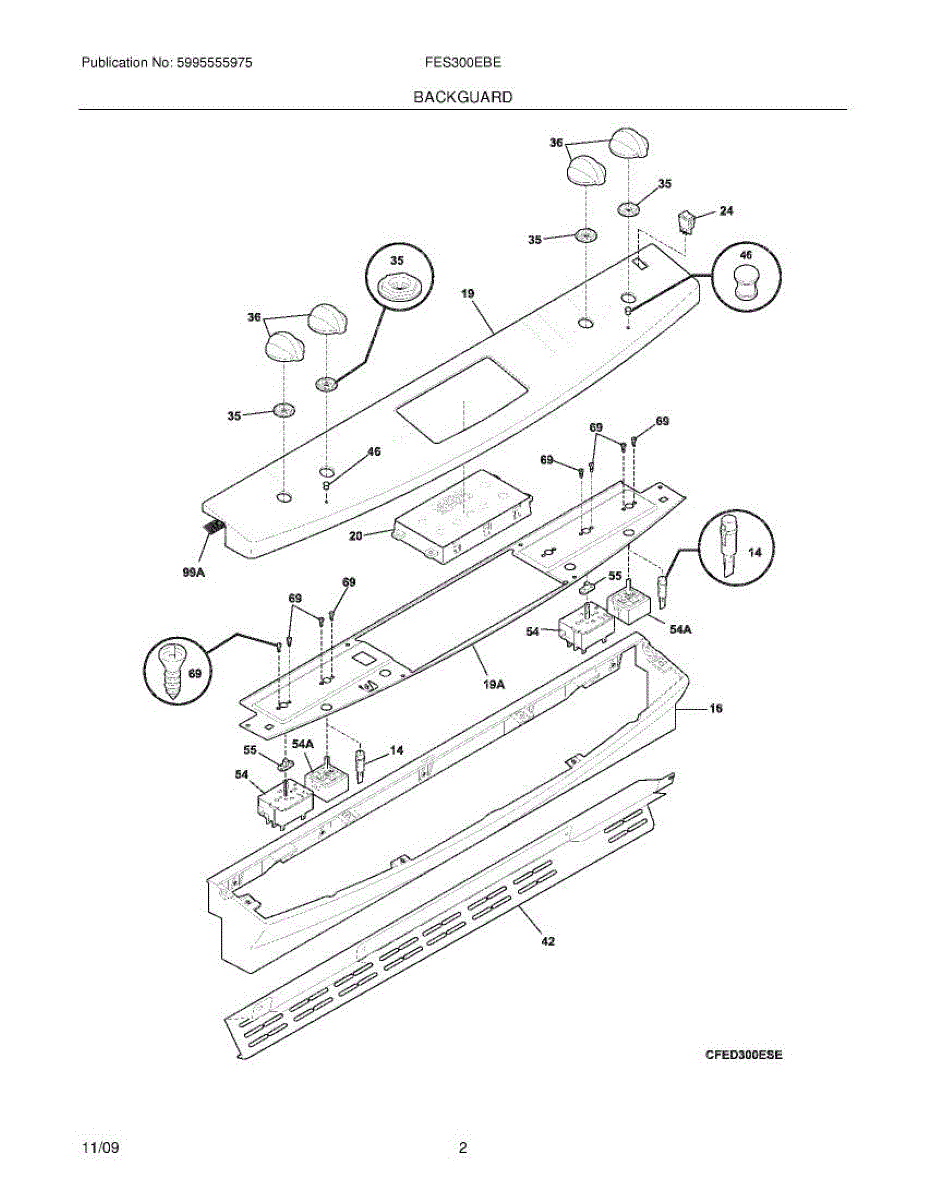

Parts for Frigidaire FES300EBE: 03 - Backguard Parts

This genuine OEM part is a clock timer for ovens. The clock timer is the part of the oven that allows the user to set a time for cooking and baking. If the timer buttons are no longer responding to touch or the timer's digital display is no longer visible, it will need to be replaced. Luckily, replacing a timer is a fairly simple repair.To get started, make sure the range is unplugged. Once unplugged, pull the range out and away from the wall to gain access to the upper back panel. Remove the mounting screws to the panel to gain access to the back of the control panel. Locate the timer and proceed to unthread the screws that hold it in place. Once loosened, pull the timer out of its place and install the new timer by threading the mounting screws that secure it to the control panel. Reinstall the upper back panel and restore power to the appliance.This replacement part is sold individually and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand ovens.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable on/off signaling for a specific circuit in your appliance, helping the intended function operate consistently and safely. It's a direct-fit part used in select cooking appliances where a mechanical/electrical switch is required. What it does:

• Opens and closes an electrical circuit when actuated to control a designated function (such as a light, interlock, or enable signal), per model design
• Helps the control system detect a condition (e.g., a door position) to allow or inhibit operation
• Resolves issues like a light that won't turn on/off, "door open" messages when closed, or functions that start/stop unexpectedly
• Replaces a worn, stuck, or intermittently failing switch that causes inconsistent operation

• One switch

• Disconnect power before servicing; this part carries live voltage during operation
• Access the switch at its mounting location
• Move wires one at a time from the old switch to the new to maintain correct terminal positions; ensure snug, clean connections
• Test function before reassembly to confirm proper actuation and operation

This replacement electrical switch restores dependable control of the selected function in your appliance, allowing you to turn the feature on and off reliably. Use it to replace a worn, unresponsive, or sticking switch for safe, consistent operation.

• Opens and closes the circuit to its assigned component when actuated
• Helps resolve a feature that won't turn on or won't shut off
• Addresses intermittent operation or a switch that feels loose, sticks, or shows heat damage
• Restores normal control response after internal switch failure

• Disconnect power at the breaker before servicing
• Access may require removing the control panel or backguard; take a photo and label wires
• Move one wire at a time from the old switch to the new to maintain correct connections
• Inspect terminals; replace any damaged spade connectors to ensure a secure fit

This bushing is a molded support sleeve that helps align and stabilize a rotating shaft, reducing wear and vibration for quieter, more reliable appliance operation. Designed as a direct-replacement service part. What it does:

• Supports and centers a rotating shaft or drum to prevent metal-on-metal contact
• Reduces vibration and noise caused by a worn bearing interface
• Protects housings and shafts from wear and scoring
• Helps restore proper rotation when the original bushing is worn or damaged

• Disconnect power before starting any repair to avoid shock or injury
• Inspect mating shaft and housing for wear; replace if damaged to prevent premature new-part failure
• Press or seat the bushing straight and fully; use proper tools to avoid distortion

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This wiring harness routes power and signals between the appliance's control and electrical components so controls, igniters, sensors or motors receive the correct connections. It replaces a worn or damaged factory harness to restore proper electrical routing. What it does:

• Provides the factory-style wiring connections between control boards, switches, sensors and actuators
• Restores lost or intermittent electrical connections that can cause controls or components to stop working
• Helps resolve symptoms such as intermittent power to components, no response from controls, or certain functions not activating
• Matches OEM connector types and wire lengths

• One replacement wiring harness

• Disconnect power to the appliance before starting work to avoid shock or injury
• Compare the replacement harness to the original for connector type, pin count and wire routing before installing
• Route and secure the harness away from heat sources and moving parts; use existing clips or ties where provided

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
