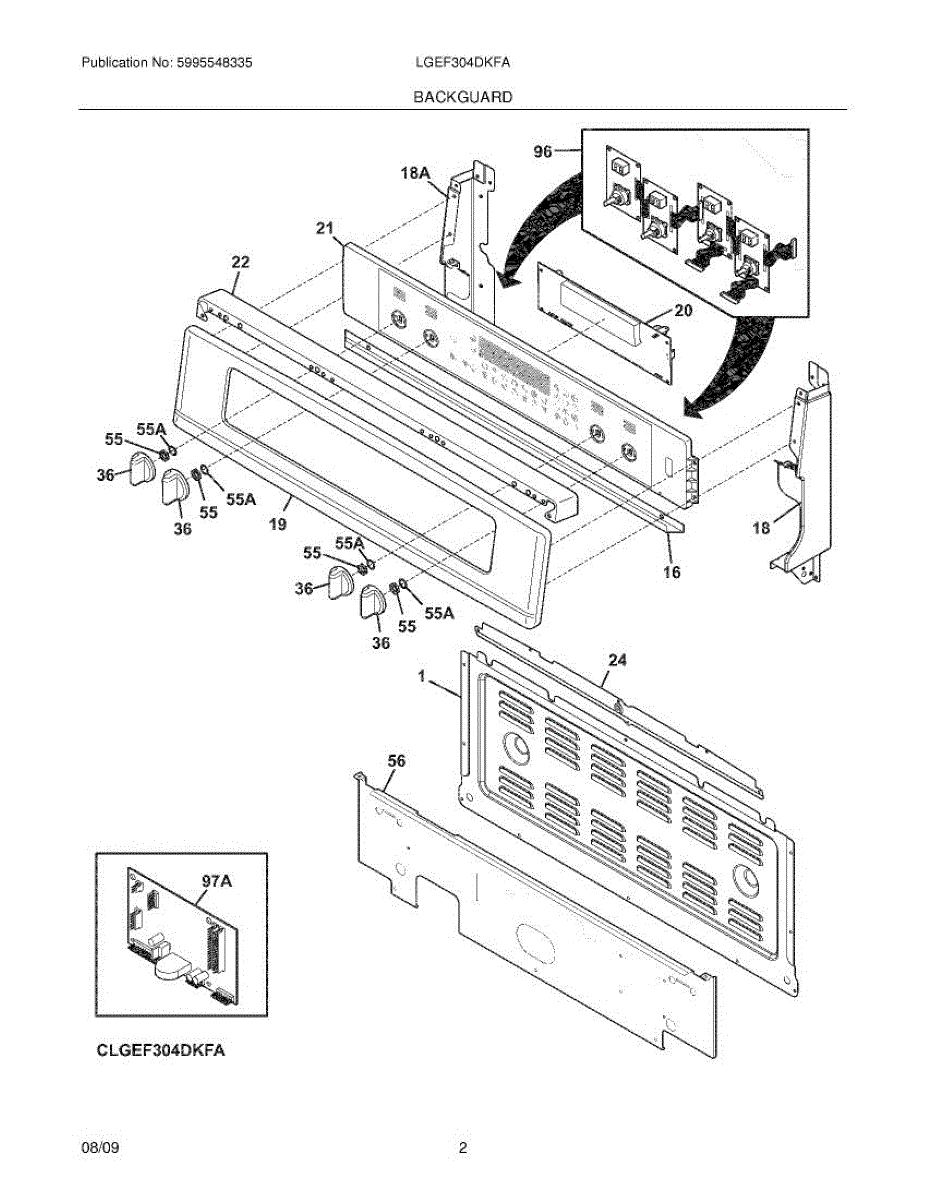

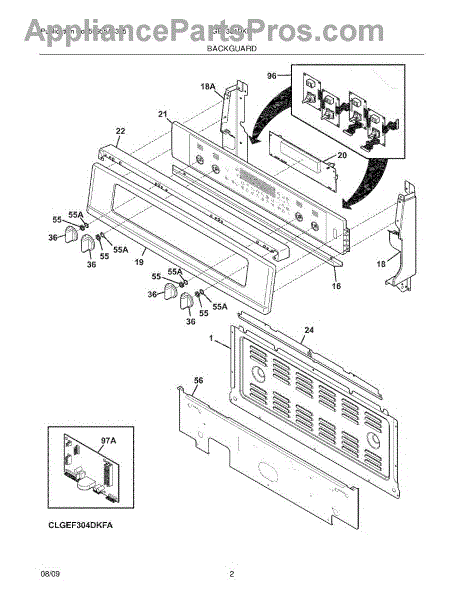

Parts for Frigidaire LGEF304DKFA: 03 - Backguard Parts

This electronic control is the appliance's main user interface and logic board that manages cycles, display functions, and timed operations, restoring normal control when the original board fails. What it does:

• Interprets user inputs from the console and runs appliance cycles
• Controls timers, displays, and other electronic functions
• Stops proper operation when the board fails, which can cause unresponsive buttons or blank/missing display
• Can resolve issues like intermittent operation, incorrect cycle behavior, or failure to start when faulty

• Disconnect power to the appliance before starting any work to avoid shock hazard
• Handle the board carefully; avoid touching circuit traces and connector pins
• Reconnect all wire harnesses in the same positions and secure mounting fasteners

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This mounting bracket secures internal components and panels to keep assemblies aligned and stable, helping restore proper fit and reduce vibration or rattling. Use this OEM replacement when a bracket is bent, broken, or missing. What it does:

• Secures and aligns appliance panels or internal components for proper fit
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability to loose or sagging assemblies after damage or wear
• Helps maintain correct spacing for connected parts so they operate smoothly

• Disconnect power and water before beginning any repair
• Use appropriate hand tools; handle edges carefully to avoid cuts
• Verify bracket orientation and fastener type from the service manual or parts diagram
• If mounting hardware is damaged or missing, replace with equivalent fasteners

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
