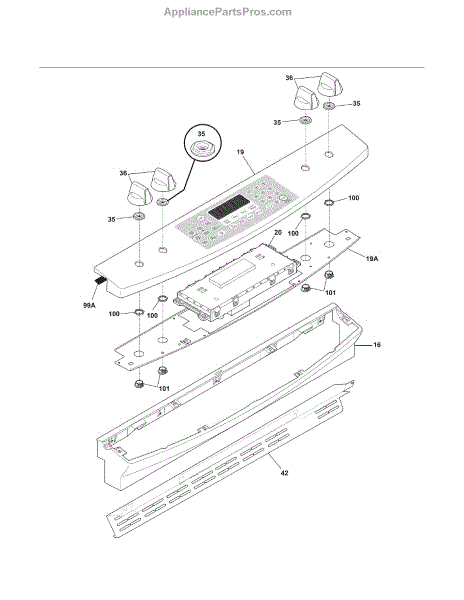

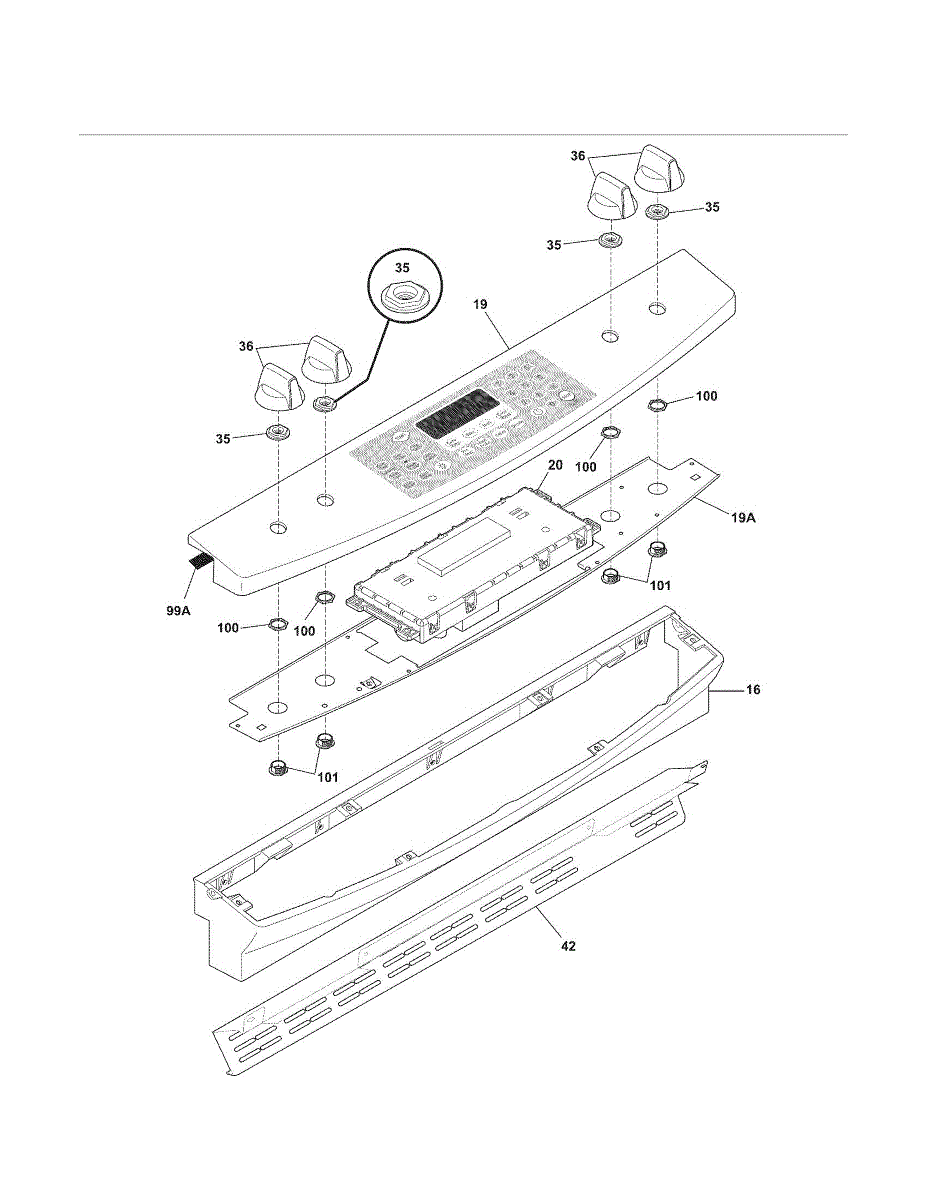

Parts for Kenmore 790.31032804 (79031032804, 790 31032804): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Small mounting clip that secures interior range components in place. Replace if cracked, broken, or missing to prevent parts from shifting or rattling.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This printed repair parts list is a parts-diagram reference that helps identify and locate replacement components for service and parts ordering. Keep it with the appliance for quick reference during repairs. What it does:

• Shows a visual parts breakdown and component locations for the appliance
• Lists part numbers used to confirm correct replacements before ordering
• Helps DIYers identify the part referenced on a repair
• Speeds up diagnosis by clarifying component names and positions

• This is a reference document only; it does not replace or repair appliance parts
• Keep with the appliance or service records for future maintenance and ordering
• Handle and store in a dry place to preserve readability

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical systems. Order now if yours is broken or worn.

Specs: 8 - 18 x 0.500

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
