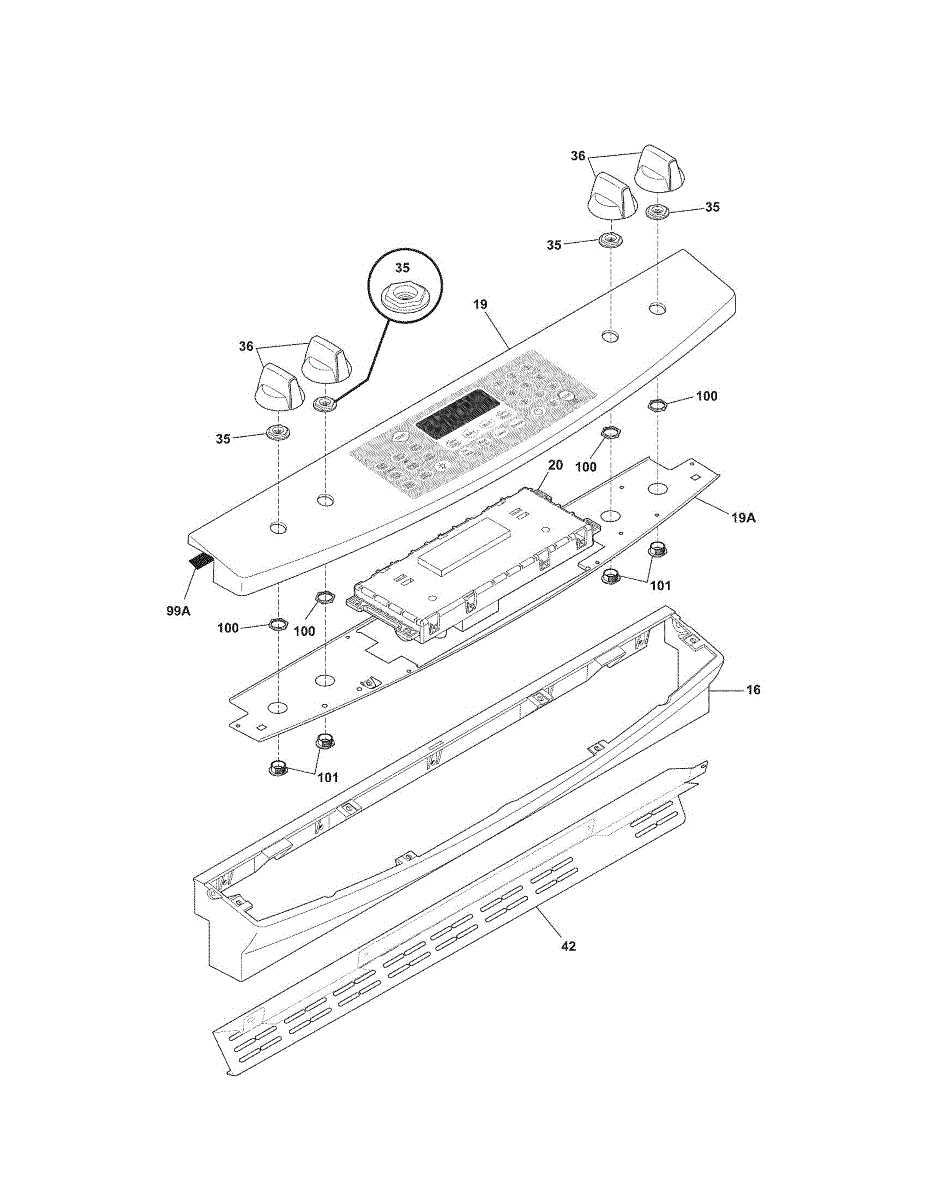

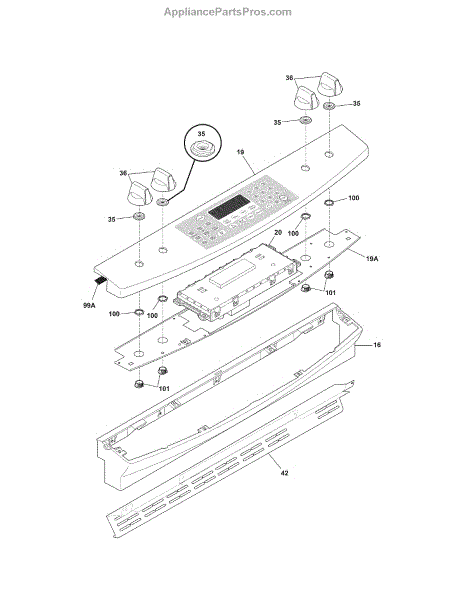

Parts for Kenmore 790.31033800 (79031033800, 790 31033800): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Replace a cracked, broken, or missing control knob on your range. This knob attaches to the control panel and allows you to adjust burner settings.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This repair parts list is the official service parts diagram used to identify replacement parts and their locations so you can order the correct components and plan repairs more efficiently. It helps clarify part names, numbers, and placement. What it does:

• Shows exploded diagrams and parts callouts to identify the exact replacement components.
• Makes it easier to match symptoms like missing, broken, or worn components to the correct part.
• Helps you confirm part quantity and location before ordering.
• Serves as a reference for service technicians and DIY repairs.

• This is documentation only; no electrical or mechanical installation is included.
• Use as a reference while appliance power is disconnected and unit is safe to access.
• Keep the document dry and store with other service literature for future use.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
