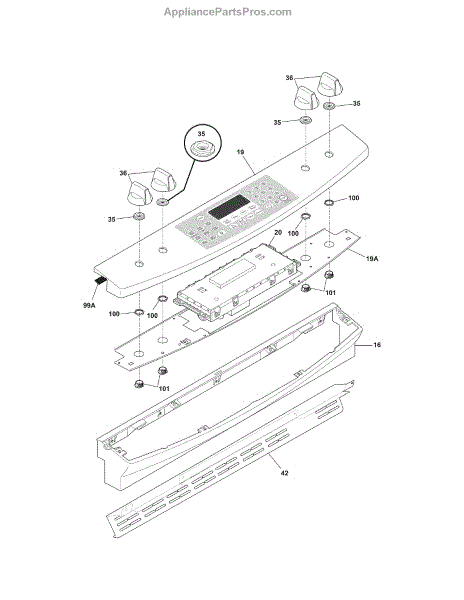

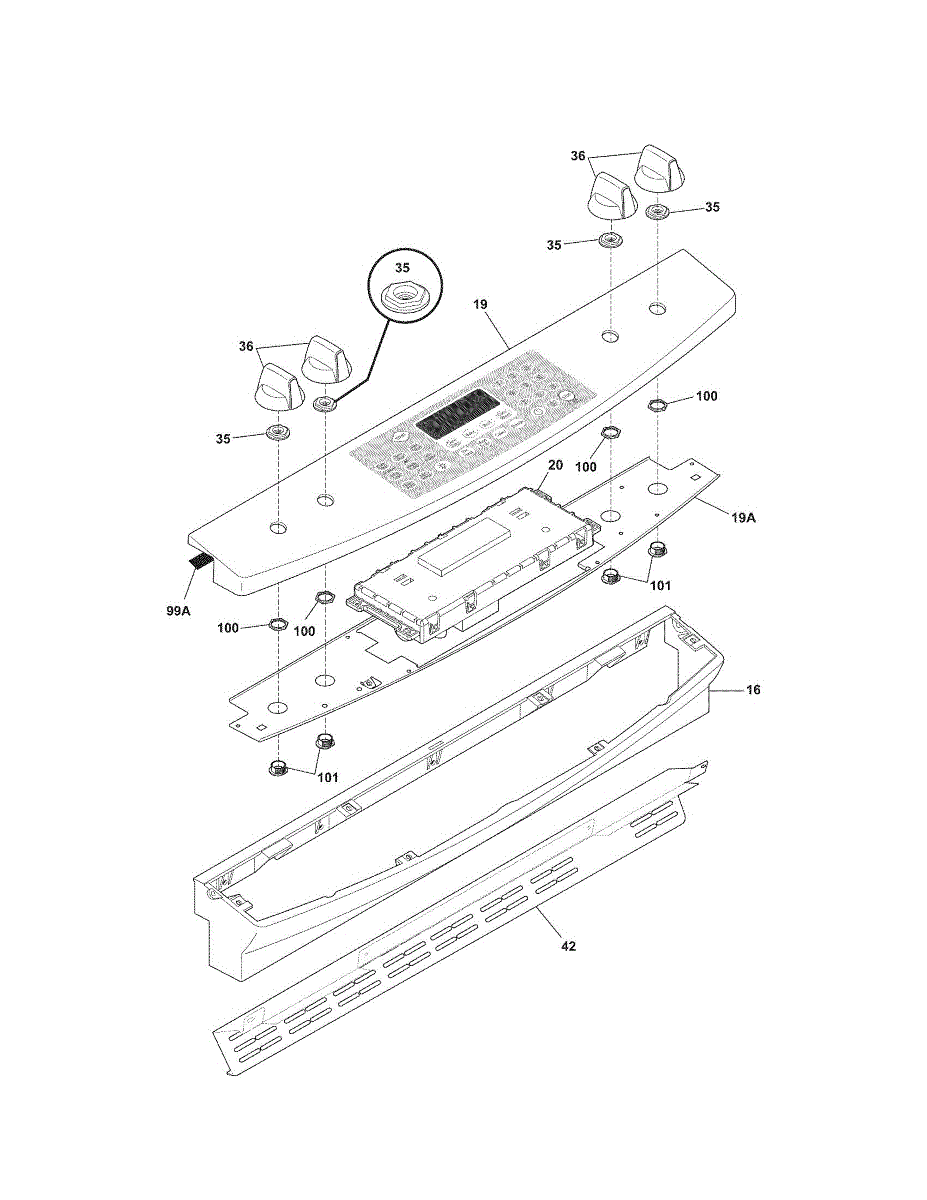

Parts for Kenmore 790.31033802 (79031033802, 790 31033802): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

This electronic circuit board controls all oven functions including temperature regulation, timing, and cooking modes. It processes input from the control panel and manages heating elements to maintain precise temperatures. If your oven won't heat up, shows error messages, or cooking functions don't work correctly, this control board may need replacement.

Replace a cracked, broken, or missing control knob on your range. This knob attaches to the control panel and allows you to adjust burner settings.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This repair parts list is a compact parts diagram and reference used to identify service parts and part numbers for technicians and DIYers. It helps the correct replacement parts before ordering and repair. What it does:

• Shows exploded diagrams and component reference numbers to locate parts
• Lists part names and reference numbers to simplify ordering
• Serves as a visual aid during troubleshooting and parts replacement

• No tools required to use; this is a reference document for identifying parts
• Always disconnect power (and gas, if applicable) to the appliance before servicing
• Keep the document with your service records for future reference

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical systems. Order now if yours is broken or worn.

Specs: 8 - 18 x 0.500

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
