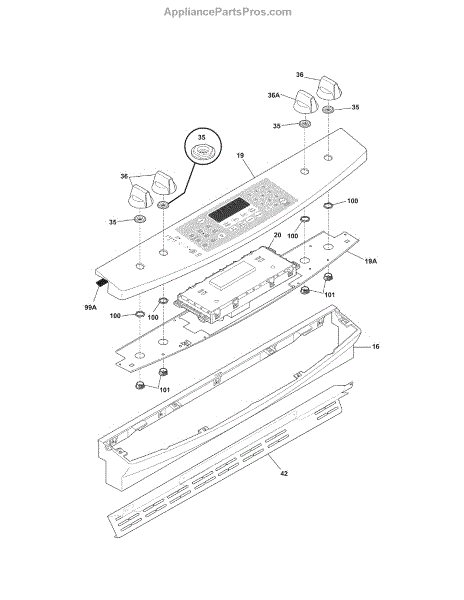

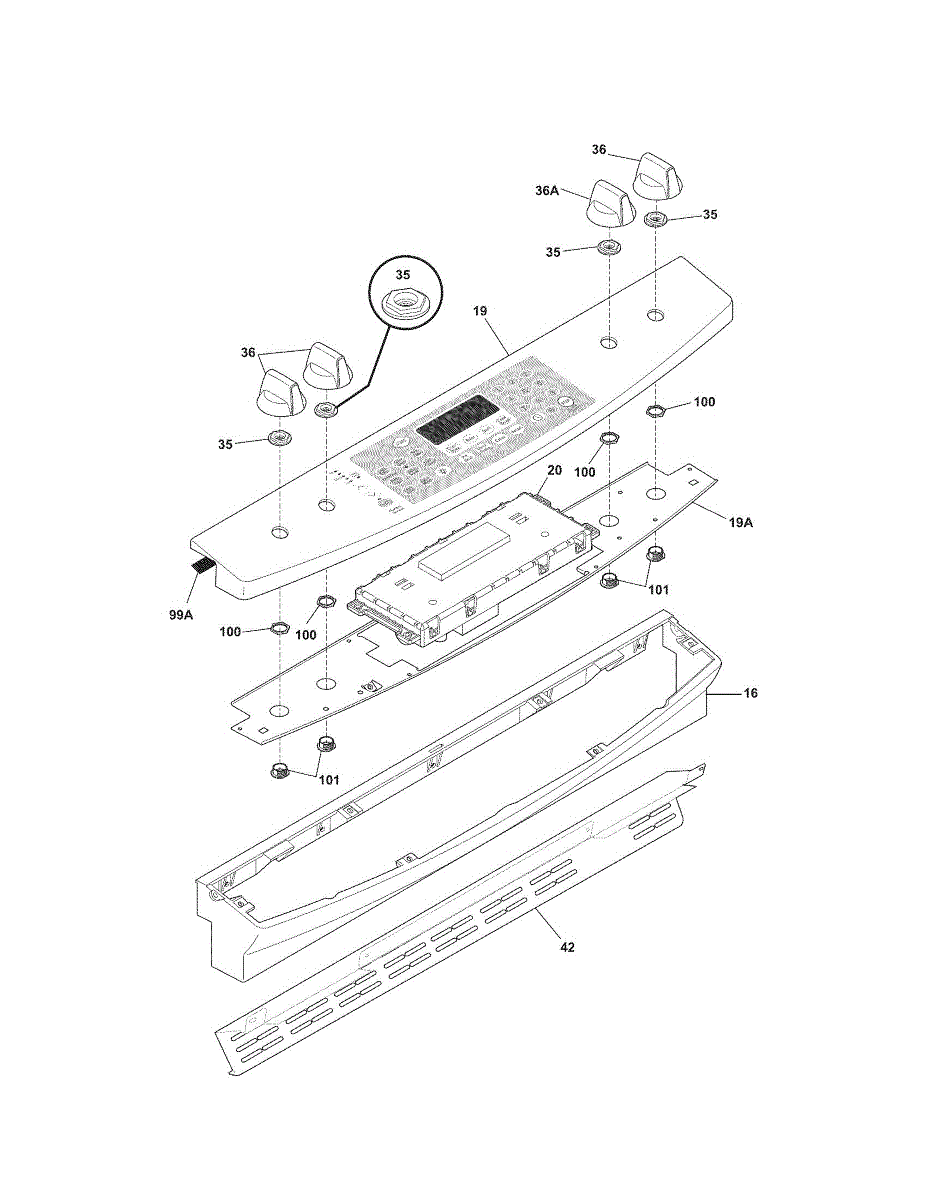

Parts for Kenmore 790.31049805 (79031049805, 790 31049805): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Replacement control panel touch pad for your range. Installs on the front control area. Order when your existing panel is cracked, broken, or unresponsive.

Small mounting clip that secures interior range components in place. Replace if cracked, broken, or missing to prevent parts from shifting or rattling.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This repair parts list is a printed parts diagram and reference sheet that helps identify replacement parts and part numbers for service and ordering. Use it to identify components before repair or parts purchase. What it does:

• Shows exploded diagrams and listed part numbers for the appliance's assemblies
• Helps you identify the exact replacement parts to order
• Assists DIYers in planning repairs and understanding component placement
• Useful when referencing parts in service manuals or parts catalogs

• This is a reference document, not a mechanical or electrical replacement part
• Keep the sheet with the appliance or service records for future reference
• Handle and store flat to avoid tears; replace if missing or illegible
• If you need parts, use the part numbers shown to order the correct items

Specs: 8 - 18 x 0.500

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
