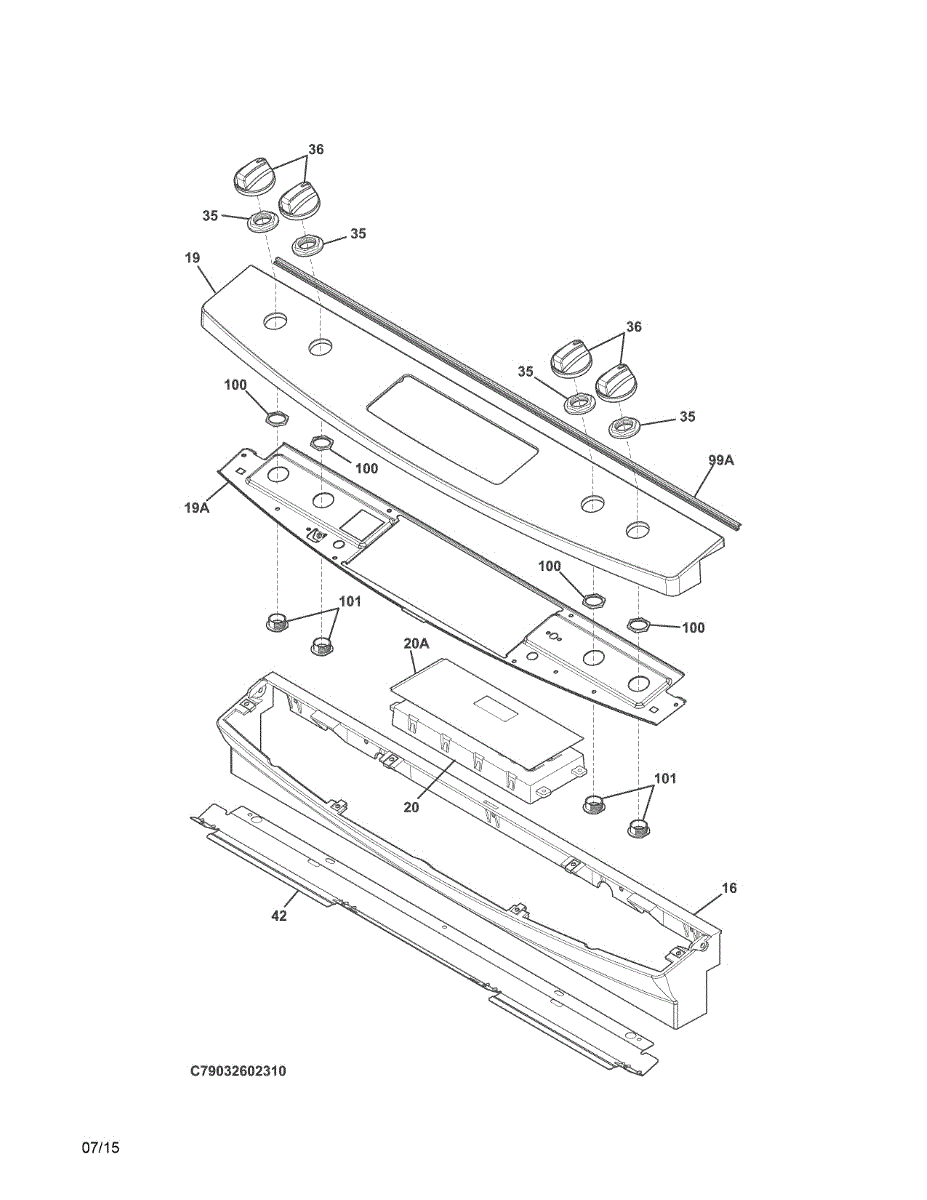

Parts for Kenmore 790.32609314 (79032609314, 790 32609314): Backguard Parts

This control console is the outer housing that holds and protects the appliance's control buttons and display, restoring a clean, functional front surface and securing the control components. What it does:

• Covers and supports the control board, buttons and display for normal operation
• Restores a finished appearance when the original console is cracked, broken or cosmetically damaged
• Helps keep moisture, dust and debris away from controls to reduce malfunctions
• Provides the mounting surface for knobs, switches and electronic controls

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Handle carefully to avoid scratching the finish and protect any attached wiring or trim
• Typical install requires removing the top or front trim and transferring controls or hardware as needed
• Keep all screws and clips; use the same hardware or OEM replacements for secure fit

This control panel assembly houses the oven/range user interface and controls, restoring button access and display functions so you can select cycles, set temperatures and run timed operations with a working console. What it does:

• Provides the front user interface for oven/range functions, including touchpads/buttons and display
• Transmits commands from the user to the range control board for bake, broil, timers and settings
• Failsafe symptom language: commonly replaced when buttons are unresponsive, the display is blank or control inputs do not register
• Designed as a direct-replacement assembly to restore normal control operation when the console is defective

• Disconnect power at the breaker or unplug the appliance before removing or installing the panel
• Handle the display and keypad gently to avoid damaging the lens or connectors
• Verify connector seating and routing during reassembly; do not force connectors

This control panel assembly is the appliance's user interface console that houses the touchpads, display, and control electronics so you can select cycles and see status information. Replace a damaged or unresponsive console to restore normal control and display functions. What it does:

• Provides the front user interface: buttons/touchpads and display for selecting settings
• Houses the control electronics that send commands to the appliance
• Fixes symptoms like non-working or stuck buttons, blank or flickering display, or intermittent control response
• Enables proper communication between the user controls and the appliance control board

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the panel and display components carefully to avoid scratching or damaging buttons/overlay
• Support wiring harnesses and connectors when removing or installing to prevent pin damage
• Reconnect all harnesses and test control operation before fully reassembling the appliance

The Controller is an OEM part for Frigidaire ranges. It controls and regulates the various functions of the oven, including temperature settings, timer, and cooking modes.

A bad oven controller can be caused by electrical issues, component failure, or software malfunctions. Signs of a faulty controller include inaccurate temperature readings, unresponsive buttons or display, or the oven not heating properly.

Symptoms of a bad oven controller include:

• Inaccurate temperature readings
• Unresponsive buttons or display
• The oven not heating or failing to start

Replace your faulty or damaged oven controller with this genuine OEM Frigidaire part to restore your range. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Replace a worn or peeling console label with this control panel overlay. It restores clear, readable graphics on the user interface so settings are easy to see and select, keeping operation straightforward and professional-looking.

• Provides printed legends/graphics for the control panel or touchpad
• Bonds to the panel surface to refresh worn, faded, or damaged markings
• Common symptoms: peeling or bubbling film, cracking/tearing, faded or missing text, hard-to-read controls
• Helps shield the underlying keypad area from light spills and wear

• Disconnect power to the appliance before servicing
• Remove the control panel/escutcheon as needed to access the overlay area
• Carefully peel off the old overlay; clean any adhesive residue and let the surface dry
• Align and apply the new overlay without stretching; press evenly to ensure full adhesion, then reassemble

This overlay is the graphic label for the appliance's control panel. It restores clear button legends and a clean finish, replacing a worn, peeling, or damaged original so the controls are easy to read and use.

• Provides printed button labels and indicator marks for the user interface
• Helps shield the underlying touchpad/control board area from everyday wear
• Replace if text has worn off, film is peeling or bubbling, edges are cracked, or surface is sticky/discolored
• Common after replacing a touchpad/control panel, when graphics must match the new assembly

• Disconnect power before servicing to prevent accidental operation or shock
• Remove the control panel and old overlay; clean and dry the mounting surface
• Align the new overlay with buttons/indicators and apply evenly without wrinkles
• Reassemble and test the controls for proper operation

This retainer is a small mounting clip that secures interior components so they stay in place and operate quietly. Replacing a worn or broken retainer restores proper fit and prevents parts from shifting or rattling. What it does:

• Secures shelves, panels or trim to the appliance cabinet to maintain correct alignment
• Prevents interior parts from shifting, rubbing or producing vibration noise
• Helps keep seals and trim seated properly to maintain a tight fit
• Commonly replaced when clips are cracked, missing or fail to hold components

• One retainer clip as pictured

• Disconnect power before servicing to avoid shock or injury
• Remove only the panels or shelves necessary to access the damaged retainer
• Install clip in the original orientation; retained component sits flush and is secure
• Use basic hand tools as needed

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
