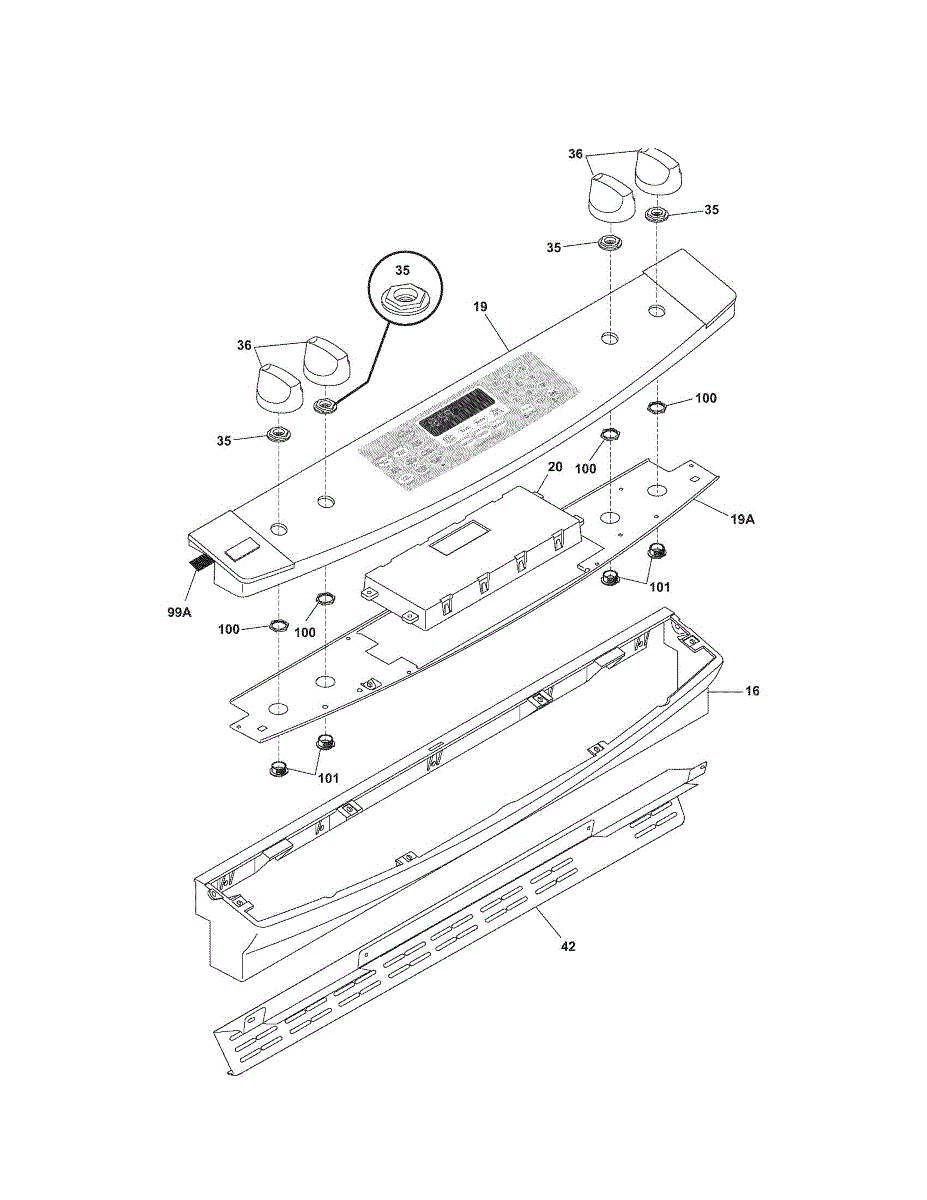

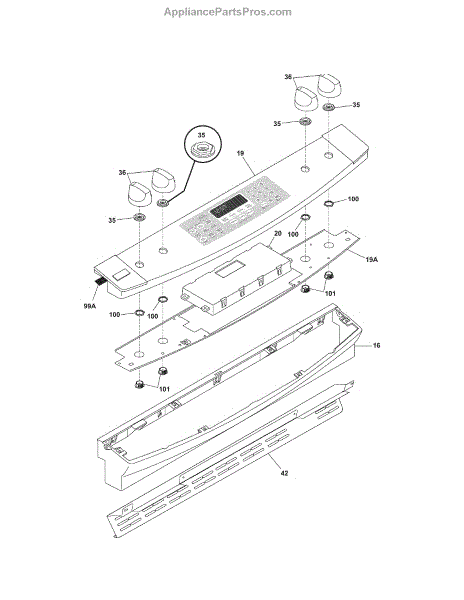

Parts for Kenmore 790.36603602 (79036603602, 790 36603602): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This is the repair parts list — a printed parts diagram and itemized parts list used to identify components for service and ordering. It helps you locate part numbers and understand where parts fit on the appliance. What it does:

• Shows exploded diagrams and item numbers for the appliance
• Lists OEM part numbers and quantities for each item on the diagram
• Helps identify the correct replacement parts
• Speeds parts lookup and reduces ordering mistakes
• Useful reference when planning repairs or speaking with parts support

• This is a reference document, not a hardware component; no installation required
• Keep the document dry and store with your appliance records for future service
• Always disconnect power and follow safety procedures before servicing the appliance
• If a physical parts list is damaged or missing, obtain a replacement or download the appropriate IPL/manual from the manufacturer

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
