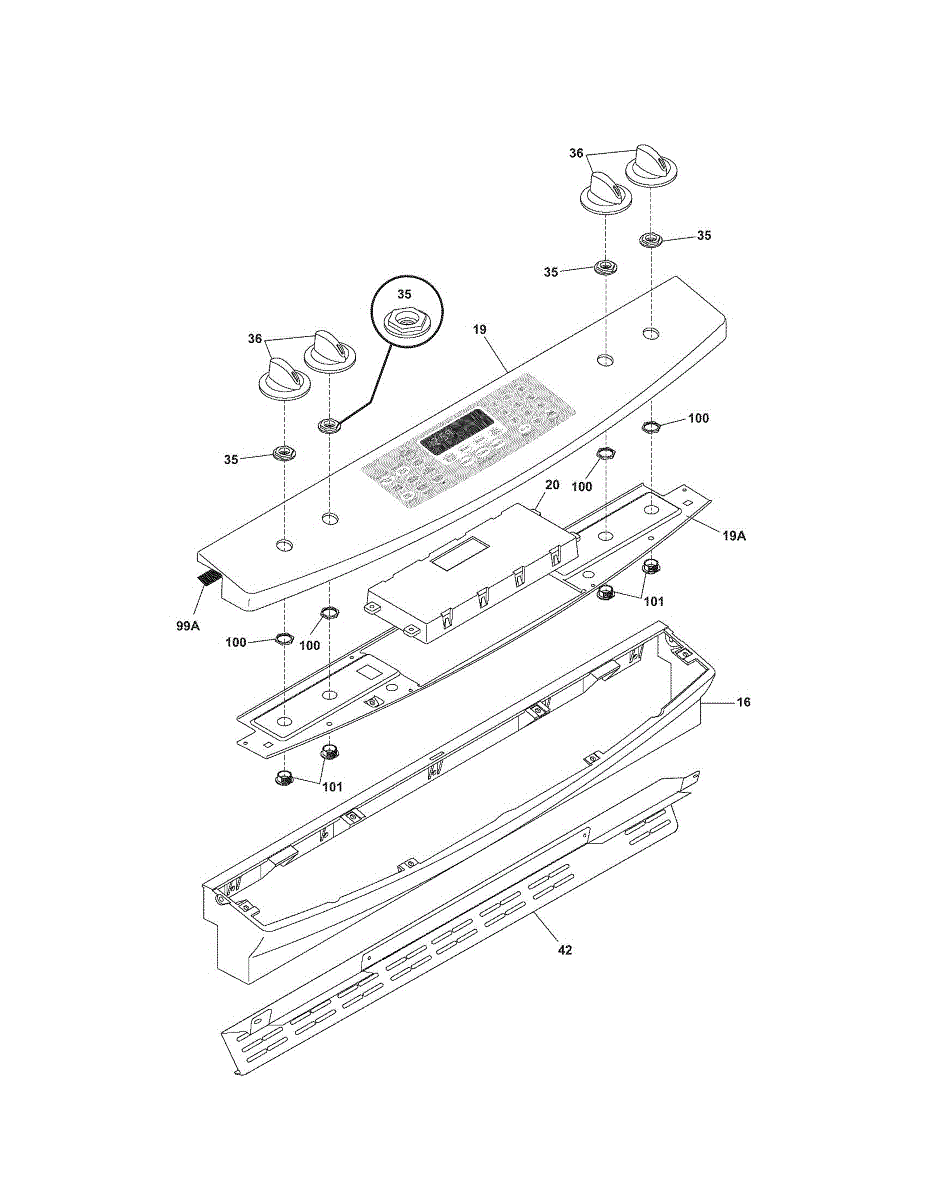

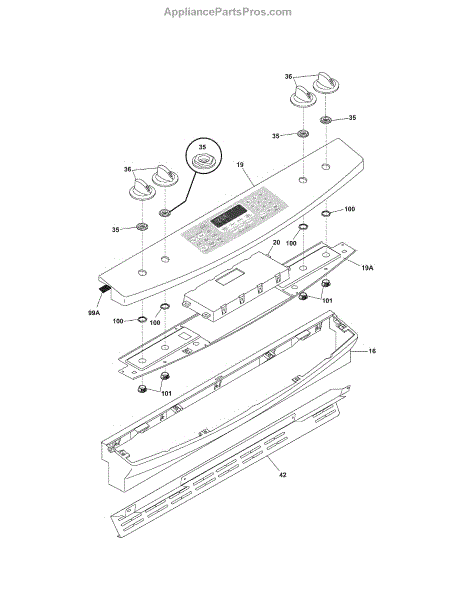

Parts for Kenmore 790.36693502 (79036693502, 790 36693502): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This printed wiring diagram provides the electrical schematic for the appliance to help identify wiring, connectors, and component relationships while servicing. Use it as a reference to trace circuits and correct connections before repairs. What it does

• Shows the appliance's electrical wiring layout and circuit paths in a clear schematic format
• Identifies wire colors, connector locations, and component terminals for troubleshooting
• Helps locate splices, fuses, and safety devices that affect circuit continuity
• Useful for diagnosing intermittent electrical faults and correct reconnections after service

• One printed wiring diagram/schematic as shown

• This is a reference document—follow the schematic while the appliance is powered off and unplugged
• Always disconnect power before touching wiring or components; use proper lockout/tagout where applicable
• Keep the diagram dry and store with appliance documentation for future service
• If wiring has been altered or damaged, replace or repair wiring per OEM instructions rather than relying solely on the diagram

Specs: 8 - 18 x 0.500

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
