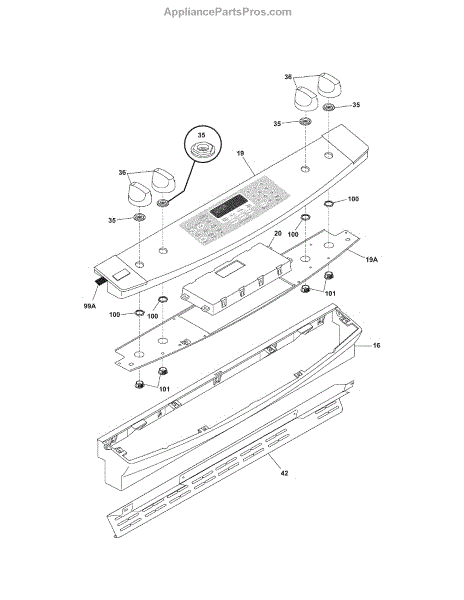

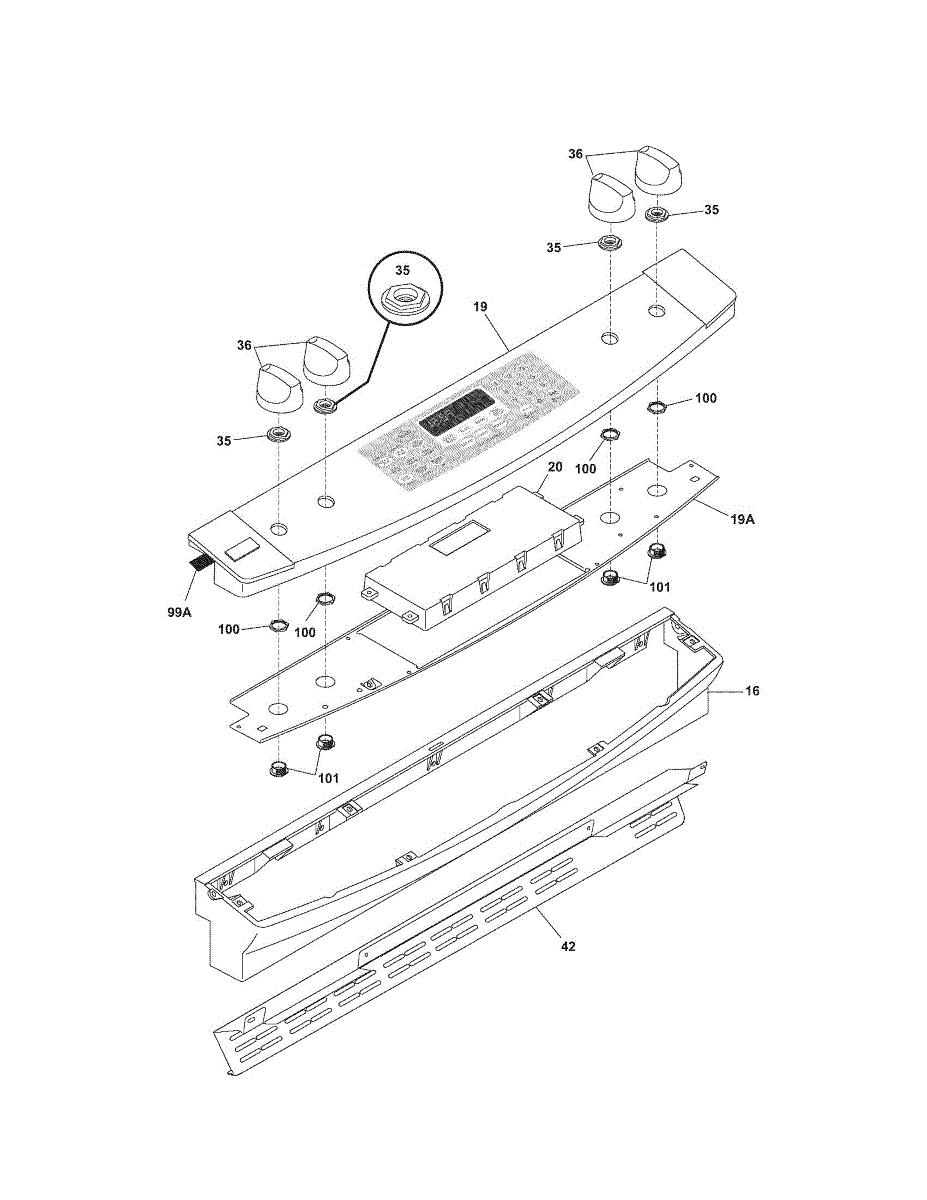

Parts for Kenmore 790.36713500 (79036713500, 790 36713500): Backguard Parts

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the control panel to operate burners or oven settings.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

A replacement wiring diagram sheet that shows the electrical schematic and component locations to help identify circuits and connections for troubleshooting and repair. Useful for technicians and DIYers needing the factory wiring layout. What it does:

• Provides the factory electrical schematic for the appliance so you can trace circuits and connections.
• Helps identify wire colors, terminal designations and component interconnections.
• Aids diagnosis of electrical failures and verifies correct wiring after repairs.
• Clarifies control and power routing to prevent mis-wiring during reassembly.

• One wiring diagram schematic sheet.

• Typically fast to reference—no special tools required to view; keep dry and protected from grease.
• Use the diagram for guidance only; always confirm power is disconnected before testing or touching wiring.
• If replacing a printed diagram, position it where it won't interfere with moving parts or airflow.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
