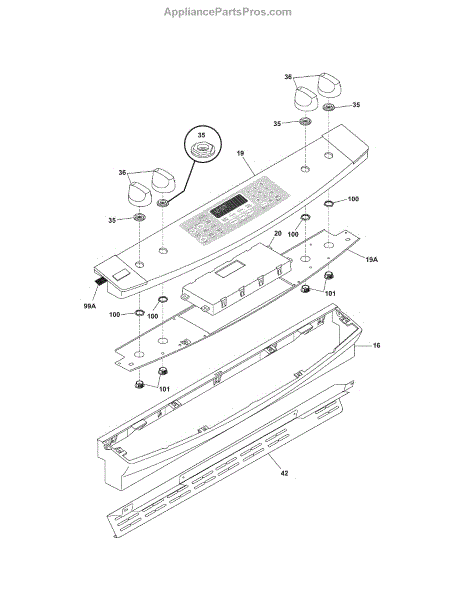

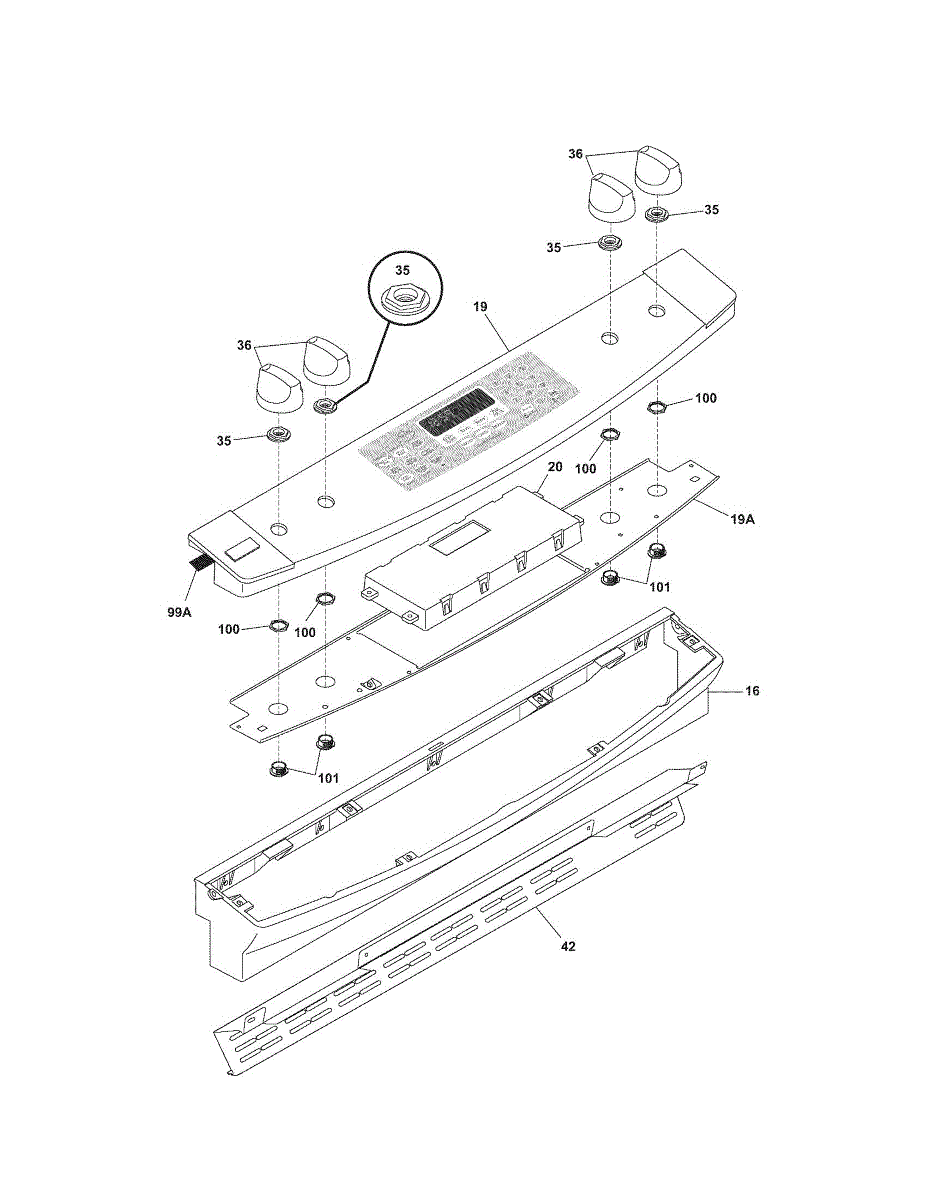

Parts for Kenmore 790.36713503 (79036713503, 790 36713503): Backguard Parts

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the control panel to operate burners or oven settings.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This printed repair parts list provides the appliance's illustrated parts breakdown so technicians and DIYers can identify components and order correct replacements. It helps part locations and part numbers before making repairs. What it does:

• Shows exploded views and part callouts to locate components quickly
• Lists OEM part numbers and common assembly names for accurate ordering
• Helps diagnose which replacement part matches a failed component
• Useful reference for planning repairs and needed parts

• One printed repair parts list sheet

• This is a reference document; no installation required
• Keep the sheet dry and stored with other appliance paperwork
• Use alongside the appliance service manual or schematic for repair steps

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
