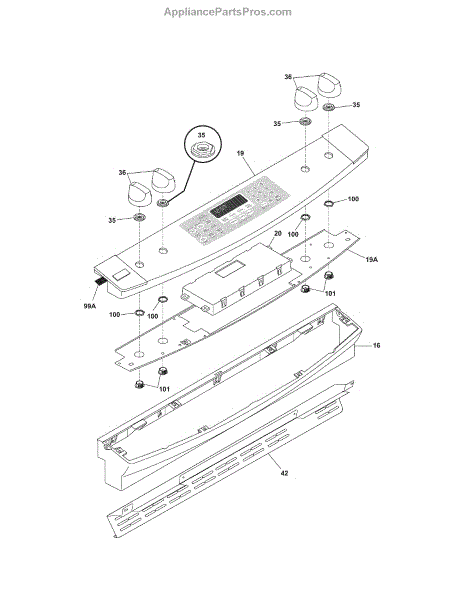

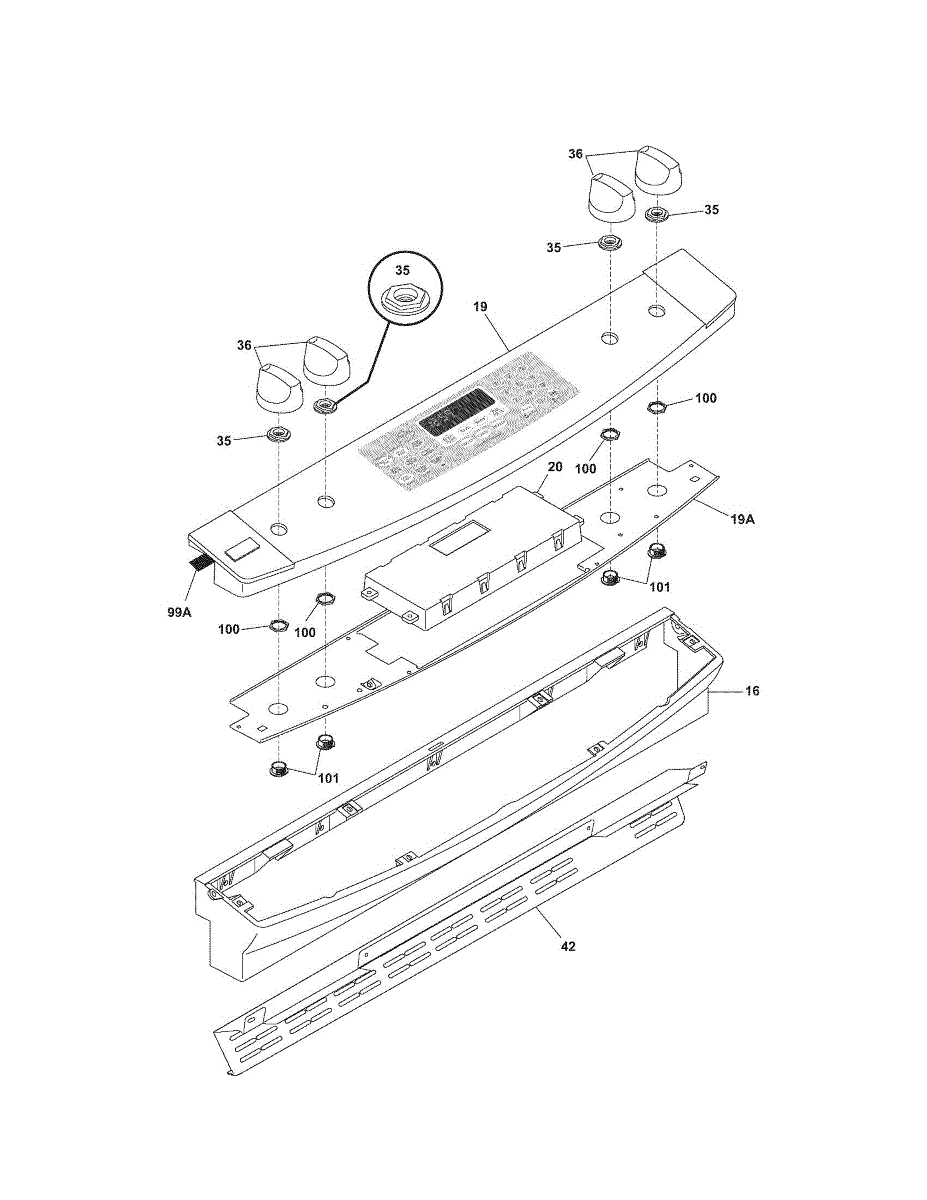

Parts for Kenmore 790.36723602 (79036723602, 790 36723602): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This printed repair parts list provides the factory parts diagram and part number references to help identify replacement components for service and ordering. Useful for technicians and owners. What it does:

• Shows exploded diagrams and part numbers for the appliance
• Helps identify and match failed or missing components before ordering
• Clarifies part locations and assembly relationships for repairs
• Serves as a reference during troubleshooting and parts replacement

• No electrical or mechanical installation required; this is an informational document.
• Keep dry and undamaged; store with the appliance manual or service records.
• Use the part numbers shown to order replacement parts from your supplier.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
