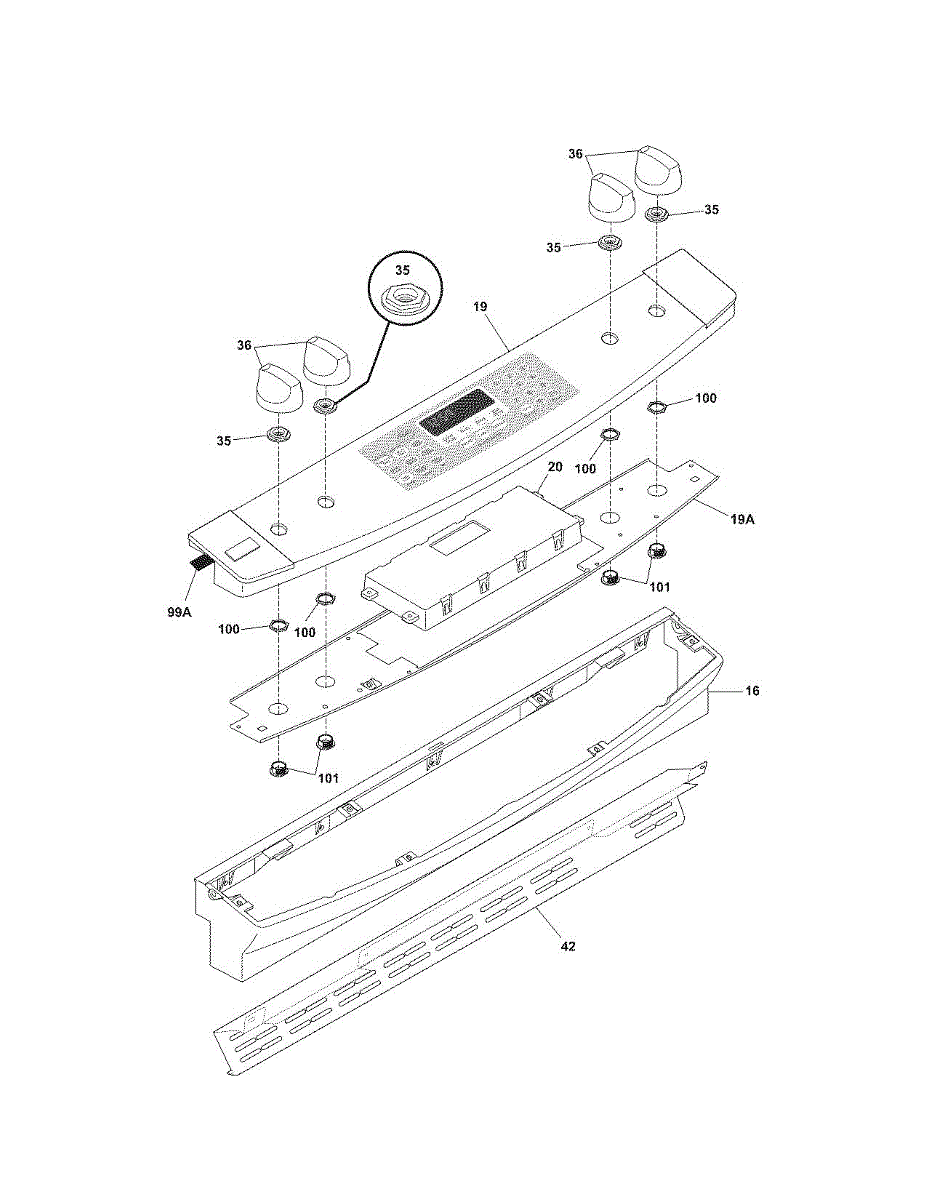

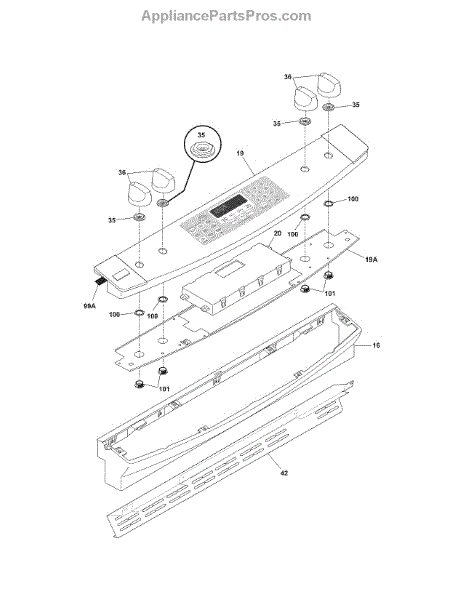

Parts for Kenmore 790.36723604 (79036723604, 790 36723604): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This is the service repair parts list — a printable parts diagram that shows the appliance's exploded view and OEM part numbers to help identify and order the correct replacement parts. Useful for troubleshooting and planning repairs. What it does:

• Shows an exploded diagram to visually locate components
• Lists OEM part numbers and reference keys for accurate ordering
• Reduces guesswork when diagnosing common symptoms like no power, leaks, or mechanical noise
• Intended as a reference for technicians and informed DIYers

• This is a documentation item only; it does not include physical replacement parts or hardware.
• Verify the appliance model number matches the diagram before ordering parts.
• When using the parts list to perform repairs, always disconnect power and water supply first.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
