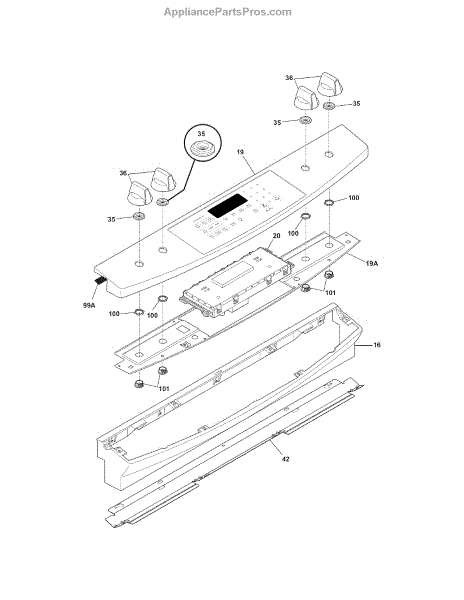

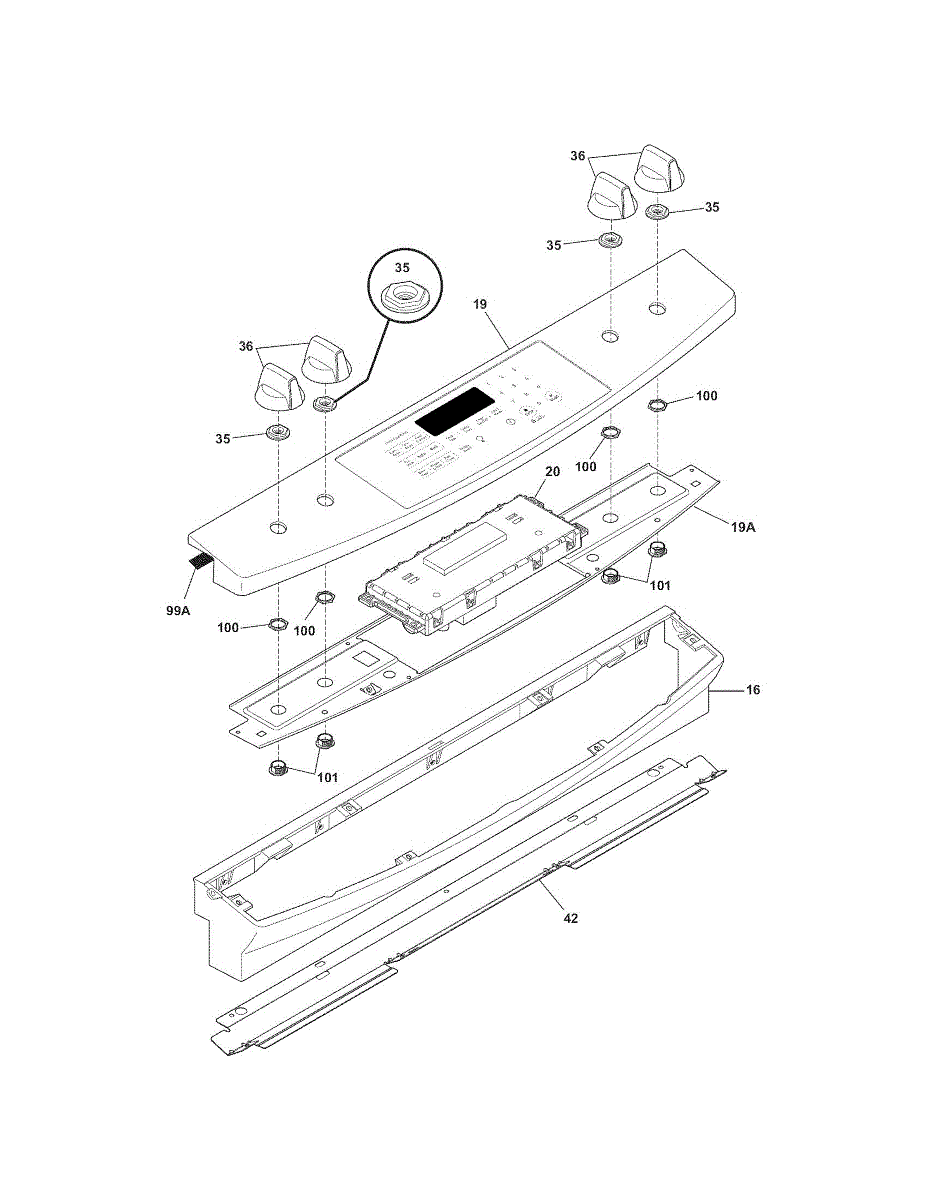

Parts for Kenmore 790.36903902 (79036903902, 790 36903902): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Fix a range that won't heat, has a blank display, or shows error codes with this control board. Common repair for unresponsive oven controls and timers.

Replace your range's control knob if it's cracked, broken, or missing. This knob attaches to the control panel and lets you adjust burner settings.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

This repair parts list is a printed parts diagram and reference sheet that identifies service parts and locations for the appliance—helpful for locating the correct replacement parts before ordering or repair. What it does:

• Shows exploded diagram callouts and part names to identify components
• Reduces ordering errors by confirming part location and quantity
• Assists technicians and DIYers when planning repairs

• One printed repair parts list / parts diagram sheet

• This is a reference document; no installation hardware included
• Use the diagram to confirm part fit and PN before beginning repairs
• Keep the sheet dry and flat to preserve print legibility

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
