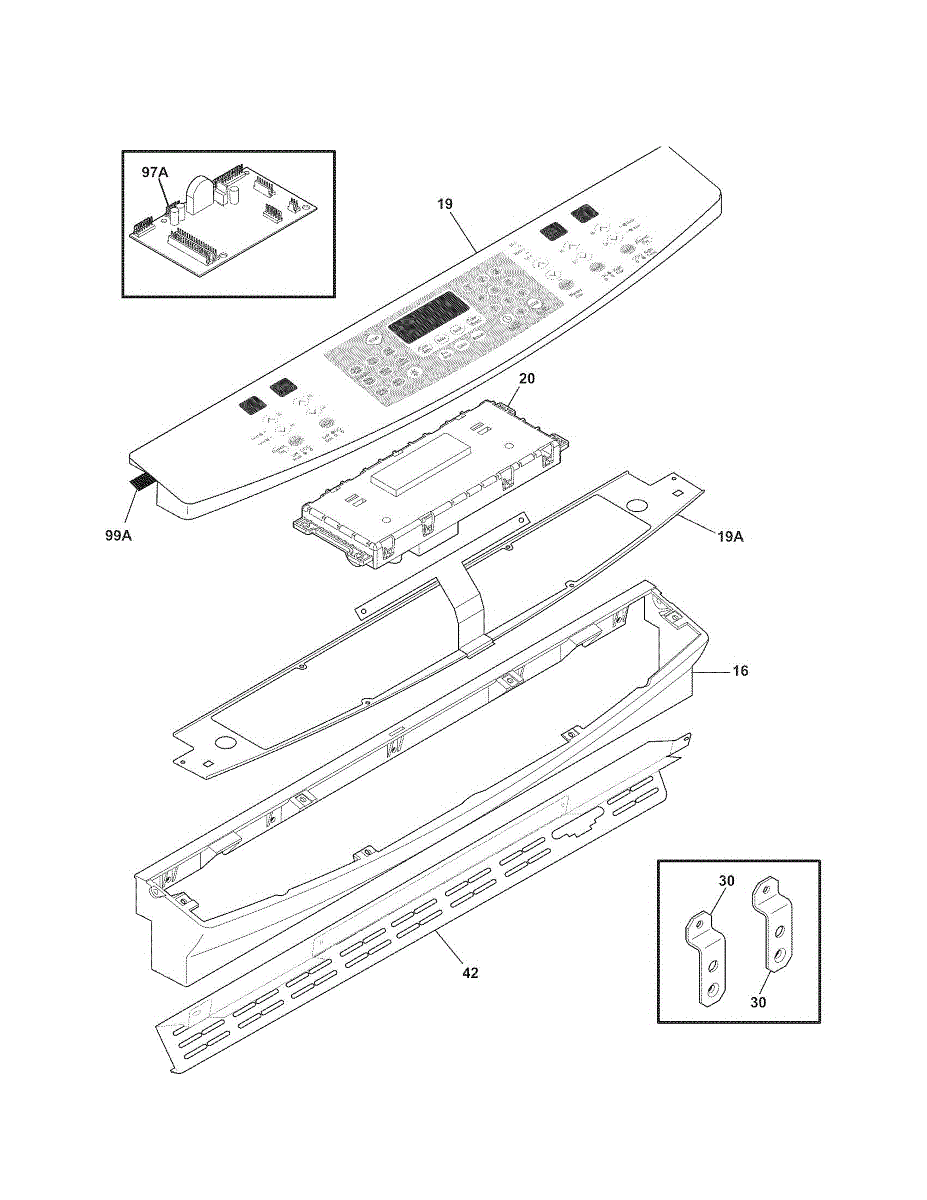

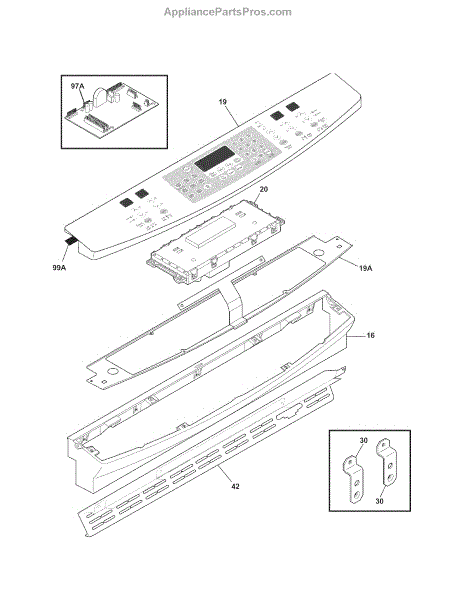

Parts for Kenmore 790.41019801 (79041019801, 790 41019801): Backguard Parts

Replace your range's cracked or worn touch pad control panel. This cosmetic part installs on the front console to restore the appearance and function.

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

This control board manages all oven functions including temperature regulation, cooking modes, and timer operations. It processes input from control knobs and displays, then sends commands to heating elements and other components. Replace it if your oven won't heat, temperature is inaccurate, or control displays are malfunctioning.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This paper repair parts list provides the official exploded diagrams and part references used to identify replacement components and order correct parts. It helps technicians and owners part names and locations before repair. What it does:

• Shows exploded views and OEM part reference numbers to aid parts identification
• Clarifies component names and relative placement so you order the right replacement
• Helps diagnose which component to inspect when the appliance shows common symptoms (no power, mechanical noise, leaks)
• Serves as a quick reference during disassembly and reassembly to avoid errors

• This item is a paper reference; no tools or fasteners are required for use
• Keep with the appliance manual or service records for future repairs
• Replace if torn, stained, or illegible to ensure accurate part identification
• For safety-related repairs, always disconnect power

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
