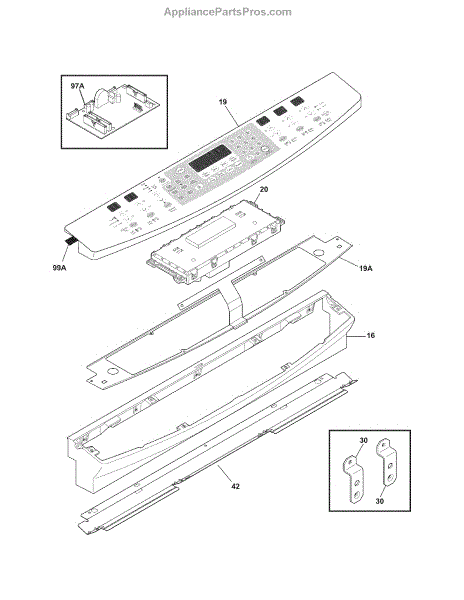

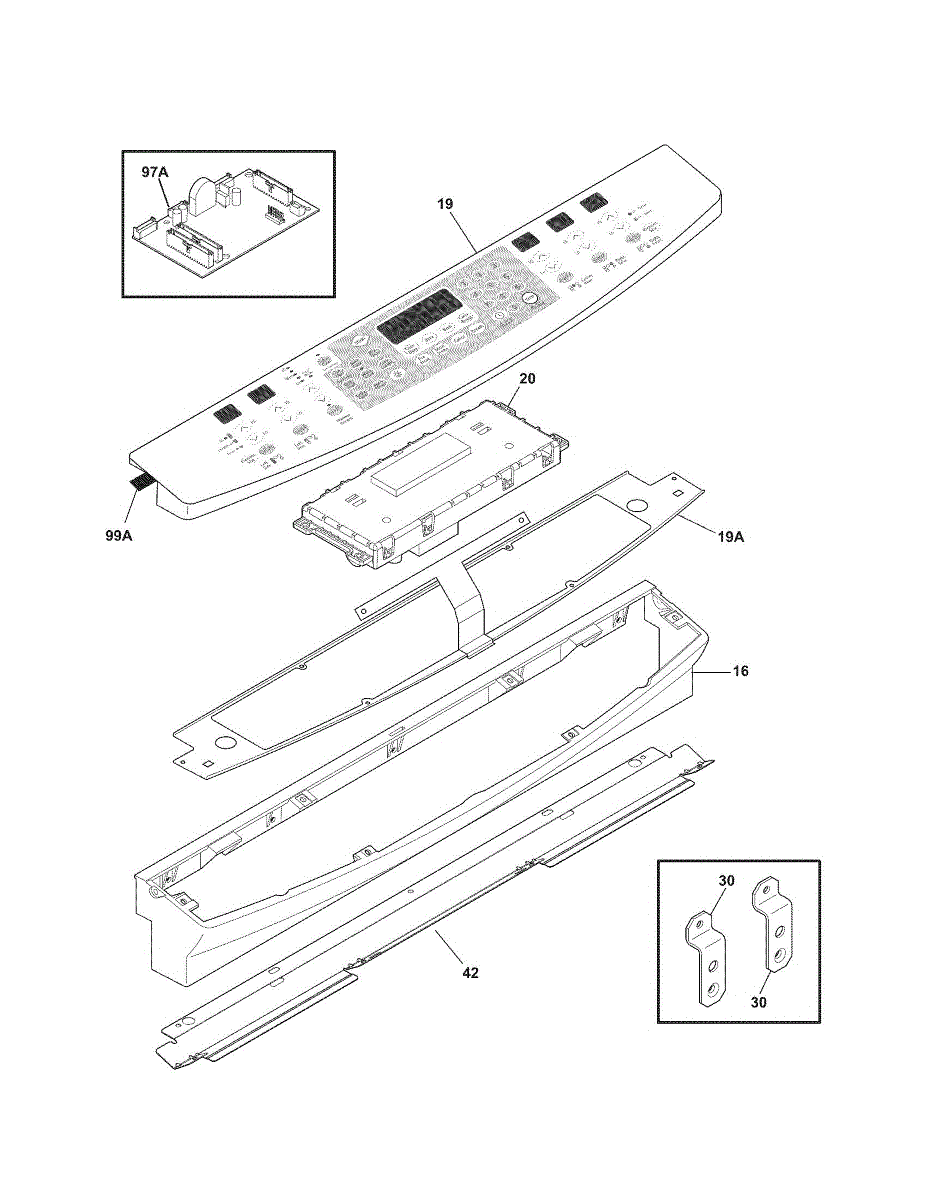

Parts for Kenmore 790.41019803 (79041019803, 790 41019803): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

This control board manages all oven functions including temperature regulation, cooking modes, and timer operations. It processes input from control knobs and displays, then sends commands to heating elements and other components. Replace it if your oven won't heat, temperature is inaccurate, or control displays are malfunctioning.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This repair parts list is a printed parts diagram and reference sheet that helps you identify replacement components and their item numbers for service. Use it to confirm the correct parts before ordering and repair. What it does:

• Shows exploded diagrams and item callouts to identify specific parts
• Lists part item numbers so you can match replacements accurately
• Helps diagnose which component relates to common symptoms like no power, no cooling, or mechanical failures (symptom linkage varies by model)
• Reduces ordering errors by clarifying component location and quantity on assemblies

• This is a reference document only—no installation hardware is included
• Keep the sheet with your service records for future reference

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
