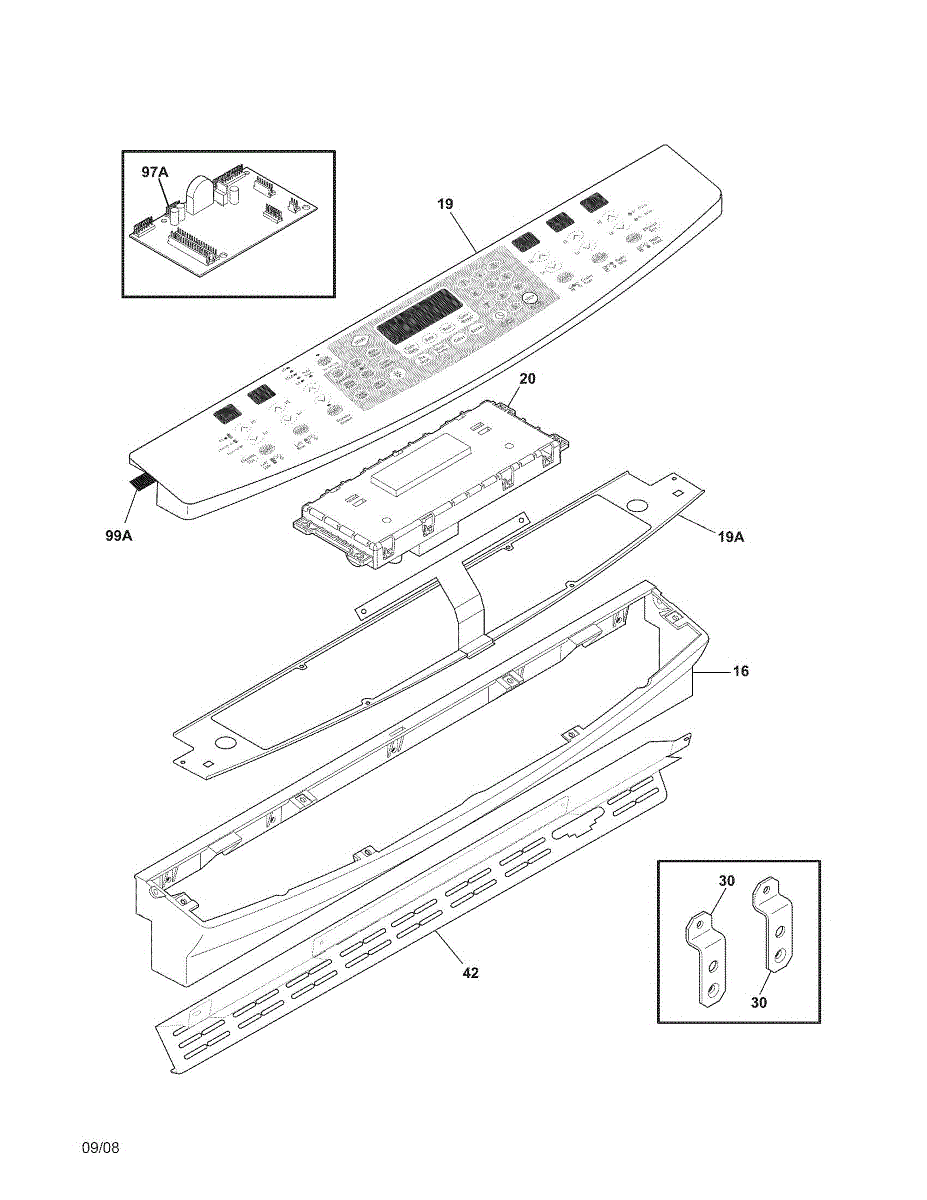

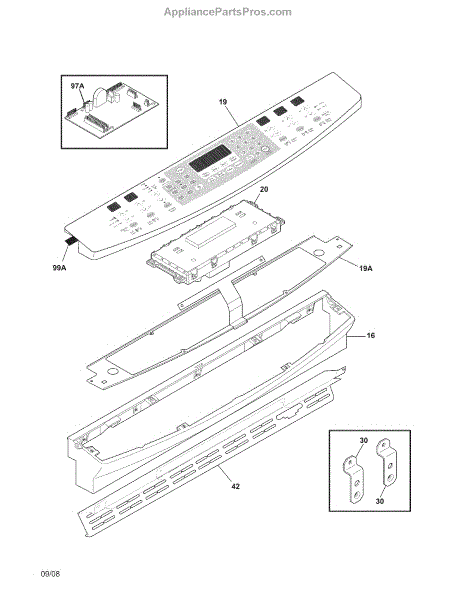

Parts for Kenmore 790.41022800 (79041022800, 790 41022800): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

The main circuit board that controls all electronic functions of the range, including heating elements, timers, and display features. Replace when the range becomes unresponsive, displays error codes, or cooking elements won't activate properly.

The main circuit board that controls all electronic functions of the range, including heating elements, timers, and display features. Replace when the range becomes unresponsive, displays error codes, or cooking elements won't activate properly.

Fix a range that won't heat, has a blank display, or shows error codes with this control board. Moderate difficulty repair taking 30-45 minutes.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This printed repair parts list identifies the major components and part numbers for the appliance, helping owners locate and order the correct replacement parts. It's a convenient reference to streamline service and repairs. What it does:

• Lists service part names and part numbers as used by the manufacturer
• Helps identify the correct replacement part for common failure symptoms
• Speeds up ordering by showing exact part references
• Serves as a quick-reference during disassembly and troubleshooting

• One printed repair parts list

• No mechanical installation required; keep with appliance documentation or service kit
• Use as a reference before ordering or attempting repairs
• Replace only if the original is missing or damaged

Wiring diagram for your range showing electrical connections and circuit layout. Helpful for troubleshooting or repairs when original is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
