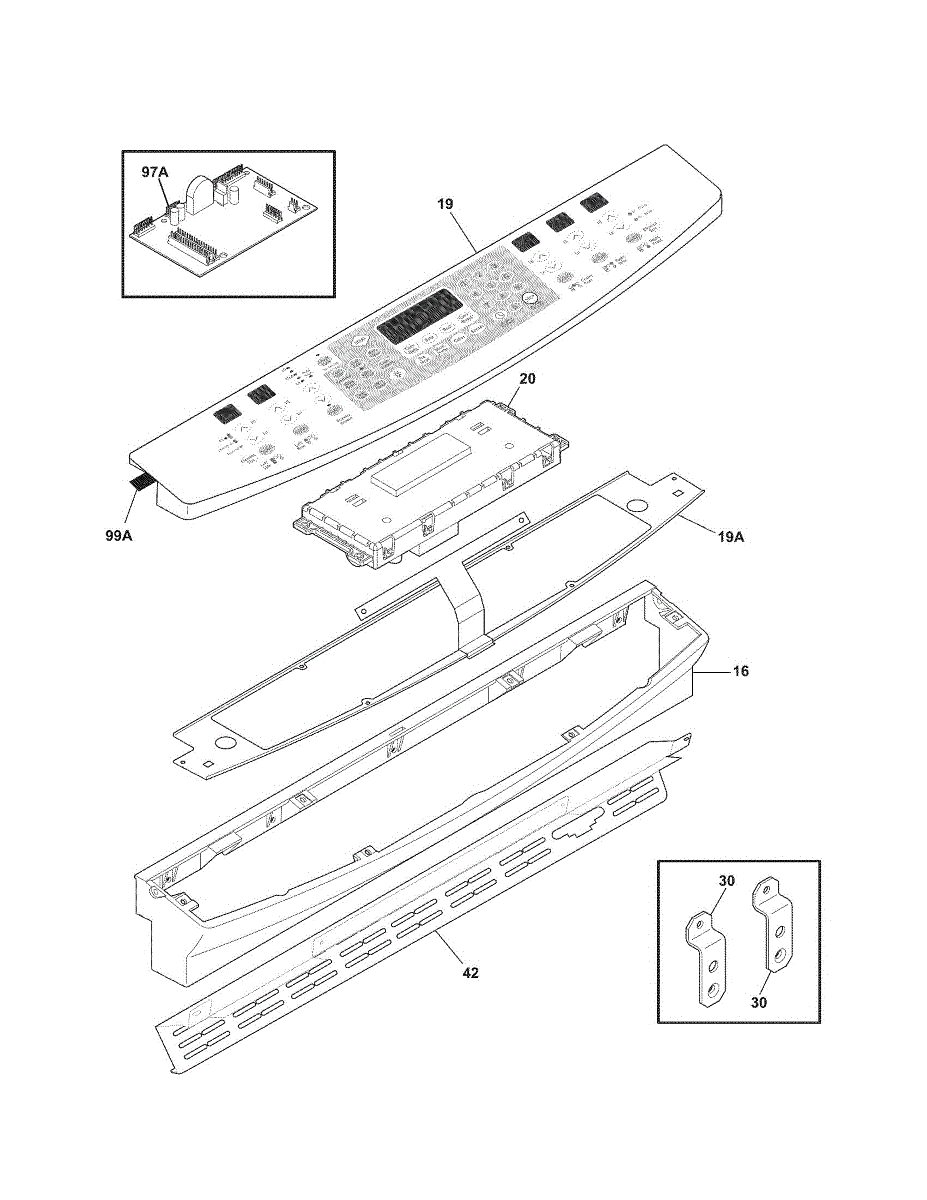

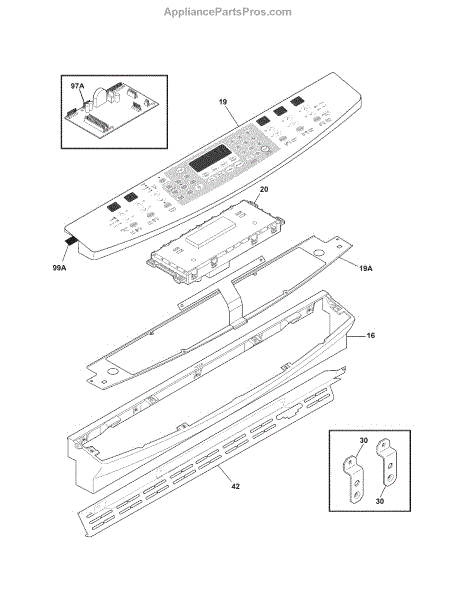

Parts for Kenmore 790.41023801 (79041023801, 790 41023801): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

The main circuit board that controls all electronic functions of the range, including heating elements, timers, and display features. Replace when the range becomes unresponsive, displays error codes, or cooking elements won't activate properly.

Fix a range that won't heat, has a blank display, or shows error codes with this control board. Moderate difficulty repair taking 30-45 minutes.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

A thin decorative side trim that restores the finished edge and appearance of your appliance door or cabinet. Replaces damaged or missing trim to give a clean, factory-look finish. What it does

• Covers and protects the exposed side edge of the door or cabinet for a neater appearance
• Hides gaps and rough edges caused by chipped or worn trim
• Helps maintain consistent styling with the cabinet/door surface
• Common replacement for cracked, bent, or missing side trim

• Disconnect power to the appliance before starting any repair
• Remove any retaining screws or clips and gently pry off the old trim
• Align the new trim and press or fasten into place using the original hardware
• Use caution handling sharp edges.

Side trim kit for ranges. Installs along the side edges to provide a finished appearance. Replace if cracked, broken, or missing for a complete look.

Side trim kit for ranges. Installs along the side edges to provide a finished appearance. Replace if cracked, broken, or missing for a complete look.

This panel end replaces a damaged or worn trim piece on the outer control/front panel to restore a finished appearance and help protect the panel edge from further damage. Fits as a single replacement end cap. What it does

• Replaces a cracked, chipped or missing panel end to restore the appliance's finished look
• Covers and protects the exposed edge of the control/front panel from dirt and damage
• Helps keep the panel aligned and reduces gaps that can catch on clothing or hands
• Matches the original mounting points for a clean, factory-style fit

• One panel end

• Minor disassembly of the control/front panel may be required
• Power off and unplug the appliance before starting any repairs
• Use appropriate trim tools to avoid scratching surrounding surfaces
• If clips or fasteners are damaged, replace them with OEM parts for proper fit

This repair parts list is a printed parts diagram and reference sheet that helps you identify service parts and part numbers for repair planning and ordering. It's useful for locating the exact components shown in appliance breakdowns. What it does:

• Shows exploded diagrams and OEM part numbers for quick identification
• Helps match the right replacement parts to symptom or failed component
• Speeds ordering by listing part reference numbers used in service literature
• Useful for techs and DIYers to plan repairs and needed parts

• One repair parts list / parts diagram sheet

• This is a reference document, not a replacement hardware part
• Keep the sheet with your service records for future reference
• Handle printed materials carefully to avoid rips or smudging that could obscure part numbers

Wiring diagram for your range showing electrical connections and circuit layout. Helpful for troubleshooting or repairs when original is lost or damaged.

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
