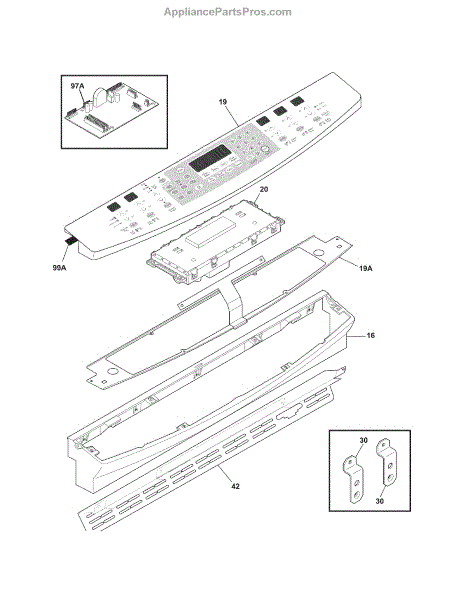

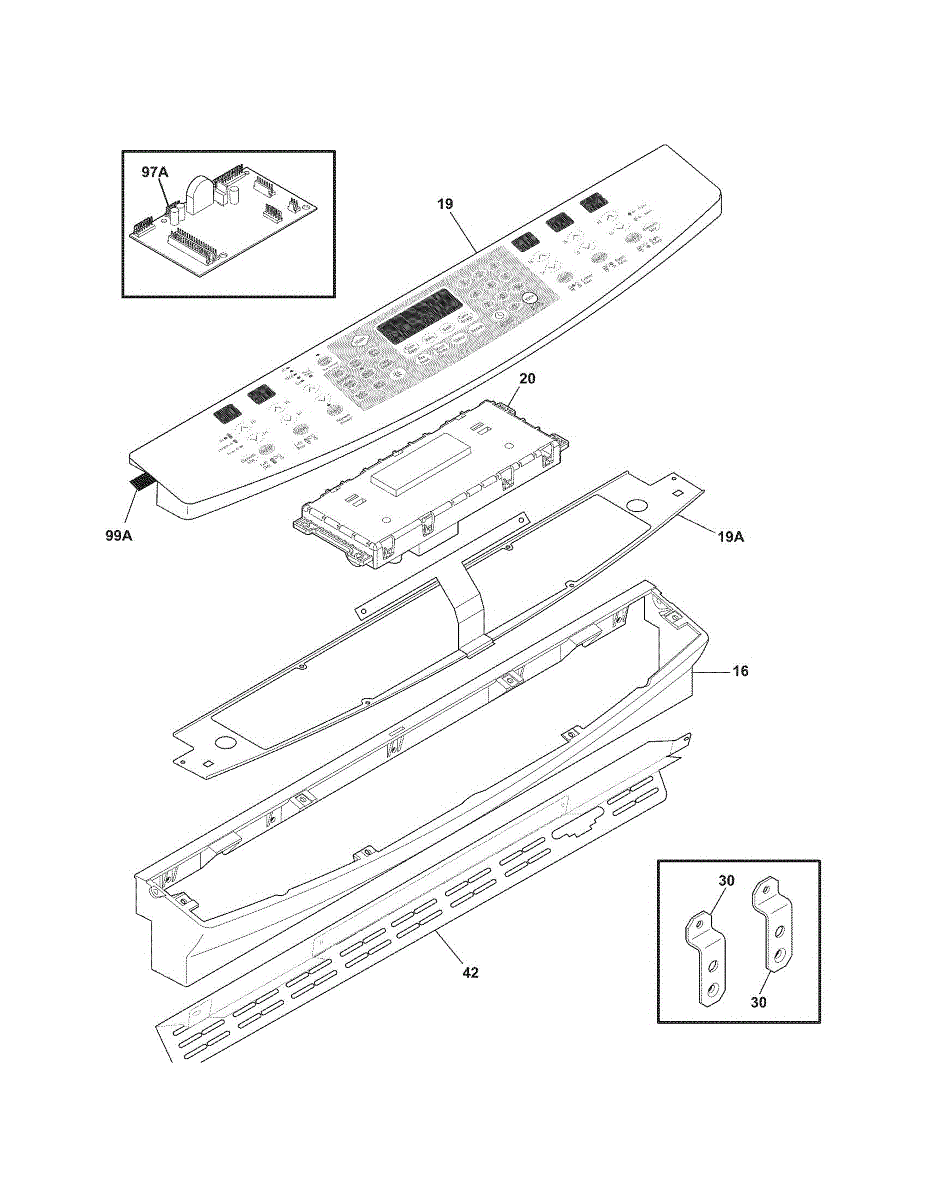

Parts for Kenmore 790.41029802 (79041029802, 790 41029802): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

The main circuit board that controls all electronic functions of the range, including heating elements, timers, and display features. Replace when the range becomes unresponsive, displays error codes, or cooking elements won't activate properly.

Fix a range that won't heat, has a blank display, or shows error codes with this control board. Moderate difficulty repair taking 30-45 minutes.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This repair parts list is a reference sheet that shows the appliance's parts diagram and part numbers, making it easier to identify and order the correct replacement components. Keep it handy during diagnosis and repairs. What it does:

• Displays the appliance's exploded parts diagram for quick visual identification
• Lists OEM part numbers to simplify ordering replacement parts
• Supports troubleshooting by showing how parts fit and interact

• No installation required; keep with the appliance service records
• Use as a reference when ordering parts or planning repairs
• Protect from moisture and damage to preserve legibility

Wiring diagram for your range showing electrical connections and circuit layout. Helpful for troubleshooting or repairs when original is lost or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
