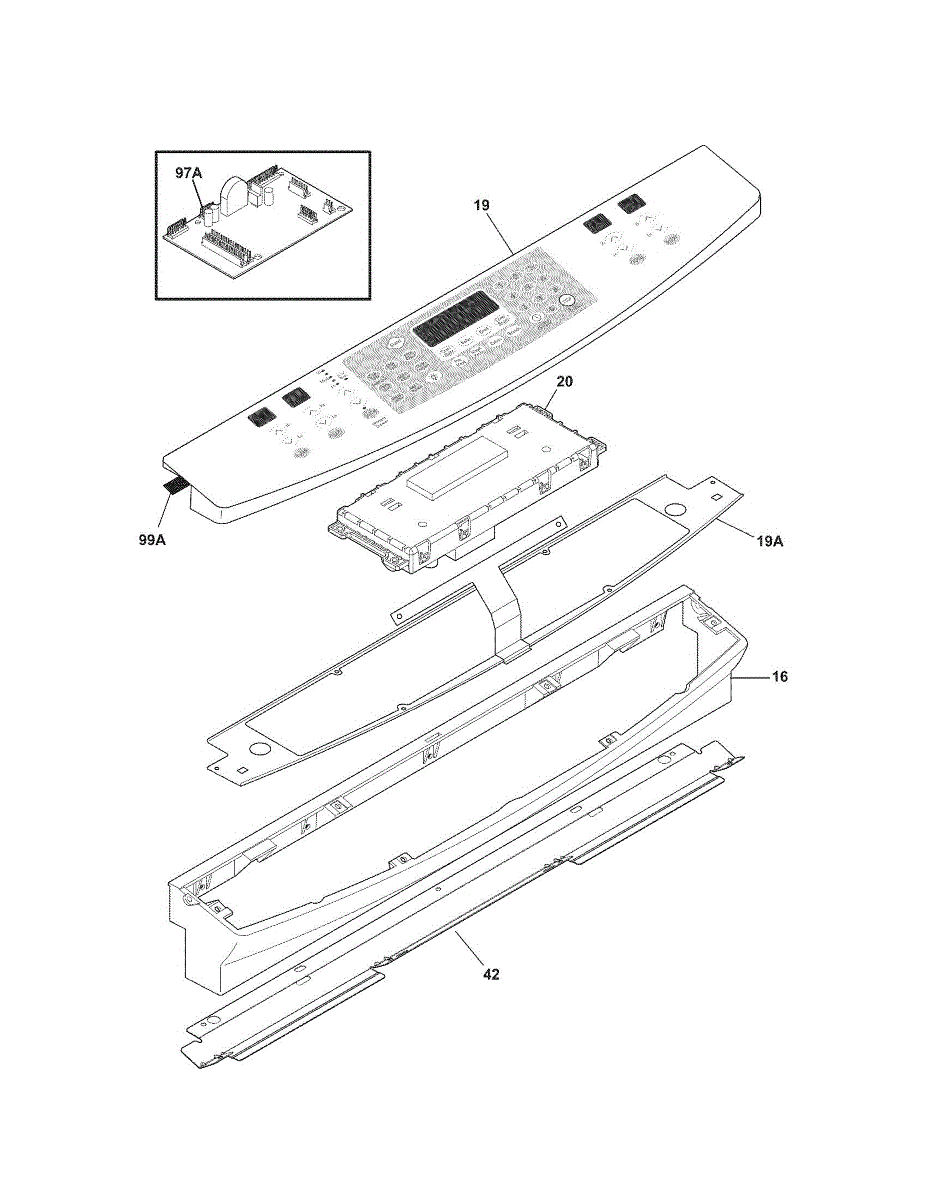

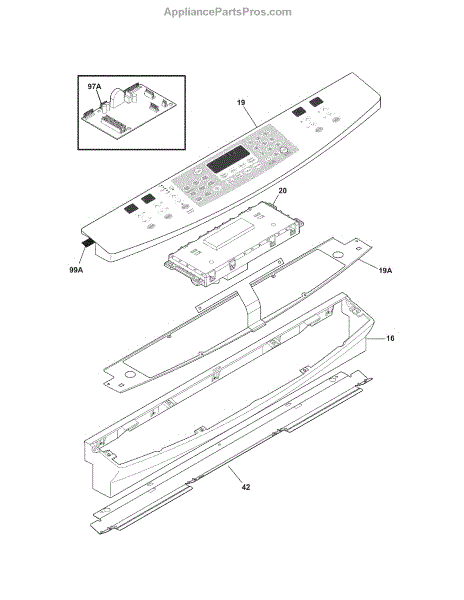

Parts for Kenmore 790.45003804 (79045003804, 790 45003804): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replace your range control board if the oven won't heat, display is blank, or buttons don't respond. Restores full electronic control functionality.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This repair parts list is a service parts diagram sheet that helps identify replacement components and part numbers for repairs. Keep it with your service documentation to simplify ordering and troubleshooting. What it does:

• Shows exploded views and reference numbers for internal parts to help locate items that need replacing
• Matches service terminology used by manufacturers and parts catalogs for accurate ordering
• Helps diagnose which component is failing based on location and assembly relationships
• Speeds communication with technicians or parts suppliers by providing exact part reference numbers

• This is a reference document only; it does not replace the appliance's service manual or safety procedures
• Keep the sheet dry and stored with your appliance records for future repairs
• If a physical part is needed, order the specific replacement part number shown on the diagram

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
