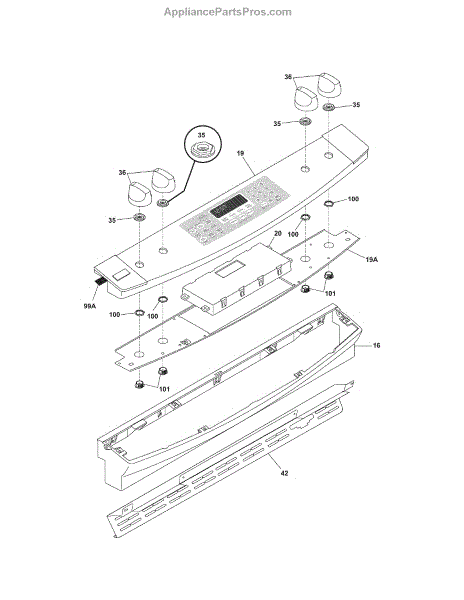

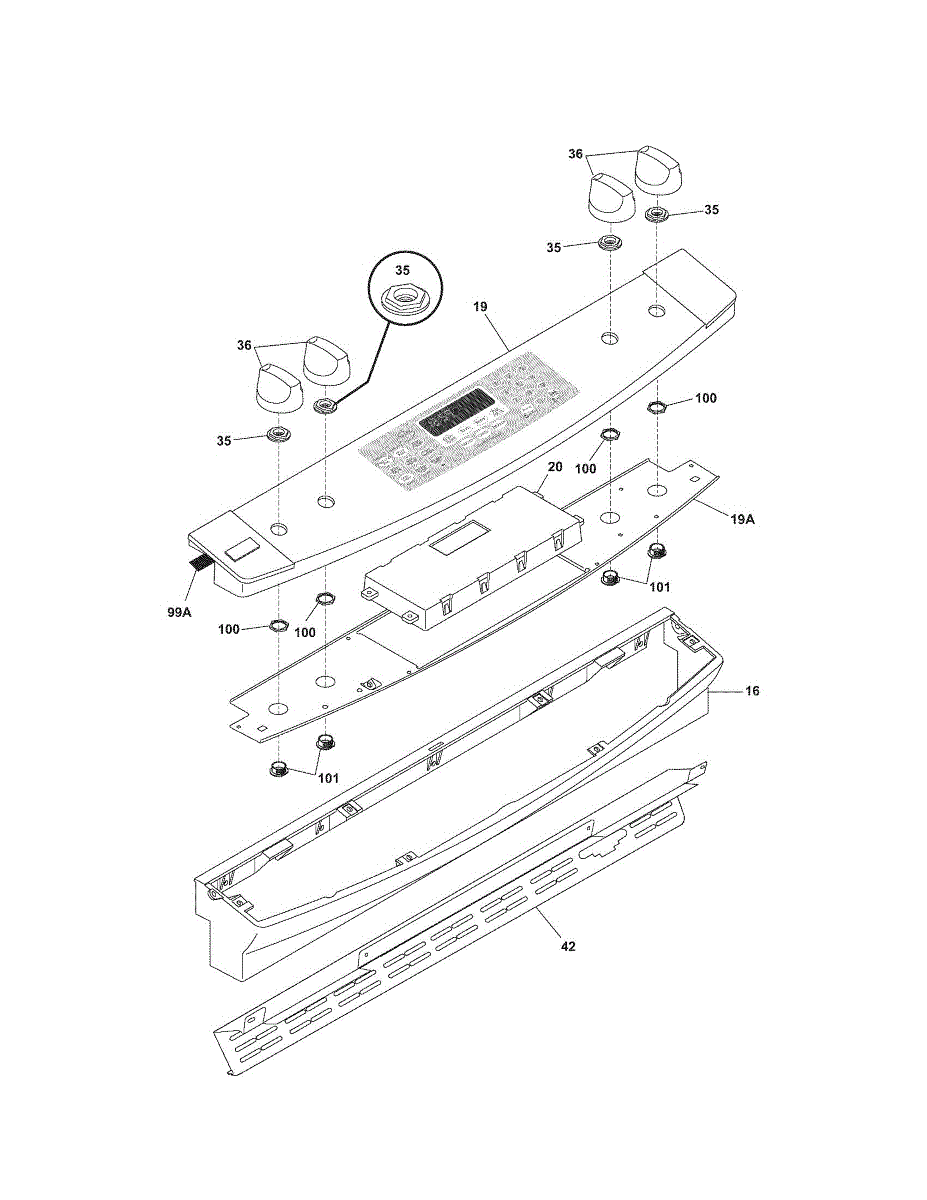

Parts for Kenmore 790.46622501 (79046622501, 790 46622501): Backguard Parts

Replace your range's cracked or worn touch pad control panel. This cosmetic part installs on the front console to restore the appearance and function.

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Small mounting clip that secures interior range components in place. Replace if cracked, broken, or missing to prevent parts from shifting or rattling.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

A printed wiring diagram schematic used to identify electrical circuits, wire colors, and connector locations for service and troubleshooting. Keeps wiring information readable and available for repairs. What it does:

• Shows electrical circuits, component connections, and wire color codes to assist diagnosis
• Helps homeowners trace wiring and verify connector locations
• Useful when the original diagram label is missing, damaged, or unreadable
• Supports safe, accurate electrical troubleshooting by providing the factory wiring layout

• One printed wiring diagram/schematic

• Replace the damaged or missing diagram in an accessible interior cabinet area where original was located
• Avoid contact with sharp edges while positioning; handle with clean, dry hands to prevent smudging
• Use the diagram as a reference only; disconnect power before servicing electrical components
• If wiring differs from the diagram, stop and verify part revisions or documentation

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
