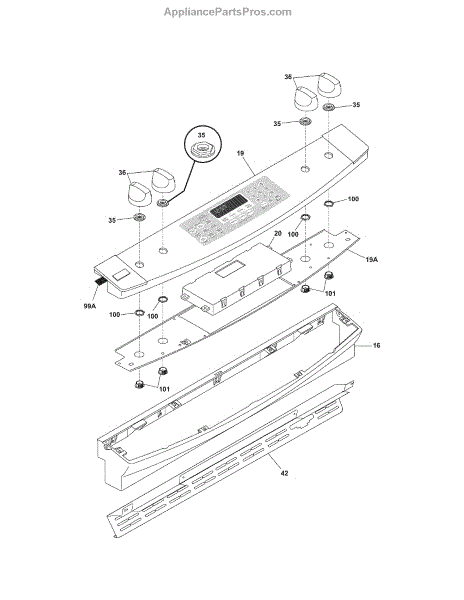

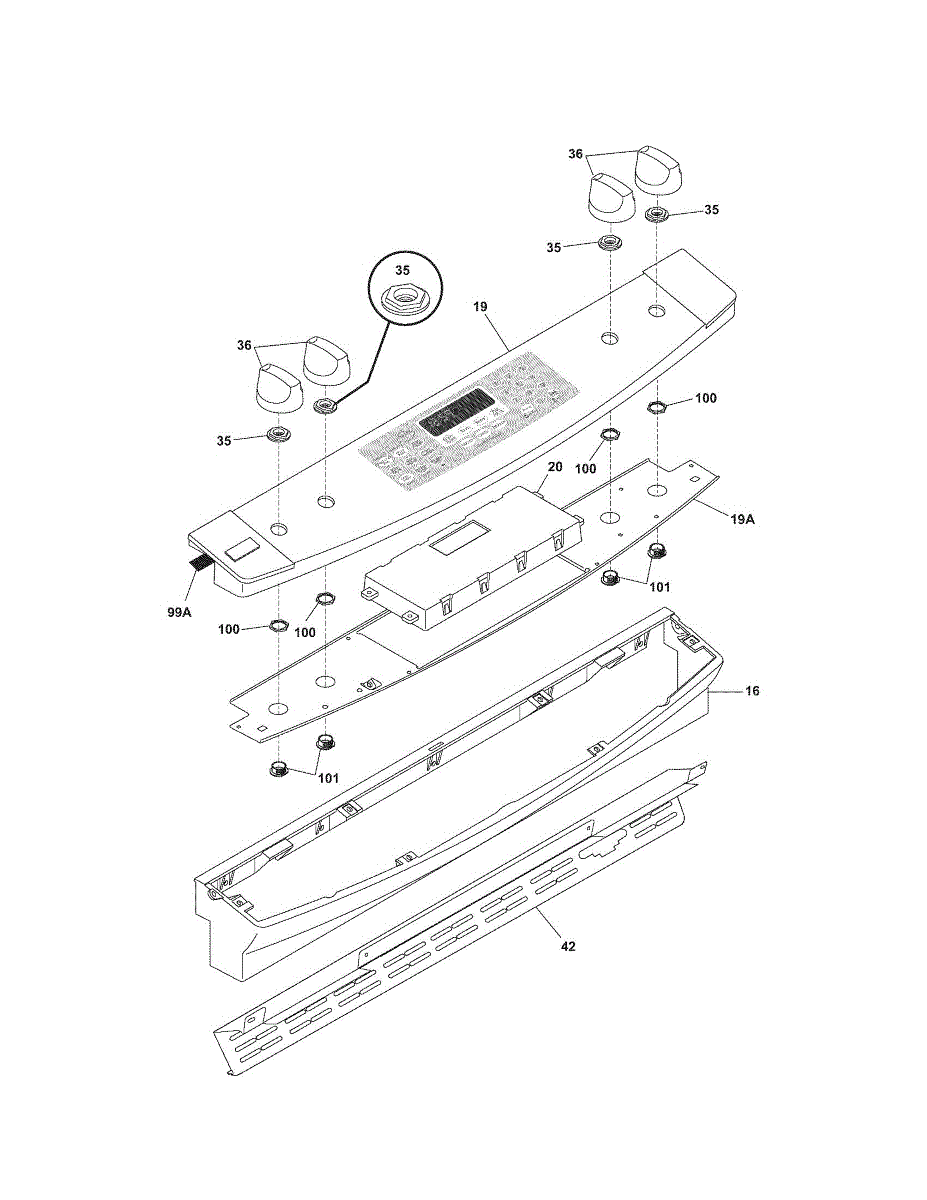

Parts for Kenmore 790.46623503 (79046623503, 790 46623503): Backguard Parts

Replacement support panel for ranges. Installs inside the appliance frame to provide structural support. Order when original is cracked or broken.

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the control panel to operate burners or oven settings.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

A printed wiring diagram schematic used to identify electrical circuits, wire colors, and connector locations for service and troubleshooting. Keeps wiring information readable and available for repairs. What it does:

• Shows electrical circuits, component connections, and wire color codes to assist diagnosis
• Helps homeowners trace wiring and verify connector locations
• Useful when the original diagram label is missing, damaged, or unreadable
• Supports safe, accurate electrical troubleshooting by providing the factory wiring layout

• One printed wiring diagram/schematic

• Replace the damaged or missing diagram in an accessible interior cabinet area where original was located
• Avoid contact with sharp edges while positioning; handle with clean, dry hands to prevent smudging
• Use the diagram as a reference only; disconnect power before servicing electrical components
• If wiring differs from the diagram, stop and verify part revisions or documentation

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
