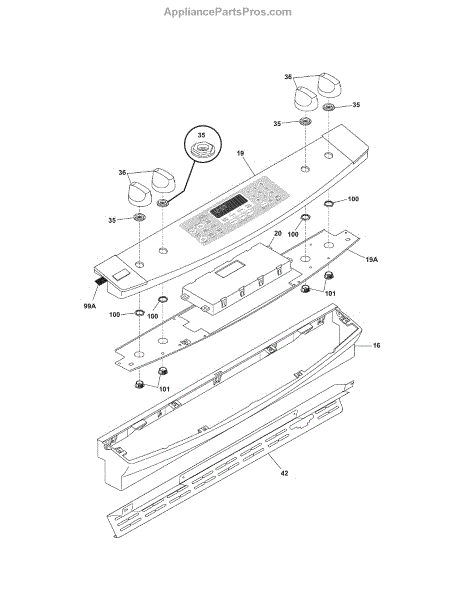

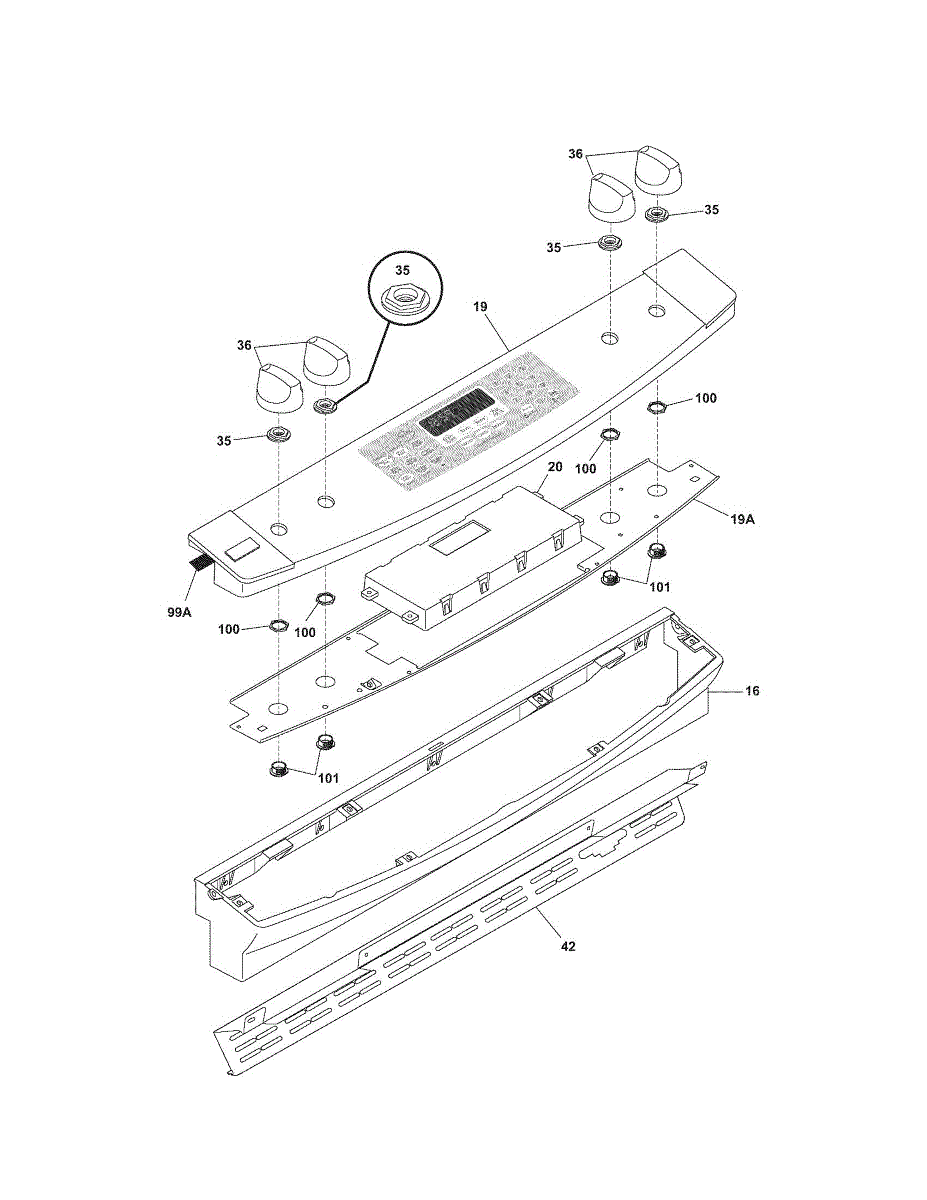

Parts for Kenmore 790.46633603 (79046633603, 790 46633603): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

A printed wiring diagram schematic used to identify electrical circuits, wire colors, and connector locations for service and troubleshooting. Keeps wiring information readable and available for repairs. What it does:

• Shows electrical circuits, component connections, and wire color codes to assist diagnosis
• Helps homeowners trace wiring and verify connector locations
• Useful when the original diagram label is missing, damaged, or unreadable
• Supports safe, accurate electrical troubleshooting by providing the factory wiring layout

• One printed wiring diagram/schematic

• Replace the damaged or missing diagram in an accessible interior cabinet area where original was located
• Avoid contact with sharp edges while positioning; handle with clean, dry hands to prevent smudging
• Use the diagram as a reference only; disconnect power before servicing electrical components
• If wiring differs from the diagram, stop and verify part revisions or documentation

This printed repair parts list provides the parts diagram and reference numbers used to identify replaceable components for the appliance. It helps technicians and DIYers identify part locations and correct replacement PN before ordering. What it does:

• Shows exploded diagrams and reference numbers for the appliance's service parts
• Helps identify the exact replacement part by location, shape, and reference number
• Speeds ordering by matching visible parts to their listed PN and description
• Useful when troubleshooting missing, broken, or worn components to confirm what to replace

• This is a reference document, not an electrical or mechanical replacement part
• Keep the sheet with the appliance or service records for future parts lookup
• Do not use as a service manual; follow OEM service procedures for repairs
• Handle paper carefully to avoid tearing; replace if damaged so reference info remains legible

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
