Parts for Kenmore 790.46713604 (79046713604, 790 46713604): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Replace your range's damaged or worn wire harness. This internal wiring component connects electrical systems inside your range and may need replacement if frayed, burned, or broken.

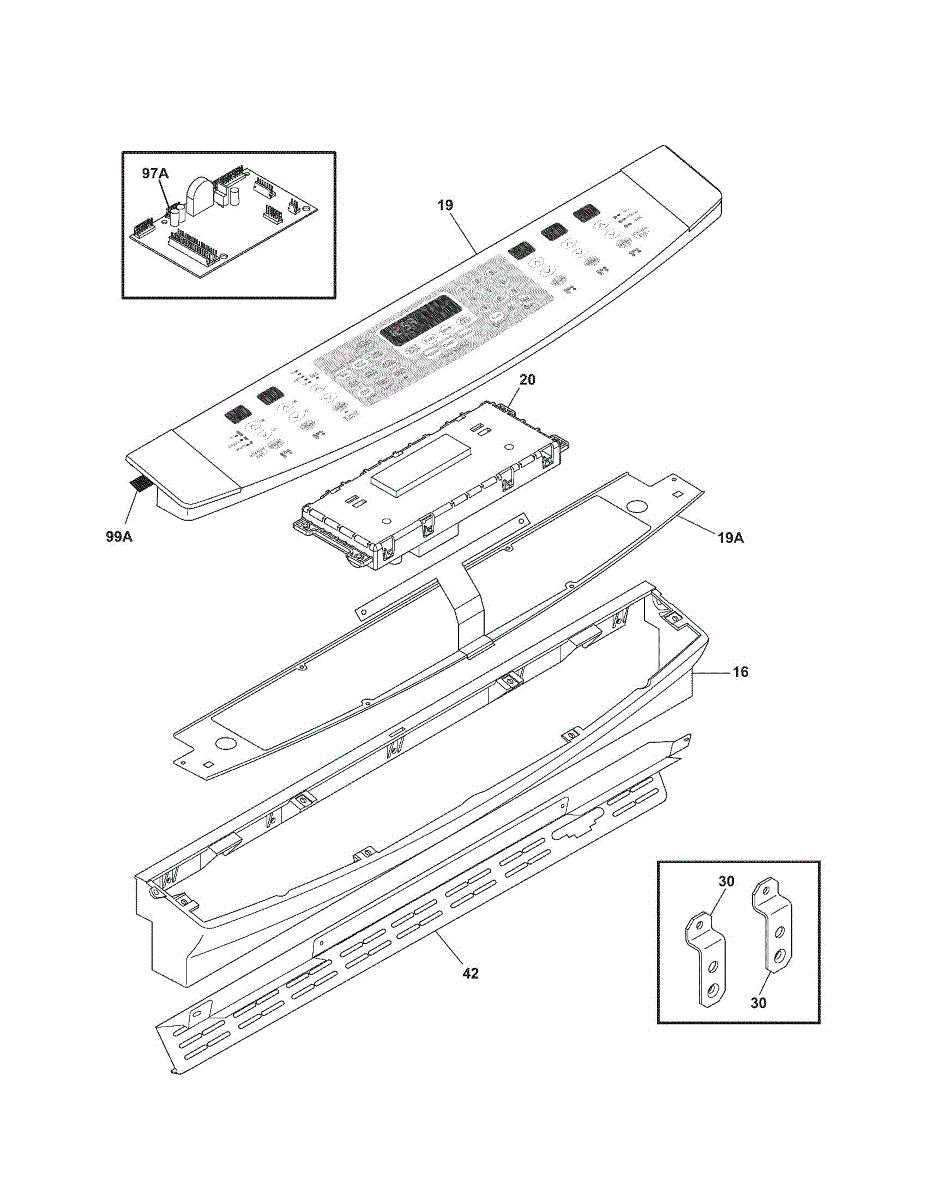

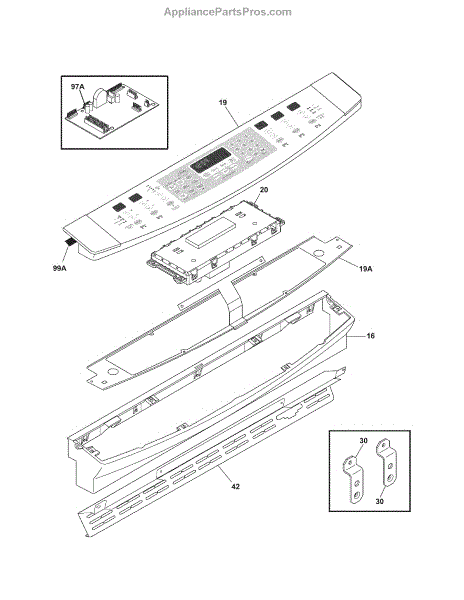

This repair parts list is the factory service parts diagram used to identify and locate replacement parts and part numbers for the appliance. It helps technicians and DIYers confirm the correct parts before ordering. What it does:

• Shows the appliance's component layout and exploded view for clear part identification
• Lists OEM part numbers and item callouts to match the exact replacement needed
• Helps diagnose which parts relate to common symptoms like no power, leaking, or improper operation
• Reduces ordering mistakes by providing visual confirmation of parts and quantities

• This is a reference document, not a physical replacement component; use it to identify parts to order
• Keep the sheet dry and flat to preserve legibility; store with service records
• Match the diagram to your appliance's model and serial number before ordering parts

Technical service data sheet for your range. Provides wiring diagrams, troubleshooting guides, and repair specifications. Replace lost or damaged sheets.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
