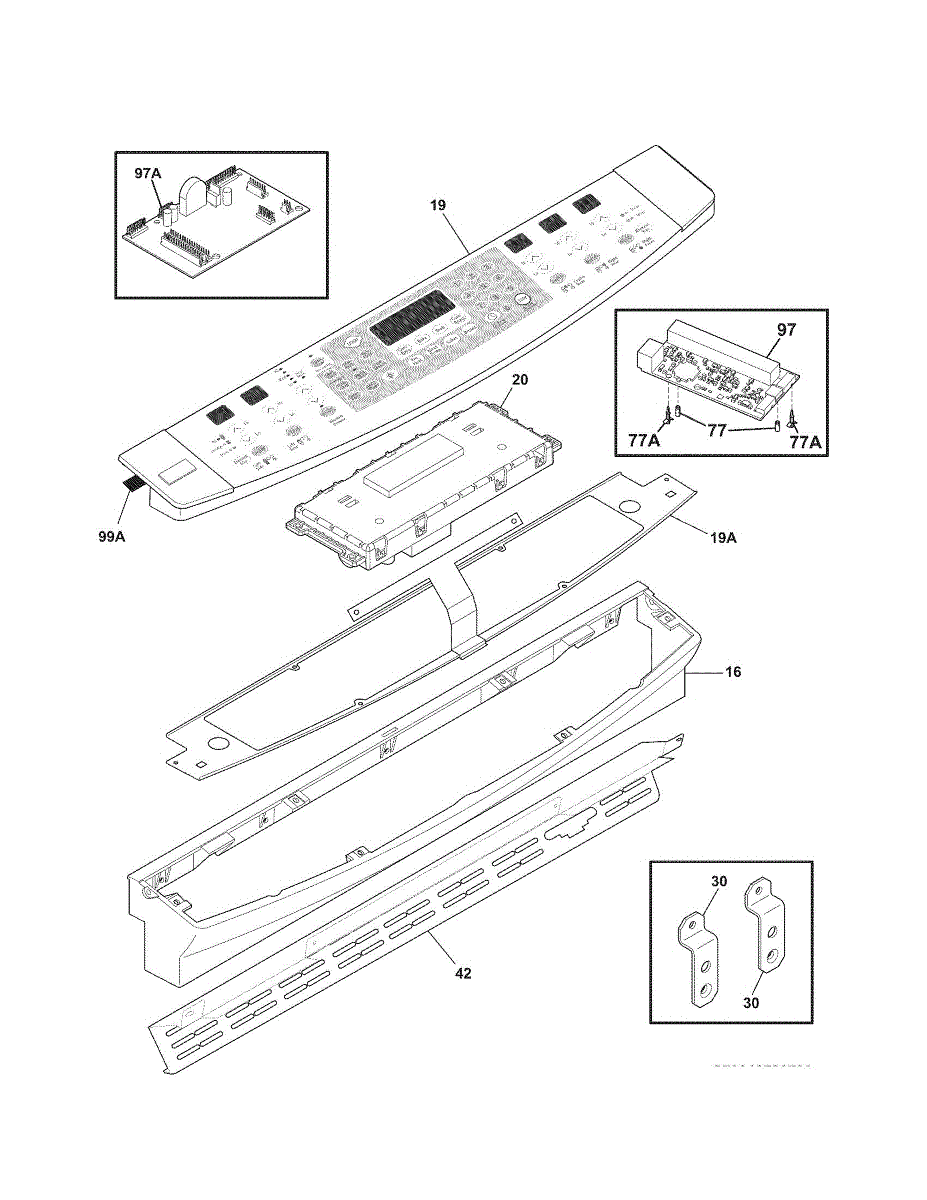

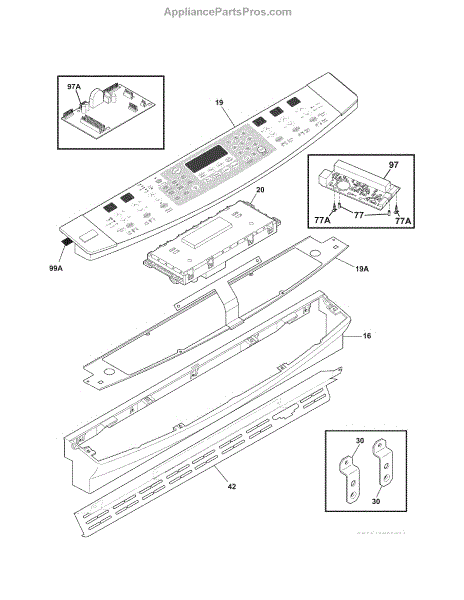

Parts for Kenmore 790.46723701 (79046723701, 790 46723701): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

This oven control board manages all electronic functions including temperature control, timer settings, and cooking modes. It regulates heating elements and displays information on your oven's control panel. Replace this board if your oven won't heat properly, displays error codes, or has unresponsive buttons.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Fix a cooktop that won't heat, has no display, or shows error codes with this control board. Moderate DIY repair that restores full functionality.

This is a black rubber gasket that seals the area between the control panel and the range body, preventing heat, grease, and moisture from reaching the internal wiring and controls. It helps protect sensitive electronic components from damage caused by exposure to cooking heat and spills. Replace this gasket if it is cracked, brittle, missing, or if you notice heat or moisture getting behind the control panel.

This wiring harness connects key electrical components so the appliance powers and controls circuits correctly. It replaces a damaged or faulty cable assembly to restore reliable electrical connections and proper operation. What it does

• Routes power and signals between controls, sensors, and modules to enable normal appliance functions
• Replaces broken, frayed, or corroded wiring that can cause intermittent operation or failure to start
• Restores secure connector joins that prevent arcing, shorts, or error codes
• Helps eliminate symptoms such as no power to components, erratic behavior, or loss of specific functions

• One replacement wiring harness as shown

• Disconnect power before accessing internal wiring; follow all safety precautions
• Match connector shapes and wire colors before installing to ensure correct routing
• Handle connectors by the bodies; avoid pulling on wires to prevent damage

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
