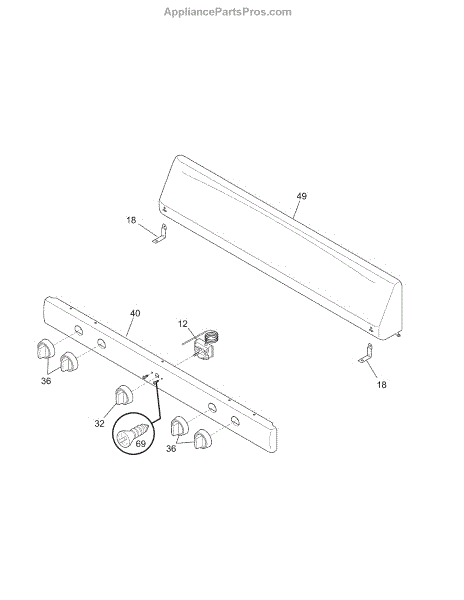

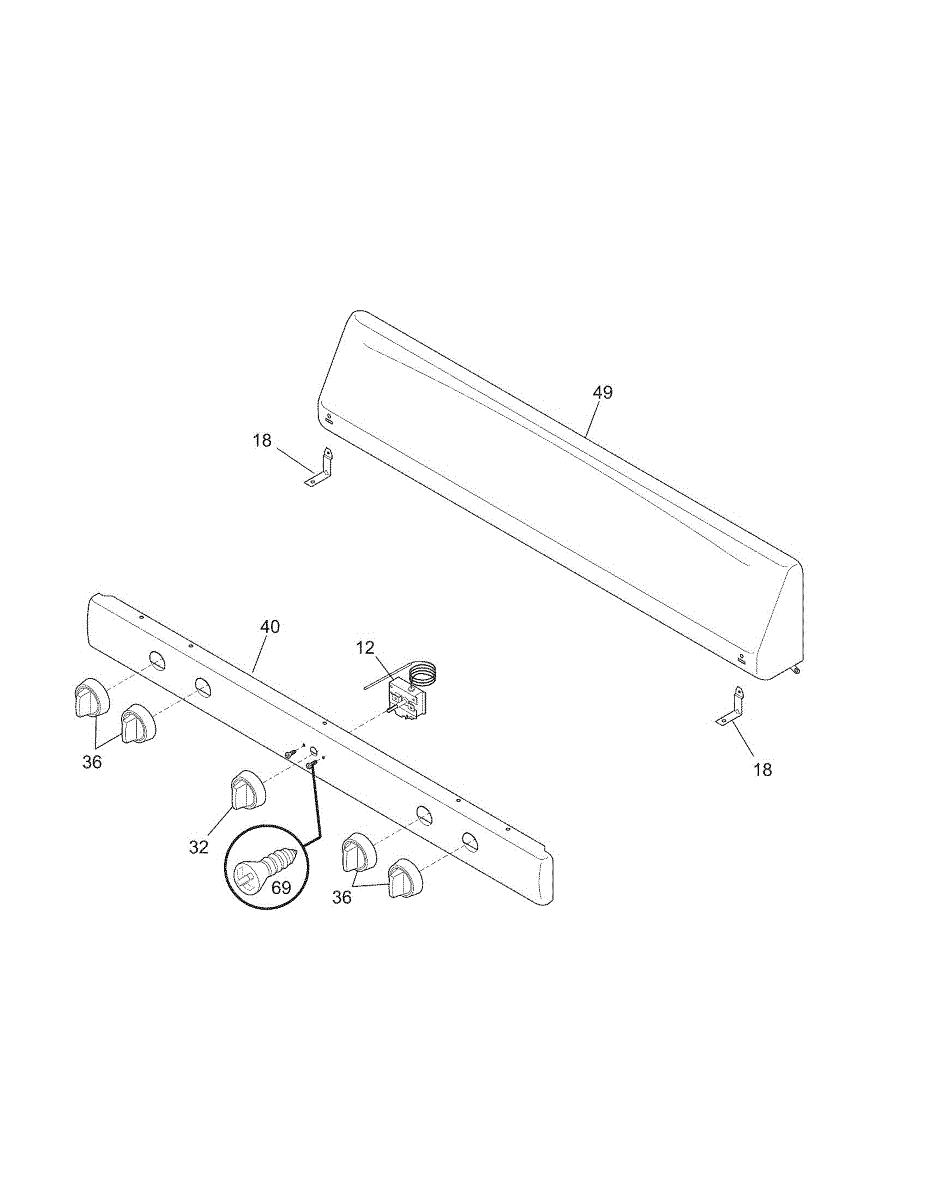

Parts for Kenmore 790.60012602 (79060012602, 790 60012602): Backguard Parts

Oven won't heat to correct temperature or won't turn off? The thermostat regulates oven heat. DIY repair typically takes 15-60 minutes with basic tools.

Mounting bracket that secures the backguard panel to your range. Replace if bent, broken, or missing to ensure proper backguard installation.

Color: white. It measures about 1-3/4 inches in diameter.

Replace a cracked, melted, worn, or missing control knob on your gas range. Restores secure grip and clear settings indicator for burner controls.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This repair parts list provides the factory parts breakdown and diagram to help identify replacement components and service part numbers before ordering. Useful for accurately locating the part you need. What it does:

• Shows the appliance's exploded parts diagram and callouts for easy identification
• Lists factory part numbers and assembly relationships for each component
• Aids technicians and DIYers in planning repairs and ordering parts

• Not an electrical or wearable part; use only as a reference for repair and ordering
• Keep document clean and dry; store with appliance paperwork for future reference

Insulation strip that installs inside the range oven door to reduce heat loss and dampen sound. Replace if torn, compressed, or missing.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
