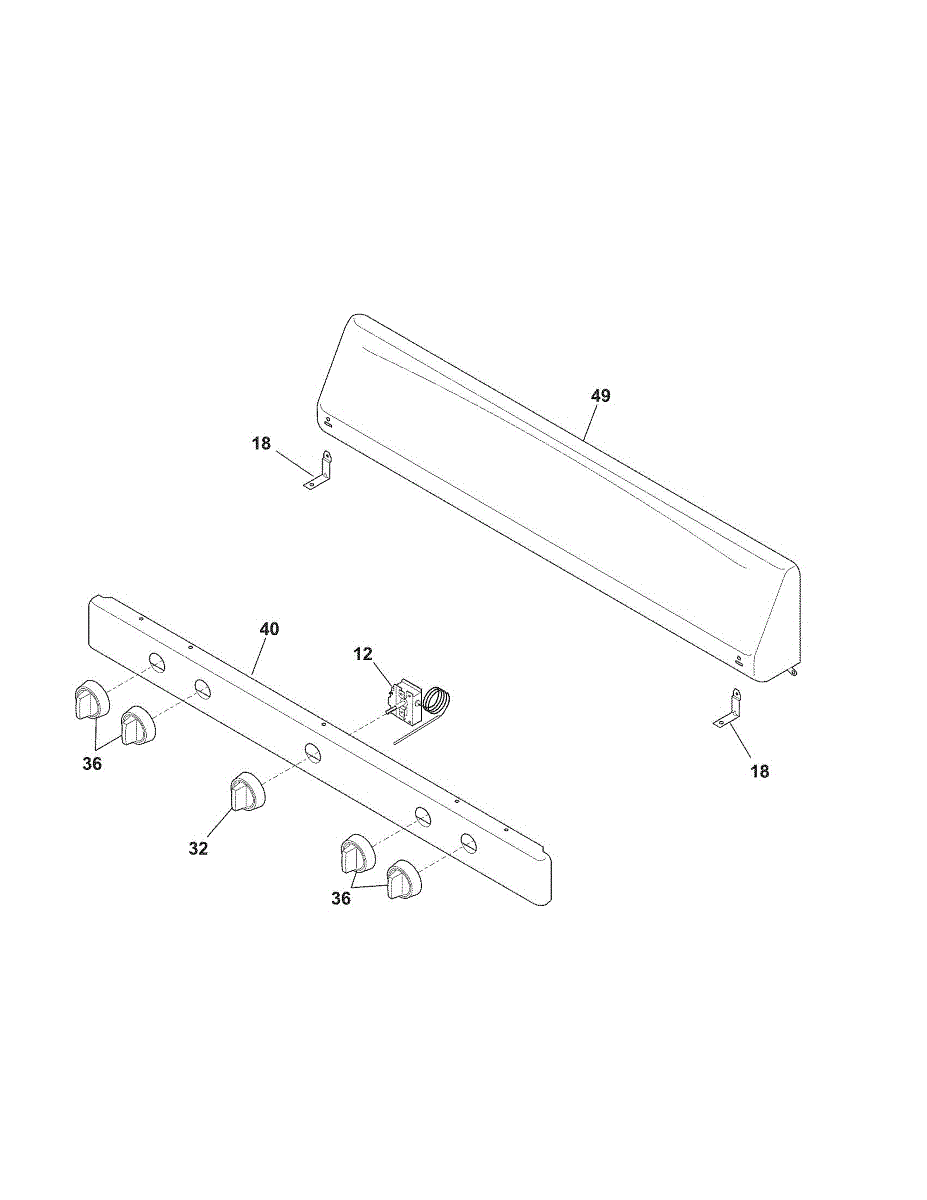

Parts for Kenmore 790.70271405 (79070271405, 790 70271405): Backguard Parts

Oven won't heat to correct temperature or won't turn off? The thermostat regulates oven heat. DIY repair typically takes 15-60 minutes with basic tools.

Mounting bracket that secures the backguard panel to your range. Replace if bent, broken, or missing to ensure proper backguard installation.

Replace your gas range's broken or missing control knob. This shaft-style knob installs on the control panel to adjust burner heat and oven settings.

This is a printed repair parts list that shows the appliance's exploded parts breakdown and part numbers so you can identify which replacement parts are needed. Handy for technicians and DIYers confirming correct parts before ordering. What it does:

• Provides a diagram-style parts breakdown and reference numbers for each component
• Helps identify the exact replacement part by matching part numbers and locations
• Reduces ordering errors by giving clear, OEM-sourced part references
• Useful when troubleshooting parts-related symptoms or verifying service parts

• This is a reference document; no mechanical installation is required
• Keep with appliance records or service kit for future reference
• Handle paper with clean, dry hands to avoid smudging or damage

Insulation strip that installs inside the range oven door to reduce heat loss and dampen sound. Replace if torn, compressed, or missing.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
