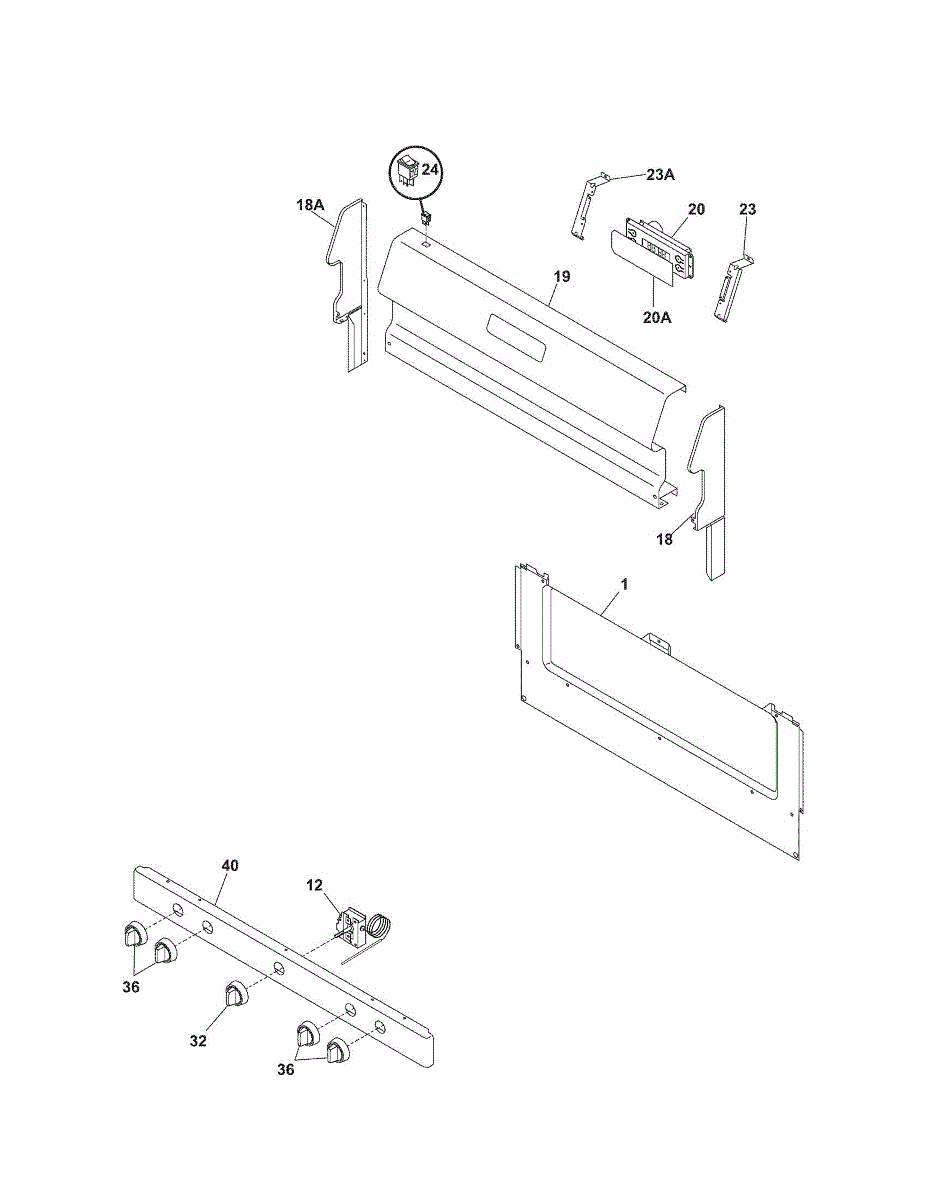

Parts for Kenmore 790.70290404 (79070290404, 790 70290404): Backguard Parts

Oven won't heat to correct temperature or won't turn off? The thermostat regulates oven heat. DIY repair typically takes 15-60 minutes with basic tools.

Color: Black

Color: Black

This electronic control board manages timing functions and temperature settings for your range or oven. It processes user inputs from buttons and knobs to control heating elements and cooking cycles. Replace if your oven won't maintain temperature, timer doesn't work, or the display shows incorrect information.

This is a black rocker switch used on a range or oven control panel. It functions as an on/off toggle for a specific feature such as a light or fan. Replace this switch if it no longer clicks into position, feels loose, or fails to activate the associated function when pressed.

Replace your gas range's broken or missing control knob. This shaft-style knob installs on the control panel to adjust burner heat and oven settings.

This printed repair parts list is a service parts sheet that helps identify factory part names and locations to simplify ordering and repairs. It's a reference for technicians and owners to the correct replacement components. What it does:

• Lists factory part names and reference numbers so you can the correct replacement components
• Points to parts locations and diagram callouts used in repair literature
• Helps avoid ordering the wrong part when a component is missing, damaged, or unclear
• Serves as a quick reference during troubleshooting and parts replacement

• No tools or electrical work required; this is a paper reference only
• Keep with your appliance documentation or with the unit for future service calls
• Replace if torn, water-damaged, or unreadable to ensure accurate part identification

Insulation strip that installs inside the range oven door to reduce heat loss and dampen sound. Replace if torn, compressed, or missing.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
