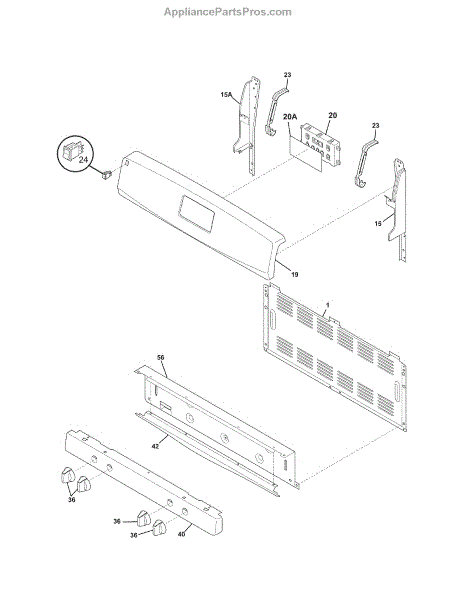

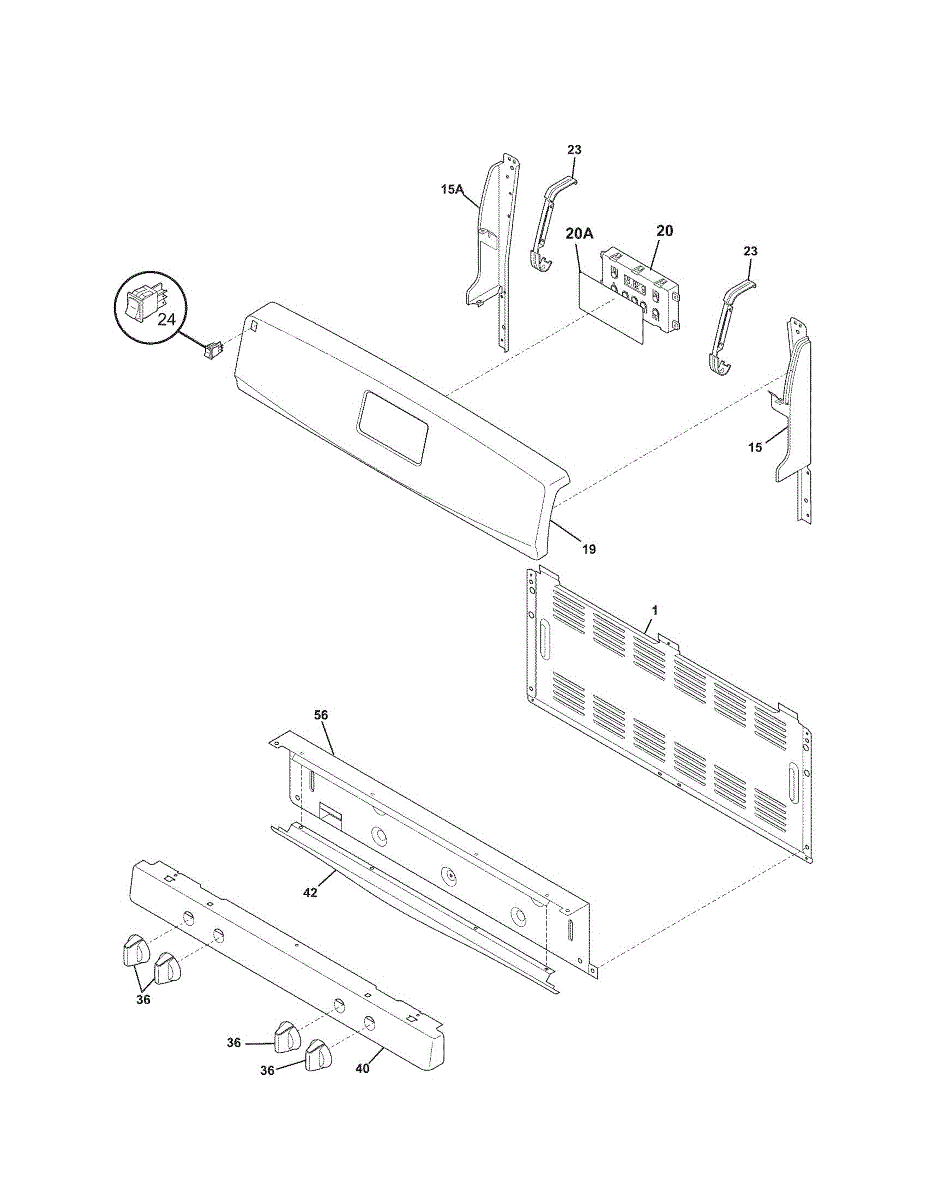

Parts for Kenmore 790.70504011 (79070504011, 790 70504011): Backguard Parts

This is a bisque-colored left-side support bracket that mounts to the backguard area of the range. It provides structural support for the shelf or trim along the back of the cooktop. Replace this bracket if it is cracked, broken, or missing, which can cause the backguard trim or shelf to sit unevenly or come loose.

Replace your range's touch pad control panel if the overlay is cracked, buttons are unresponsive, or the surface is damaged. Installs on the front panel.

This is the electronic oven control board that manages cooking functions including temperature regulation, bake and broil cycles, and clock/timer operations. It mounts behind the control panel at the back of the range. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or runs at incorrect temperatures.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

Replacement owner's manual for your range. Provides operating instructions, care guidelines, and safety information if your original manual is lost or damaged.

Service tech sheet for your range. This technical document provides wiring diagrams, troubleshooting guides, and specifications for repair technicians.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
