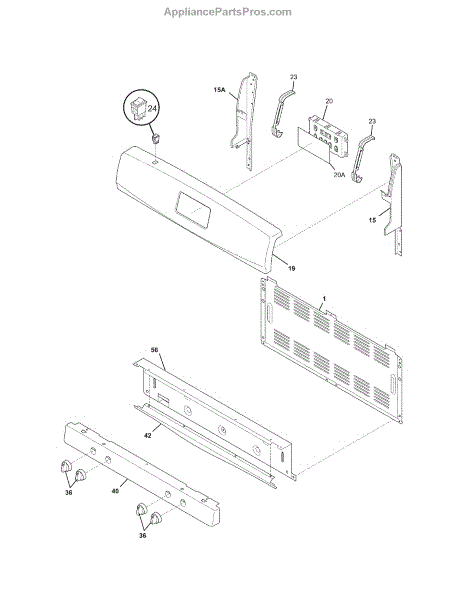

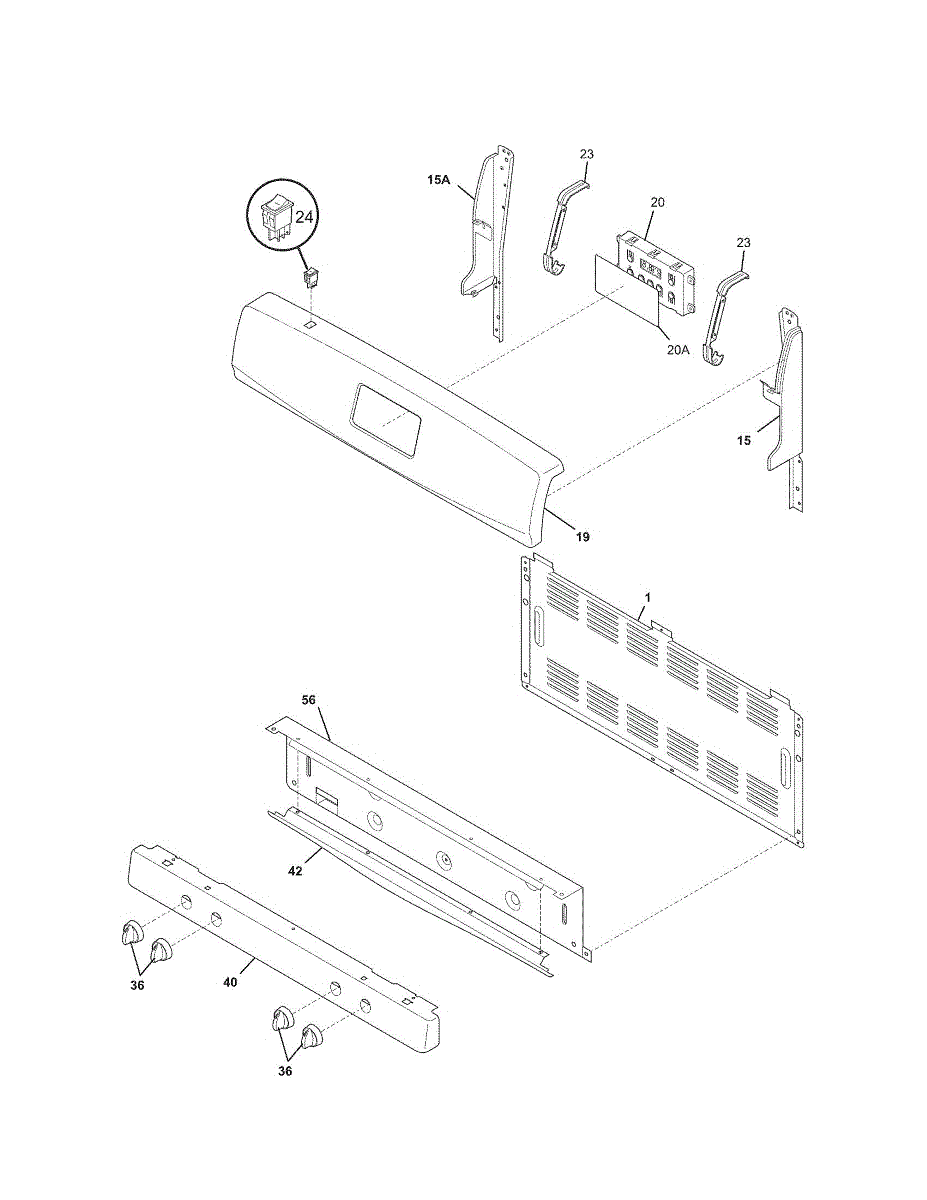

Parts for Kenmore 790.71208703 (79071208703, 790 71208703): Backguard Parts

The Clock/Timer is an OEM replacement part for Frigidaire ranges. It allows for precise time and temperature settings to be entered and displayed for oven functions.

As a digital module, causes for failure may include corrupted firmware over time or water/debris intrusion damaging circuits. Backlight failure is common after extended hours of usage.

Symptoms consist of:

• Inaccurate time displaying/keeping
• Timer functions like pre-heating not engaging
• Corrupted or non-responsive touch controls
• Faint or no display illumination

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Black range burner control knob that mounts on the front control panel. Replace if your knob is cracked, broken, missing, or difficult to grip securely.

This control panel is the user interface assembly that restores your appliance's controls and front appearance. It provides a clean surface for buttons and the display so you can operate the unit safely and reliably. What it does:

• Houses buttons, touchpads or display used to select functions and settings
• Replaces cracked, warped or cosmetically damaged front panels
• Can resolve unresponsive or hard-to-press controls when the panel is the damaged component
• Protects internal control electronics from everyday wear and splashes

• One control panel assembly

• Disconnect power to the appliance before starting any repair
• Handle the panel and any glass or trim carefully to avoid damage
• Keep screws, clips and electrical connectors organized during disassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This repair parts list is a printed parts diagram and reference sheet that helps identify service parts and part numbers for repair and ordering. Keep it with your appliance paperwork to speed parts lookup and service communication. What it does:

• Shows exploded diagrams and the location of individual parts for a specific appliance
• Lists part numbers and reference callouts used by service technicians and parts suppliers
• Helps you which replacement part you need before ordering
• Useful for diagnosing which component to inspect when a part fails or is missing

• This is a reference document, not a functional or replacement mechanical part
• Use the diagrams and part numbers to order genuine replacement parts from an authorized supplier
• Keep the sheet with your appliance records for future repairs

Printed owners manual for your range. Provides operating instructions, maintenance guidelines, and safety information. Order a replacement copy.

Service tech sheet for your range. This technical document provides wiring diagrams, troubleshooting guides, and specifications for repair technicians.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
