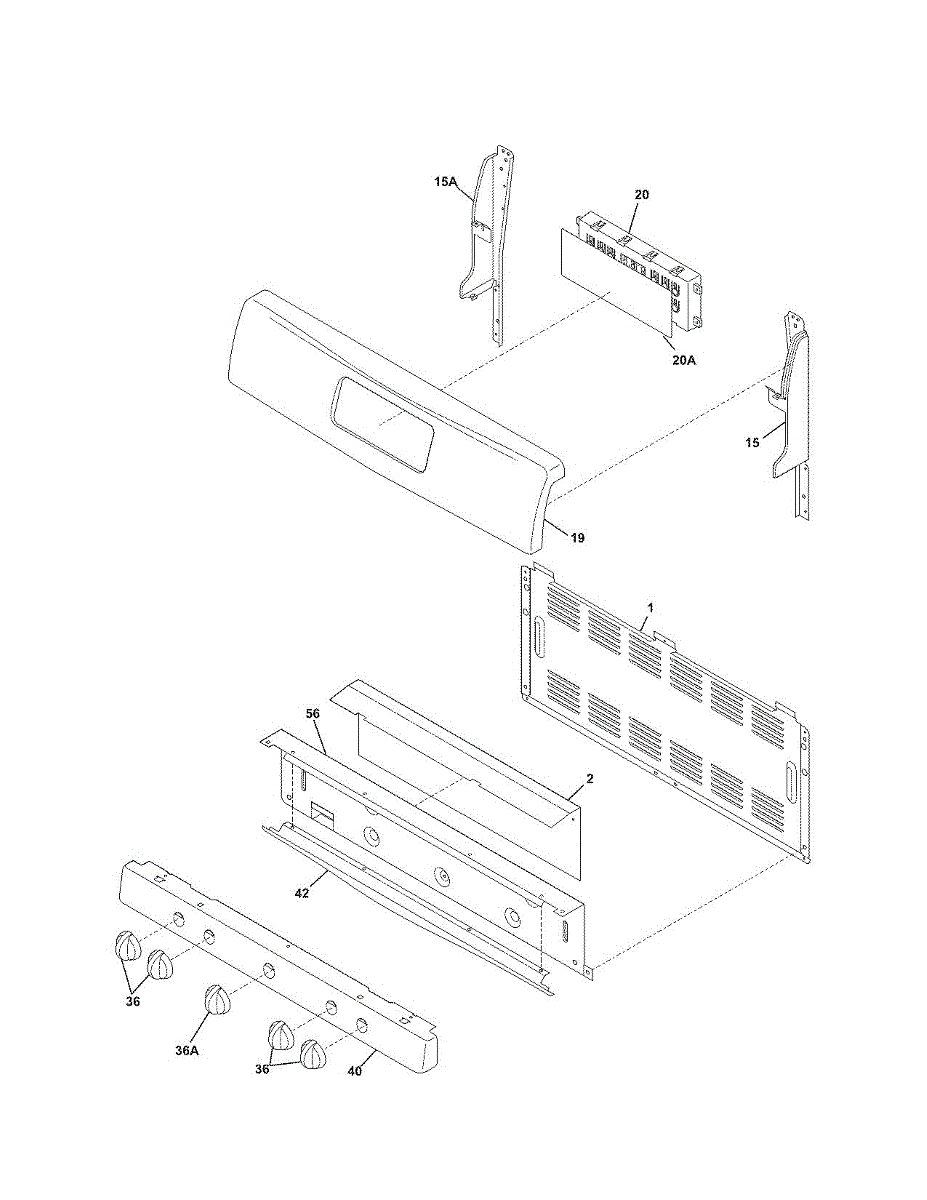

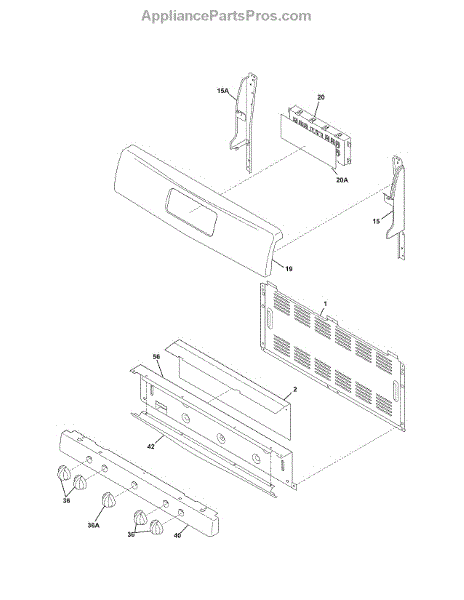

Parts for Kenmore 790.71399701 (79071399701, 790 71399701): Backguard Parts

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

Replace your worn, faded, or damaged range control panel overlay. This printed decal restores button labels and console finish for a clean, readable look.

Replace your worn, faded, or damaged range control panel overlay. This printed decal restores button labels and console finish for a clean, readable look.

Decorative overlay that covers the range control panel area with legible button labels. Replace when faded, scratched, peeling, or missing for a clean look.

Fix F11 error codes and restore oven temperature control with this electronic control board. Repairs failed timekeeping and bake/broil functions.

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Color: white. Measures about 2 inches in diameter.

Replacement control knob for ranges and cooktops. Attaches to the valve shaft to select burner or oven heat settings when original is cracked, worn, or missing.

Color: black. Measures about 2 inches in diameter.

Black range burner control knob that mounts on the front control panel. Replace if your knob is cracked, broken, missing, or difficult to grip securely.

Replace your range's control panel touch pad when the interface is cracked, worn, or unresponsive. Mounts on the front control area for easy access.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This repair parts list is the factory parts diagram and reference sheet that helps identify replacement parts and their location for service and ordering. It speeds troubleshooting by showing part names and reference numbers in one place. What it does:

• Provides a labeled parts diagram to identify components and part reference numbers
• Helps owners locate parts on the appliance for repair or replacement
• Useful for part names before ordering to avoid wrong purchases
• Acts as a quick visual reference during disassembly and reassembly

• No installation required; store with the appliance manual or service records
• Handle the sheet carefully to avoid tears or smudging of printed references
• Use the diagram alongside the appliance's service information for accurate part selection

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
