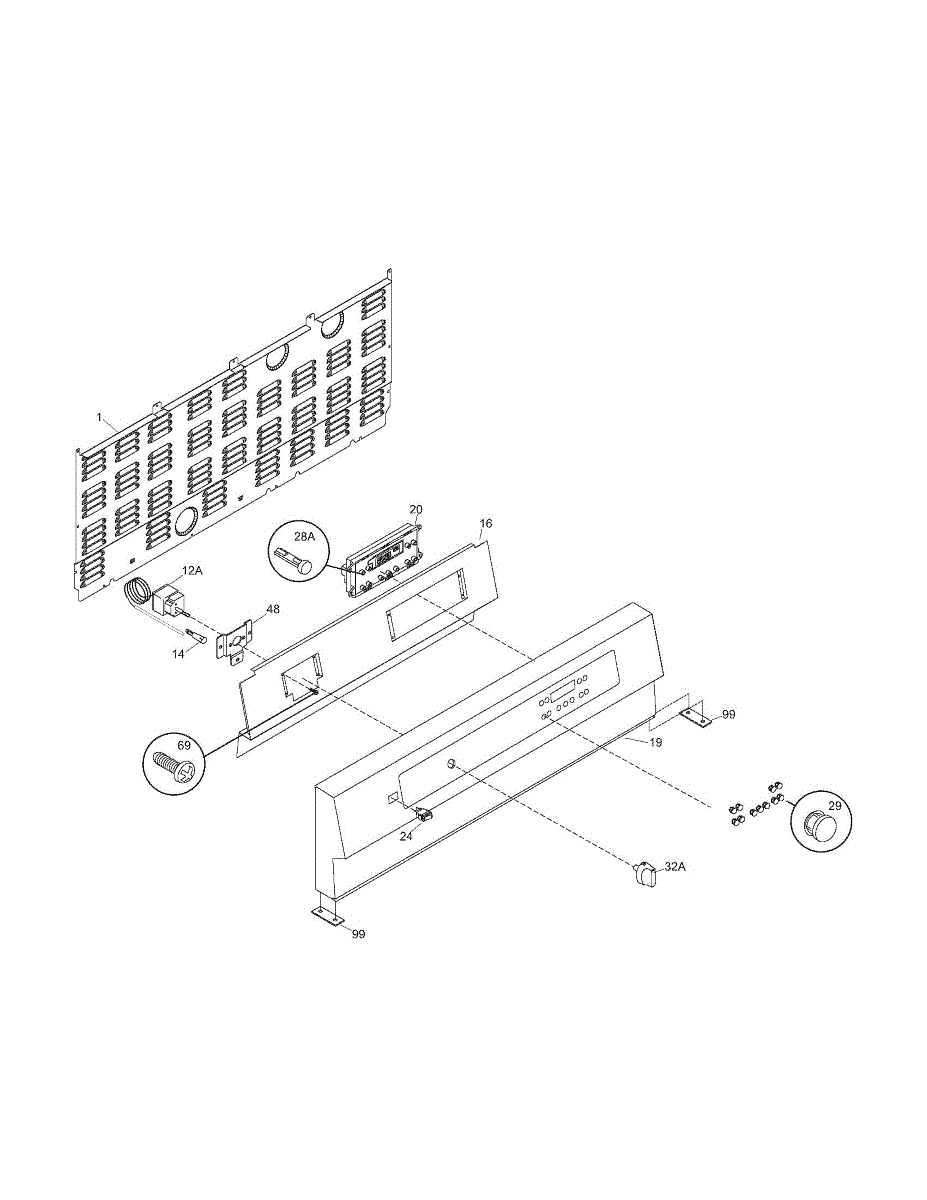

Parts for Kenmore 790.75503208 (79075503208, 790 75503208): Backguard Parts

This oven thermostat senses and regulates oven temperature so food cooks evenly and the range reaches set temperatures. It replaces a failed temperature control to restore accurate heating and cycle behavior. What it does:

• Closes and opens the control circuit to maintain the oven at the selected temperature
• Can correct symptoms such as oven not reaching set temperature, overheating, or excessive cycling
• Works with the oven's control system and heating elements to stabilize bake and broil operations
• Mechanical design — avoid bending or damaging the sensing element/capillary

• One oven thermostat

• Disconnect power to the appliance before starting any service
• Handle the thermostat and sensing element carefully; do not kink or sharply bend the capillary
• Verify proper thermostat mounting and oven cavity seals for accurate temperature control

This interior refrigerator light provides bright, even illumination so you can see food and settings clearly while the door is open. Designed to fit the factory light location and restore proper interior lighting. What it does

• Illuminates the refrigerator compartment for improved visibility
• Replaces a burned-out, flickering, or dim interior light
• Helps locate food and read controls without removing items
• Works with the factory light housing and switch to operate when the door opens

What's included One interior refrigerator light Install notes

• Disconnect power to the appliance before starting any work
• Handle glass or bulb components carefully to avoid breakage and injury
• Use the exact part number for compatibility; do not force if fitment differs

This is an oven control board that includes timer and clock functions for managing cooking operations. It regulates oven temperature, timing, and coordinates between different heating elements. Replace this part if your oven won't maintain proper temperature, the timer doesn't work, or cooking cycles don't start or complete correctly.

If your range burner won't heat, stays on constantly, or won't adjust temperature, the infinite switch likely failed. This part regulates heat levels.

The range timer knob shaft is the rotating rod that connects the timer control knob to the internal timer mechanism behind the control panel. Replace when the timer knob spins freely without engaging, feels loose, or the timer won't advance properly.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This printed Use & Care manual provides the official operating, safety and maintenance guidance for your appliance so you can run it correctly and care for it over time. Easy-reference instructions help prevent misuse and reduce service needs. What it does:

• Explains basic operation, controls and normal cycles so you can use the appliance safely
• Lists routine maintenance tips to help preserve performance and extend life
• Covers safety warnings and cautions to reduce risk of personal injury or property damage
• Provides troubleshooting guidance for common issues and suggested user checks

• No tools required; store near the appliance for quick reference
• Read all safety and installation sections before operating the appliance
• Replace if pages are missing or damaged; retain original manual for warranty and service info
• Keep out of reach of children and away from moisture to preserve readability

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
