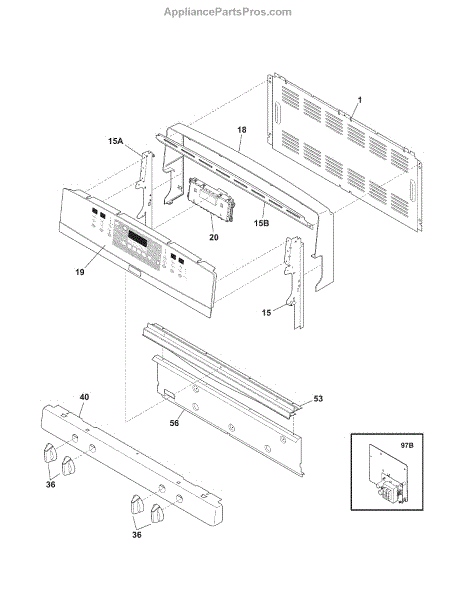

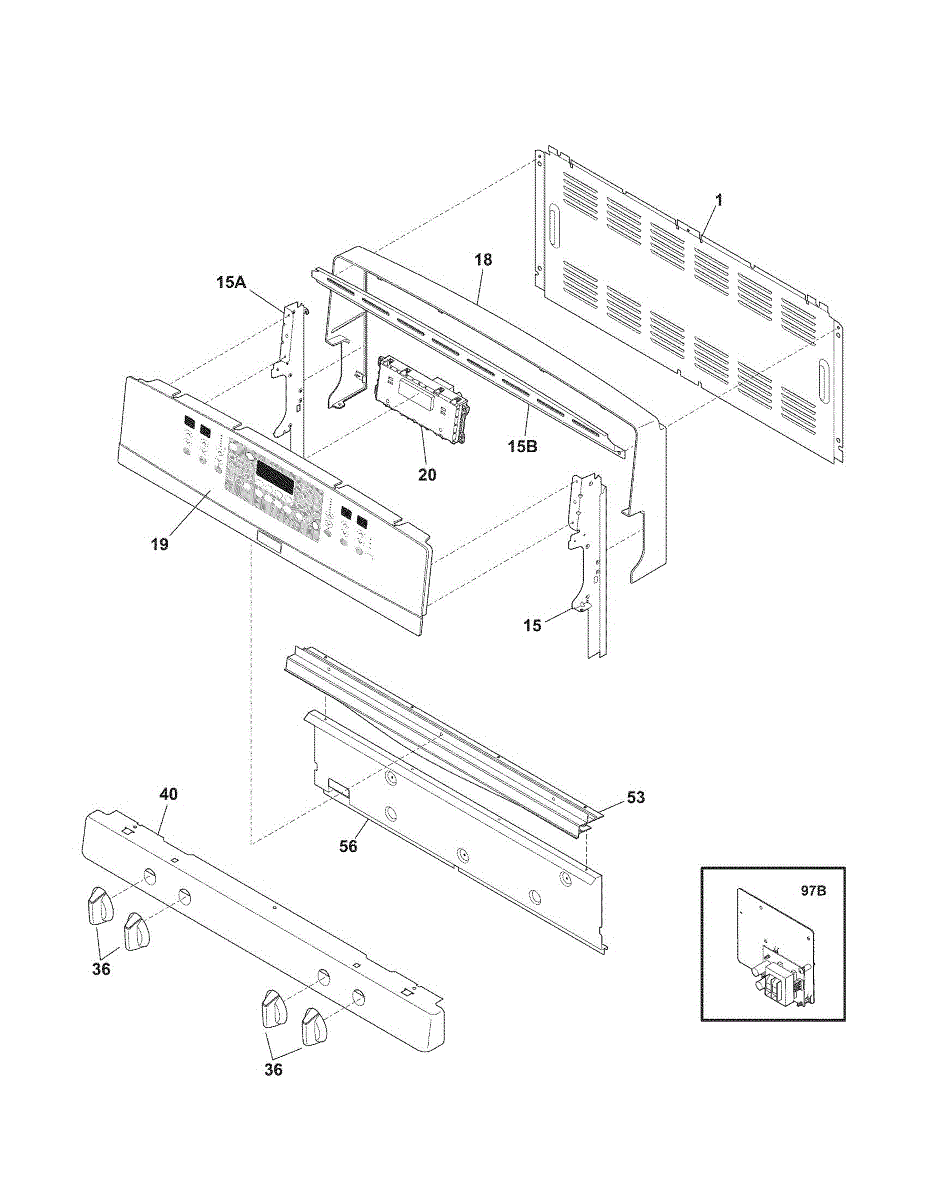

Parts for Kenmore 790.77493800 (79077493800, 790 77493800): Backguard Parts

Range not heating, display blank, or buttons unresponsive? This control board manages oven functions and temperature. Moderate DIY repair with basic tools.

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the valve stem to control burner temperature settings.

This decorative trim restores the finished appearance around the appliance opening and covers exposed edges for a clean, factory look. It's a direct-fit exterior piece used when the original trim is scratched, dented, or missing. What it does:

• Covers and protects exposed cabinet or appliance edges to restore a finished appearance
• Hides gaps and fastener holes left by damaged or removed trim
• Helps prevent dirt and moisture from collecting in exposed seams
• Commonly replaced when trim is cracked, bent, scratched, or cosmetically worn

• One trim piece as shown

• Designed for direct replacement
• Use basic hand tools; avoid overtightening fasteners to prevent cracking
• Disconnect power or follow manufacturer safety guidance if removing adjacent panels near electrical components
• If any clips or screws are missing, replace with OEM-specified hardware

This repair parts list is a service sheet that helps identify the replacement parts used on your appliance, streamlining ordering and repairs. It's a reference document technicians and DIYers use during troubleshooting. What it does:

• Lists the appliance's service parts and their reference numbers to simplify identification
• Helps order the correct parts for repairs and maintenance
• Supports faster diagnosis by showing part names and locations used on the unit
• Useful as a checklist when preparing for a repair or parts replacement

• This is an informational/reference document, not a functional replacement part.
• Keep the sheet dry and store with your appliance records for future use.
• Always disconnect power to the appliance before attempting any repairs.

Replacement broiler pan for your range or wall oven. Installs in the oven cavity to catch drippings during broiling. Needed when original is warped or damaged.

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
