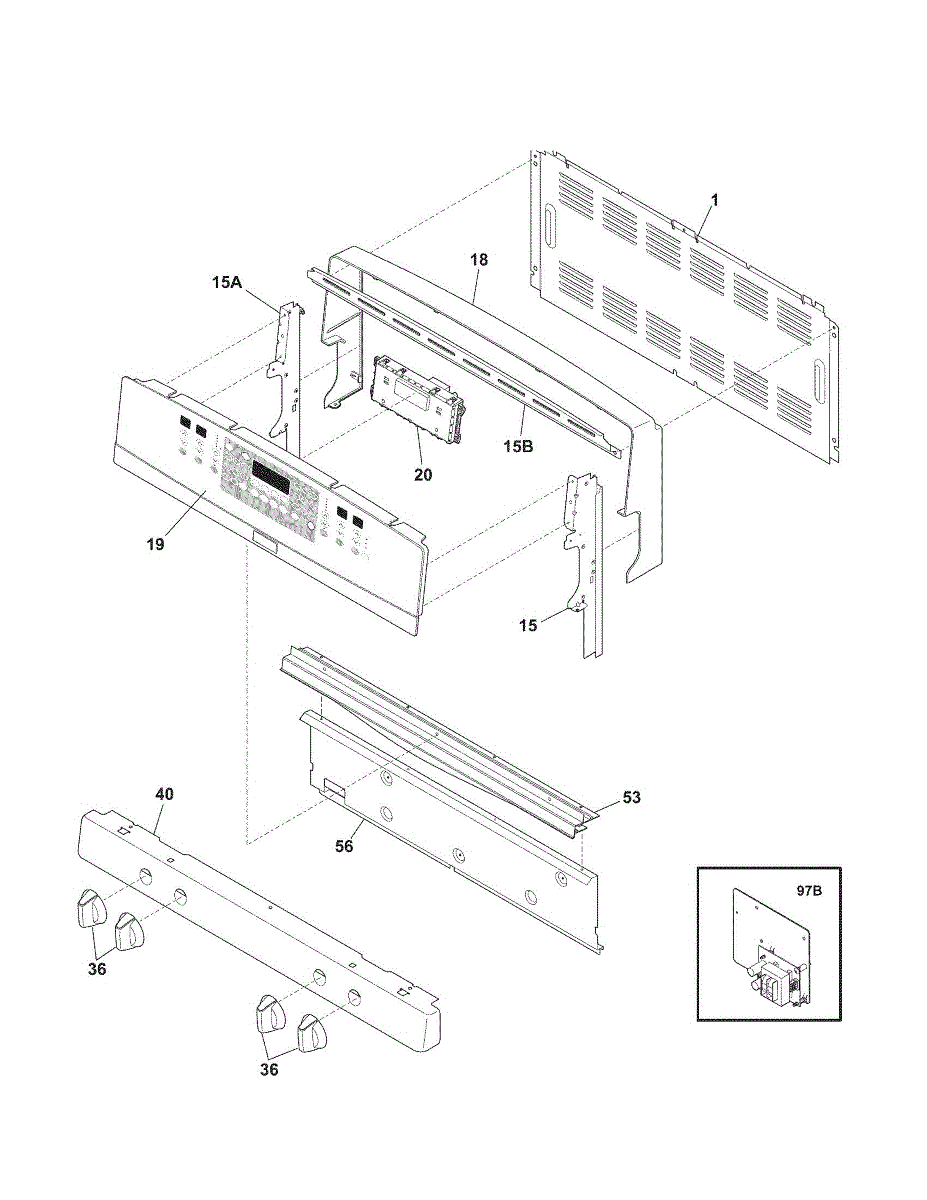

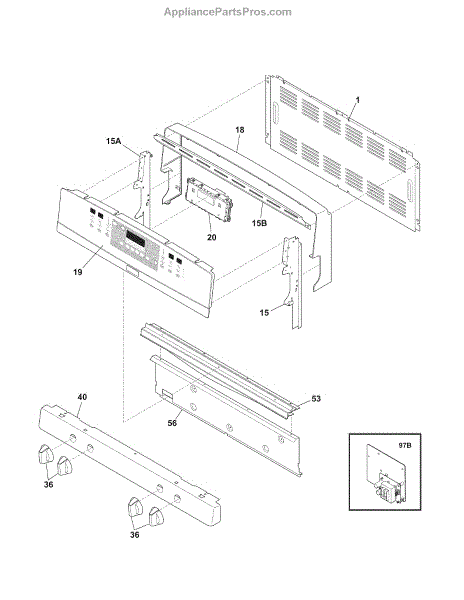

Parts for Kenmore 790.77493802 (79077493802, 790 77493802): Backguard Parts

Range not heating, display blank, or buttons unresponsive? This control board manages oven functions and temperature. Moderate DIY repair with basic tools.

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the valve stem to control burner temperature settings.

This decorative trim restores the finished appearance around the appliance opening and covers exposed edges for a clean, factory look. It's a direct-fit exterior piece used when the original trim is scratched, dented, or missing. What it does:

• Covers and protects exposed cabinet or appliance edges to restore a finished appearance
• Hides gaps and fastener holes left by damaged or removed trim
• Helps prevent dirt and moisture from collecting in exposed seams
• Commonly replaced when trim is cracked, bent, scratched, or cosmetically worn

• One trim piece as shown

• Designed for direct replacement
• Use basic hand tools; avoid overtightening fasteners to prevent cracking
• Disconnect power or follow manufacturer safety guidance if removing adjacent panels near electrical components
• If any clips or screws are missing, replace with OEM-specified hardware

This printed repair parts list provides the official parts diagram and part numbers for service techs and DIYers, making it easier to identify the exact components you need for repairs and maintenance. What it does:

• Shows exploded diagrams and OEM part numbers for the appliance's assemblies and components
• Helps identify the correct replacement parts to match symptoms like broken, missing, or worn components
• Speeds troubleshooting by clarifying part locations and relationships without guessing
• Supports ordering the right parts to avoid returns from incorrect purchases

• One printed repair parts list

• Use the parts list before ordering or performing repairs
• Keep the parts list for future service reference and to share with repair technicians
• Follow all appliance manufacturer safety instructions when servicing; disconnect power and/or gas supply before working on the appliance

Replacement broiler pan for your range or wall oven. Installs in the oven cavity to catch drippings during broiling. Needed when original is warped or damaged.

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
