Parts for Kenmore 790.77499801 (79077499801, 790 77499801): Backguard Parts

Trim piece that frames and secures the control panel on your range. Replace if cracked, broken, or discolored to restore a clean, finished appearance.

Range not heating, display blank, or buttons unresponsive? This control board manages oven functions and temperature. Moderate DIY repair with basic tools.

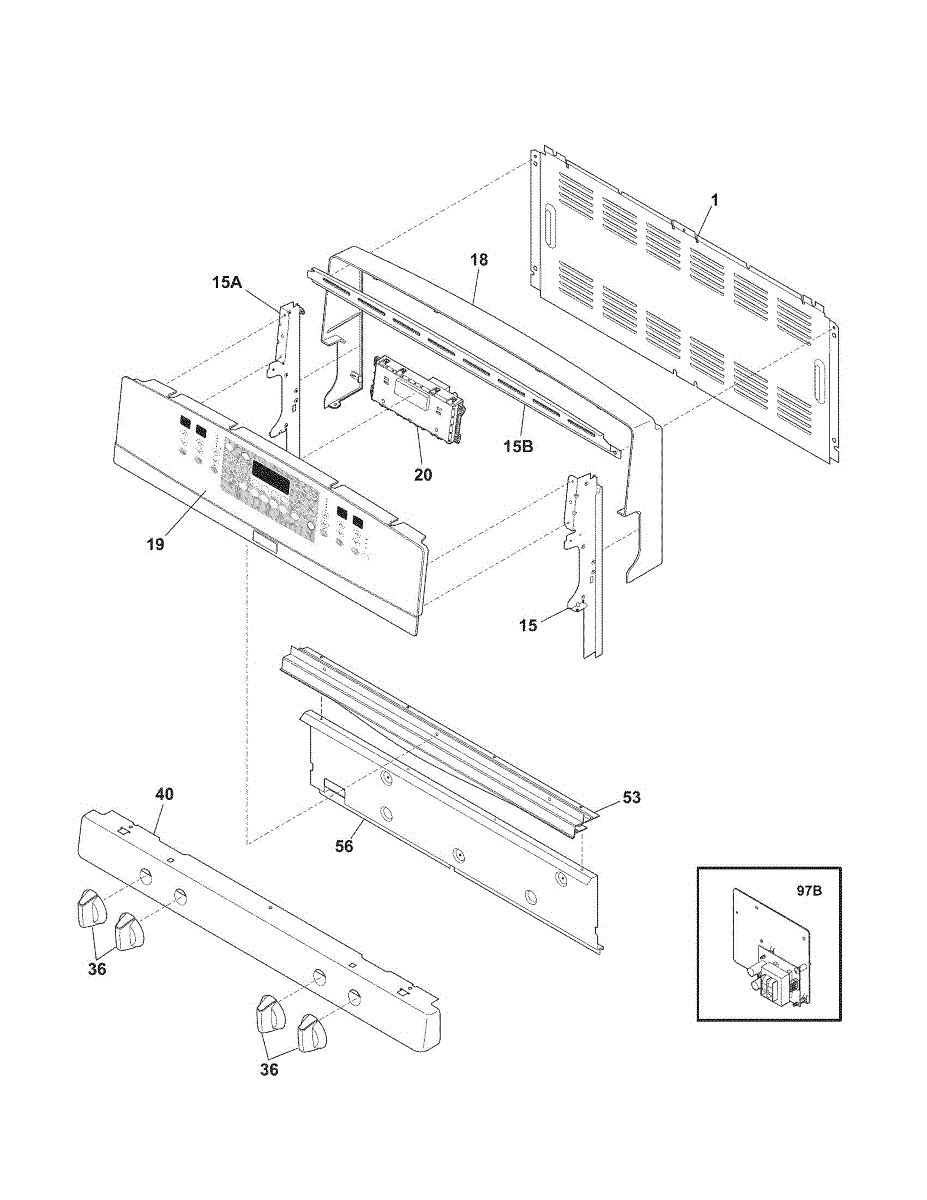

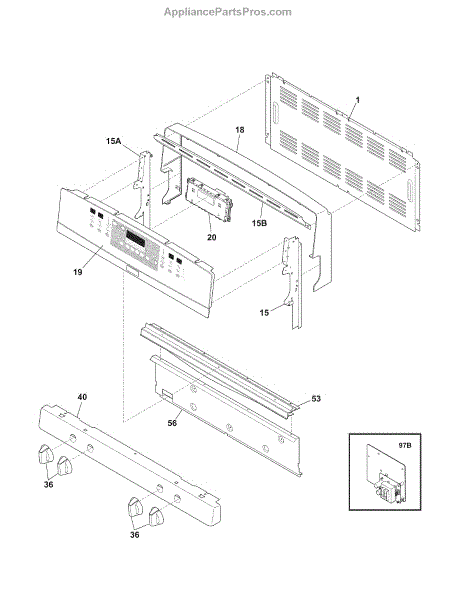

This repair parts list is a printed parts diagram used to identify component locations and part numbers for service or repair. Keep it with the appliance or service records to speed accurate part selection. What it does:

• Shows the appliance's parts layout so technicians and DIYers can locate components visually.
• Lists part numbers and reference callouts to match the correct replacement parts.
• Helps reduce ordering errors by clarifying part locations and orientation.
• Useful for planning repairs and needed parts before disassembly.

• One printed repair parts list (diagram) sheet.

• Not a repair component — reference only; do not attempt repairs based solely on this sheet.
• Keep the sheet dry and free of damage for legible reference during service.
• Always disconnect power and follow safety guidelines before servicing the appliance.
• Use the parts list with the appliance's service manual and part numbers when ordering.

Replacement broiler pan for your range or wall oven. Installs in the oven cavity to catch drippings during broiling. Needed when original is warped or damaged.

Two-piece broiler pan set for your range or wall oven. Includes vented insert and drip tray. Replace cracked, warped, or missing broiler pans.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
