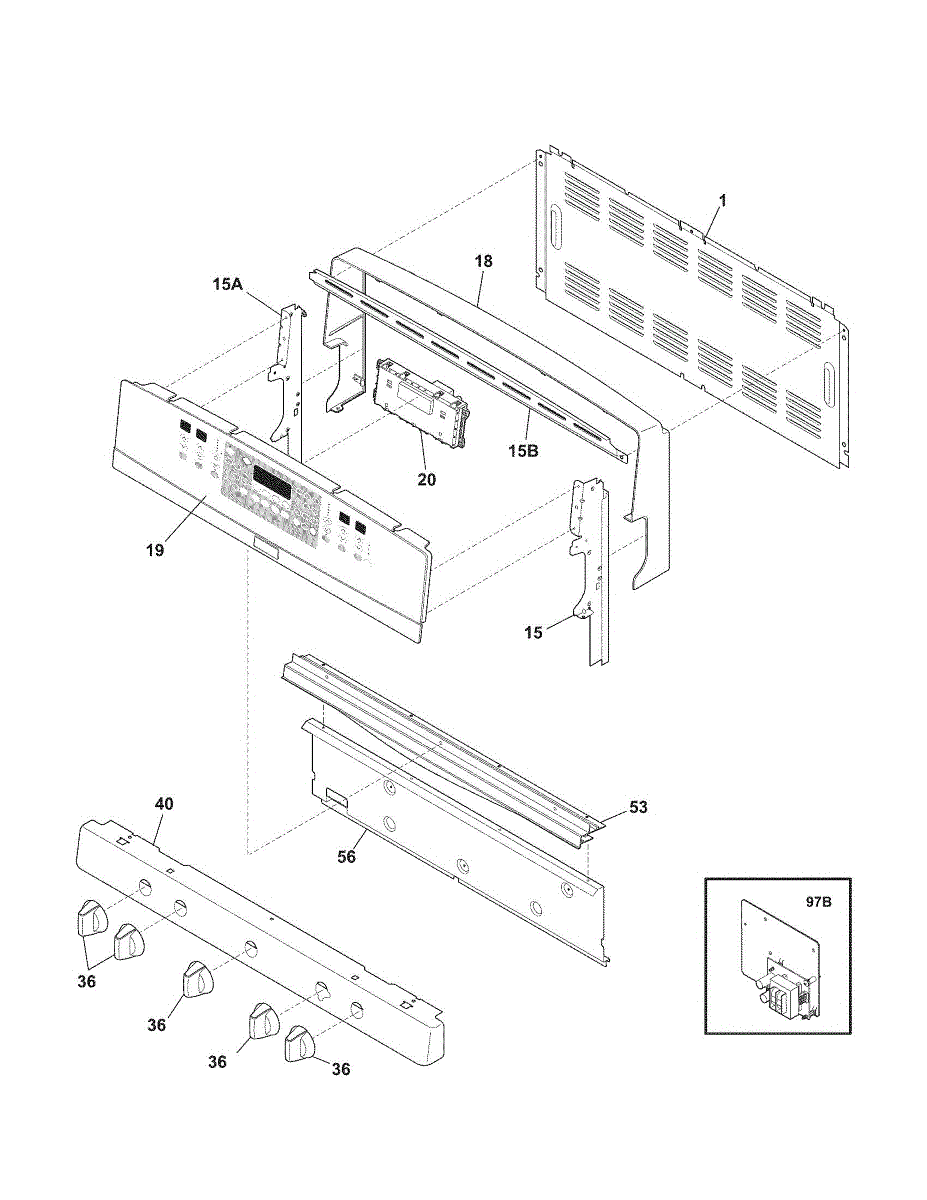

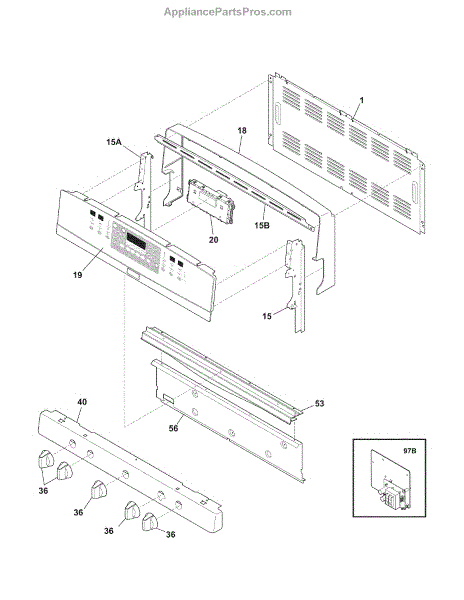

Parts for Kenmore 790.77523803 (79077523803, 790 77523803): Backguard Parts

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the valve stem to control burner temperature settings.

This decorative trim restores the finished appearance around the appliance opening and covers exposed edges for a clean, factory look. It's a direct-fit exterior piece used when the original trim is scratched, dented, or missing. What it does:

• Covers and protects exposed cabinet or appliance edges to restore a finished appearance
• Hides gaps and fastener holes left by damaged or removed trim
• Helps prevent dirt and moisture from collecting in exposed seams
• Commonly replaced when trim is cracked, bent, scratched, or cosmetically worn

• One trim piece as shown

• Designed for direct replacement
• Use basic hand tools; avoid overtightening fasteners to prevent cracking
• Disconnect power or follow manufacturer safety guidance if removing adjacent panels near electrical components
• If any clips or screws are missing, replace with OEM-specified hardware

This printed repair parts list provides the exploded diagram and part references needed to identify service components. It helps technicians and DIYers locate part locations and numbers for accurate ordering and repair planning. What it does:

• Shows an exploded view of components and their OEM part numbers for a specific appliance model.
• Makes it easy to identify worn, broken, or missing parts when troubleshooting symptoms.
• Speeds accurate parts ordering by matching the diagram reference to replacement items.
• Serves as a quick reference during disassembly and reassembly.

• This item is a reference document, not a replacement part or repair procedure.
• Turn off and unplug the appliance before performing any repairs referenced by this diagram.
• Keep the parts list with service records for future troubleshooting and ordering.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
