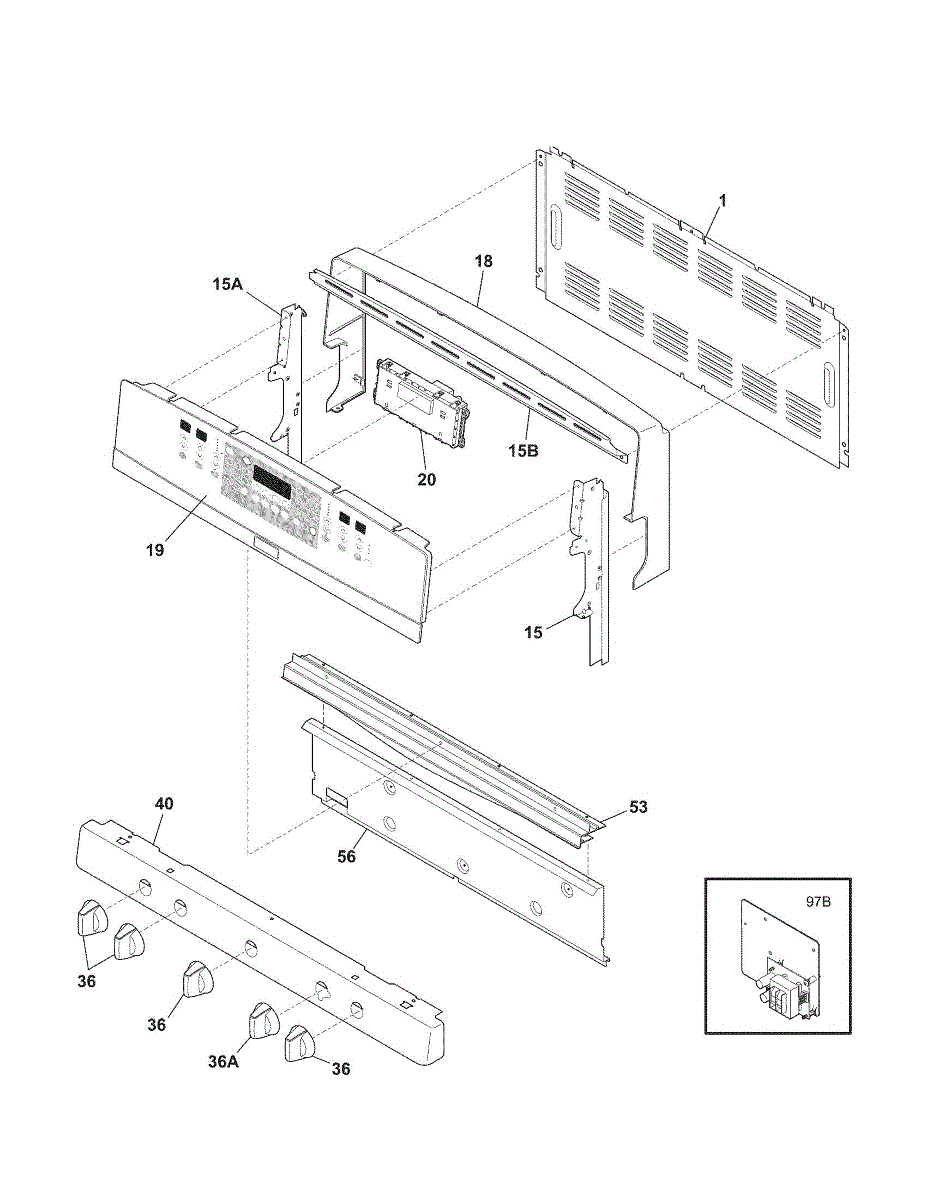

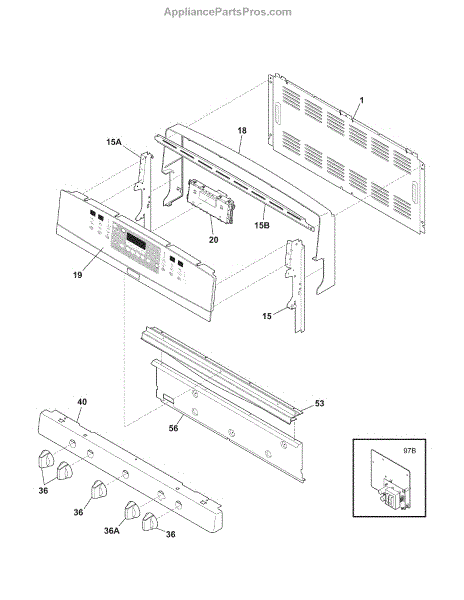

Parts for Kenmore 790.77552803 (79077552803, 790 77552803): Backguard Parts

Trim piece that frames and secures the control panel on your range. Replace if cracked, broken, or discolored to restore a clean, finished appearance.

Range display not working or buttons unresponsive? This electronic control board manages user inputs and cycle operations. Moderate DIY repair.

Fix range issues like unresponsive controls, incorrect temperatures, or display errors with this control board assembly. Moderate DIY repair for home.

This repair parts list is the manufacturer's service sheet that identifies internal components and part numbers to help locate the correct replacement parts. Handy for troubleshooting and ordering the right items for repairs. What it does:

• Shows exploded views and part numbers to identify oven, range, or appliance components
• Supports diagnosing which assemblies or components need replacement
• Useful reference for DIYers when planning repairs

• One printed or PDF repair parts list/service sheet

• This is a reference document only; no physical installation required
• Keep the sheet with the appliance records for future service needs
• Follow manufacturer instructions and disconnect power before performing any repairs

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
