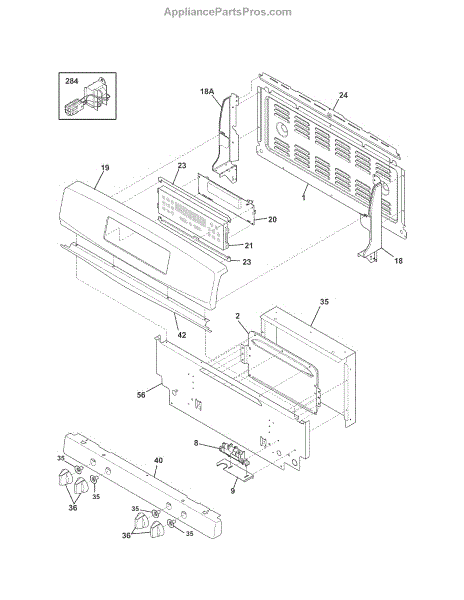

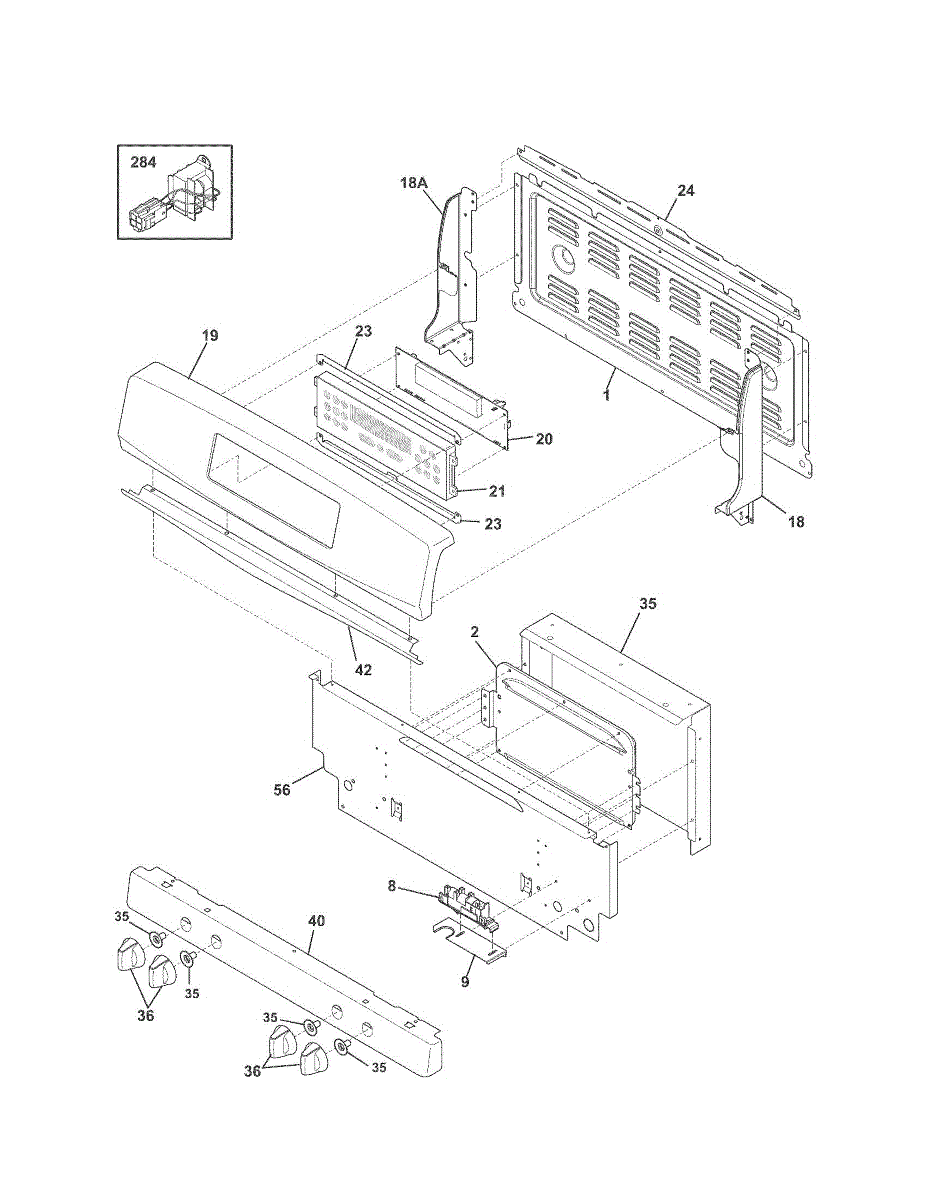

Parts for Kenmore 790.78012001 (79078012001, 790 78012001): Backguard Parts

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replacement bracket for gas ranges. Secures internal components in place. Order a new bracket if yours is bent, broken, or missing to restore proper fit.

Replace your range's touch pad control panel if the overlay is cracked, worn, or unresponsive. This component mounts on the control console for user input.

This timer assembly is the dishwasher/washer/range cycle control that advances and times appliance cycles, restoring proper sequencing for wash, dry, or bake operations when the original timer fails. What it does

• Rotates and switches internal contacts to advance appliance cycles and control timing.
• Replaces a worn or non-advancing timer that leaves cycles stuck or appliances unresponsive.
• Restores electrical switching for timed functions such as wash, rinse, spin, or bake intervals.
• Common symptom: appliance won't advance through cycles or stays in a single mode.

• One timer assembly.

• Disconnect power (and water if applicable) before starting any repair.
• Access typically requires removing the control panel or console; handle control knobs and trim carefully.
• Verify connector orientation and secure wiring to the matching terminals; do not force connectors.
• After installation, restore power and run a test cycle to correct operation.

Deflector shield for gas range burners. Mounts around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This replacement control panel restores the front console area that houses the cooktop/oven controls and display, giving your range a clean, functional interface for input and status readouts. What it does

• Replaces a cracked, scratched, or worn front control surface to restore normal button access and appearance.
• Provides the mounting surface for touchpads, buttons, and the display so controls respond correctly.
• Addresses symptoms such as non-responsive buttons, missing or damaged button labels, and cosmetic damage to the console area.
• Keeps internal control components shielded from spills and debris when installed.

• Disconnect power to the appliance before starting to avoid shock or injury.
• Remove wall oven or range trim/bezels as needed to access and replace the console; handle glass or painted surfaces carefully to avoid damage.
• Keep all original fasteners and brackets; reuse if serviceable and compatible.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

This wiring harness is the OEM-style electrical connector assembly that routes power and signals between components for proper appliance operation. Replacing a damaged harness restores reliable electrical connections and function. What it does:

• Provides the bundled wires and connectors that link controls, motors and sensors
• Replaces frayed, burned or disconnected wiring that can cause intermittent operation or no power
• Restores secure, correct connections to help prevent arcing or short circuits
• Used when connectors are broken, pins are bent, or insulation is damaged

• Always disconnect power (unplug appliance or switch off breaker) before starting work
• Compare new harness to the old one and follow the appliance wiring diagram for routing and connections
• Use proper connector seating and secure harness with original clips or fasteners to avoid pinch points
• If you find melted connectors or significant damage, inspect associated components and replace as needed

This repair parts list is a factory parts sheet that helps identify the correct replacement components and part numbers for service and ordering. Handy for technicians and DIYers verifying what to order before repair. What it does:

• Lists OEM part names and part numbers to confirm correct replacements
• Helps locate part positions and basic references used during service
• Reduces ordering errors by verifying exact part IDs before purchase
• Serves as a reference when planning repairs or speaking with support

• This is a reference document, not a physical appliance component
• Keep with the appliance manual or service records for future use
• Use the listed part numbers when ordering exact replacements

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
