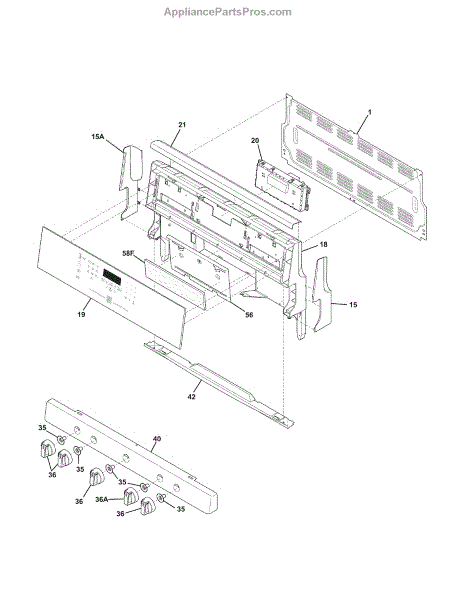

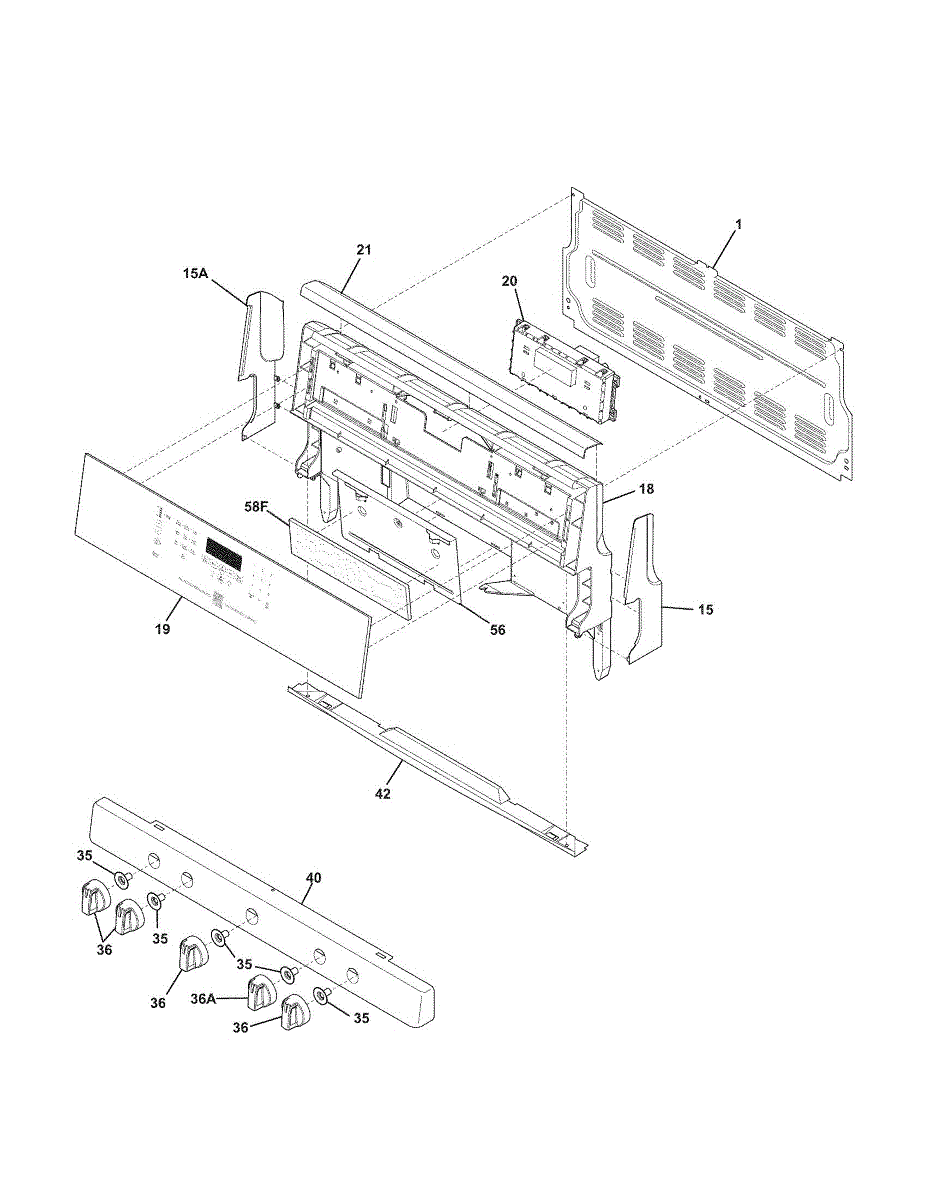

Parts for Kenmore 790.78302012 (79078302012, 790 78302012): Backguard Parts

Display blanking out during heating? This electronic control board manages oven functions, timers, and user inputs. Not difficult to replace yourself.

Decorative trim piece that finishes the range door opening. Replaces cracked, chipped, or missing trim along the door frame for a clean look.

Protective shield for your gas range. Installs to guard internal components from heat and debris. Replace if cracked, bent, or missing for proper coverage.

White top valve knob for range cooktop controls. Replaces cracked, broken, or missing knobs. Fits on valve stem to adjust burner heat settings.

Replace your range's control knob if the original is cracked, broken, or missing. This knob attaches to the control panel for operating burners or oven settings.

This manifold panel is the exterior housing that holds and protects the front controls and valve/manifold area, restoring a clean, secure control surface and making buttons and knobs easy to access and operate. What it does:

• Replaces a cracked, warped, or cosmetically damaged control/manifold housing
• Secures and positions control knobs, switches, or valve components for reliable operation
• Protects internal control and manifold components from spills and debris
• Helps eliminate loose or misaligned controls and improves user access

• Basic removal of trim and fasteners is typically required; keep removed hardware for reassembly
• Turn off power and fuel before starting work to avoid shock or hazard
• Handle gently to avoid scratching the finish; align tabs and snap or fasten per original mounting

This is a replacement installation instruction sheet that provides the manufacturer's step-by-step guidance for installing the appliance or specific component. It helps ensure the installer follows the documented mounting, electrical and safety recommendations. What it does:

• Presents manufacturer installation steps and required safety cautions in plain language
• Identifies common installation-related issues and procedural checkpoints to avoid errors
• Clarifies mounting and connection points so installers can complete setup correctly
• Serves as the official reference when the original paperwork is missing

• This item is documentation only; it does not include hardware, brackets, or electrical parts
• Follow all instructions and local codes; disconnect power before working on electrical components
• Keep the sheet with the appliance for future service and reference

This paper parts list provides the manufacturer's parts diagram and reference numbers to help identify replacement parts and ordering details. Handy for servicing and identifying the exact components needed. What it does:

• Shows exploded diagrams and part reference numbers for easy identification
• Helps you locate the correct replacement parts when a component is damaged or missing
• Assists service techs and DIYers in planning repairs and ordering supplies
• Reduces guesswork when matching fasteners, clips, or trim pieces

• Not an electrical or mechanical replacement part; no installation required
• Keep dry and store with your owner's manual or service paperwork
• Use the reference numbers on the sheet when ordering replacement parts

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
