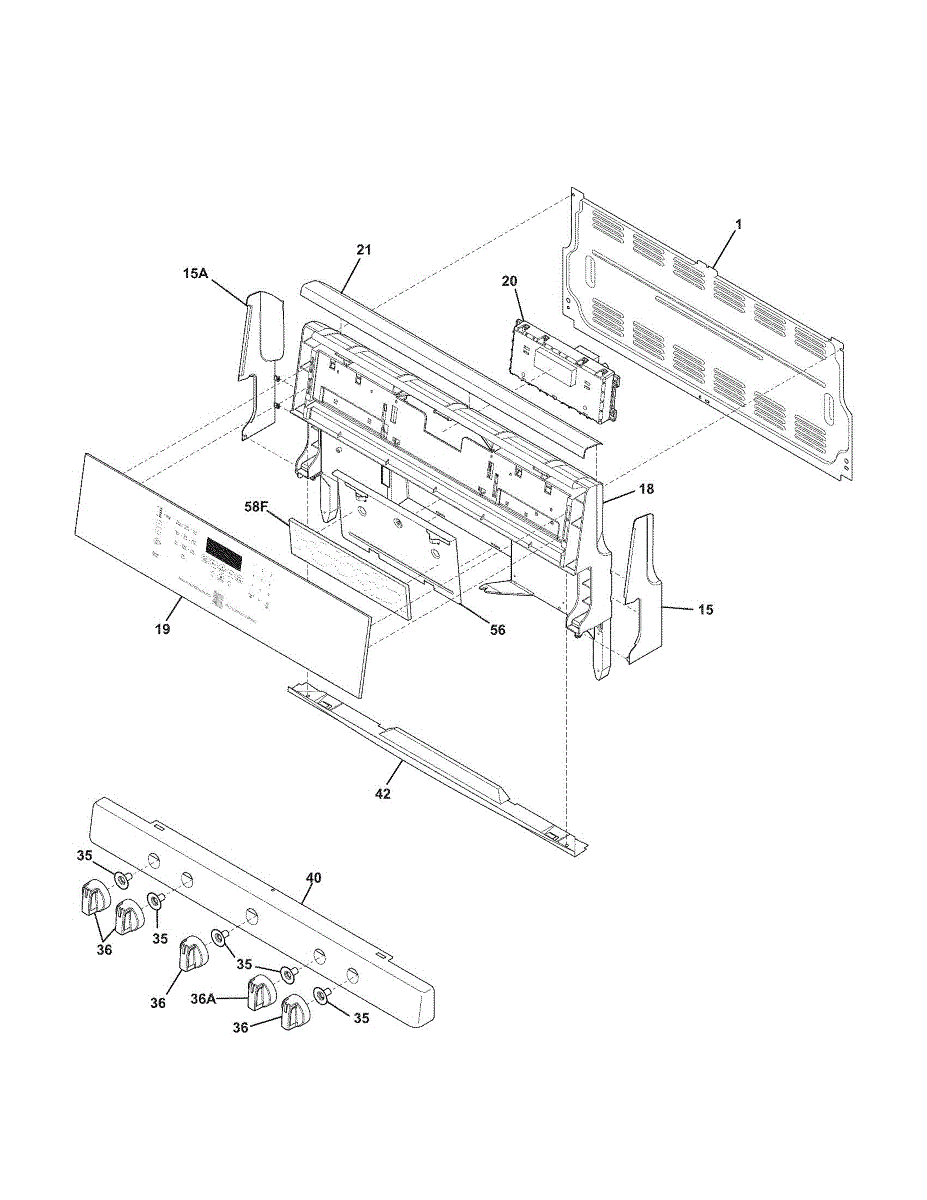

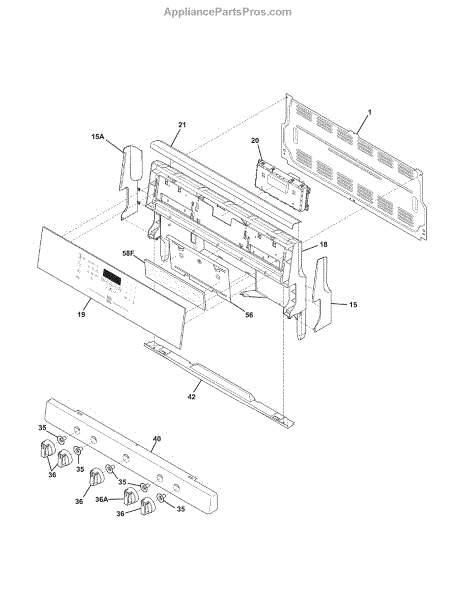

Parts for Kenmore 790.78303012 (79078303012, 790 78303012): Backguard Parts

Display blanking out during heating? This electronic control board manages oven functions, timers, and user inputs. Not difficult to replace yourself.

This range control panel trim piece provides a finished appearance around the control area and may help secure control components in place. It covers gaps and mounting hardware while enhancing the appliance's appearance. Replace this trim if it's cracked, discolored, or missing, which can make the control area look incomplete or allow debris to enter.

Protective shield for your gas range. Installs to guard internal components from heat and debris. Replace if cracked, bent, or missing for proper coverage.

This is a replacement installation instruction sheet that provides the manufacturer's step-by-step guidance for installing the appliance or specific component. It helps ensure the installer follows the documented mounting, electrical and safety recommendations. What it does:

• Presents manufacturer installation steps and required safety cautions in plain language
• Identifies common installation-related issues and procedural checkpoints to avoid errors
• Clarifies mounting and connection points so installers can complete setup correctly
• Serves as the official reference when the original paperwork is missing

• This item is documentation only; it does not include hardware, brackets, or electrical parts
• Follow all instructions and local codes; disconnect power before working on electrical components
• Keep the sheet with the appliance for future service and reference

This repair parts list is the official service parts document that shows the parts breakdown and item numbers to help identify the correct replacement components for a repair. Useful for parts lookup and ordering. What it does:

• Lists part names, reference numbers, and diagram locations to identify required replacement parts
• Supports troubleshooting by showing assembly relationships and component locations
• Useful for service technicians and DIYers when planning repairs

• Reference the parts list for identification only; follow product service manual for repairs
• Turn off and disconnect power before servicing electrical components
• Keep the document with the appliance records for future reference

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
