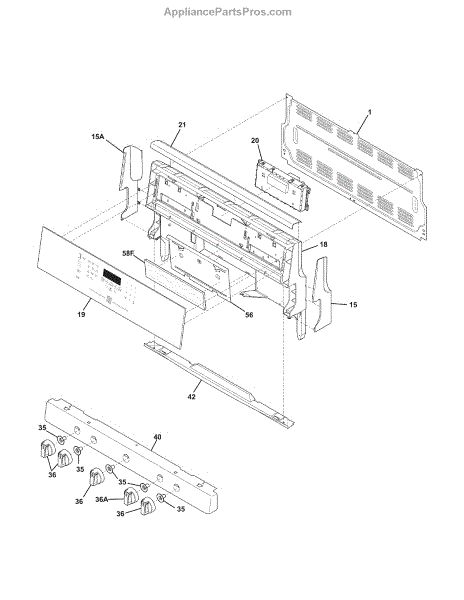

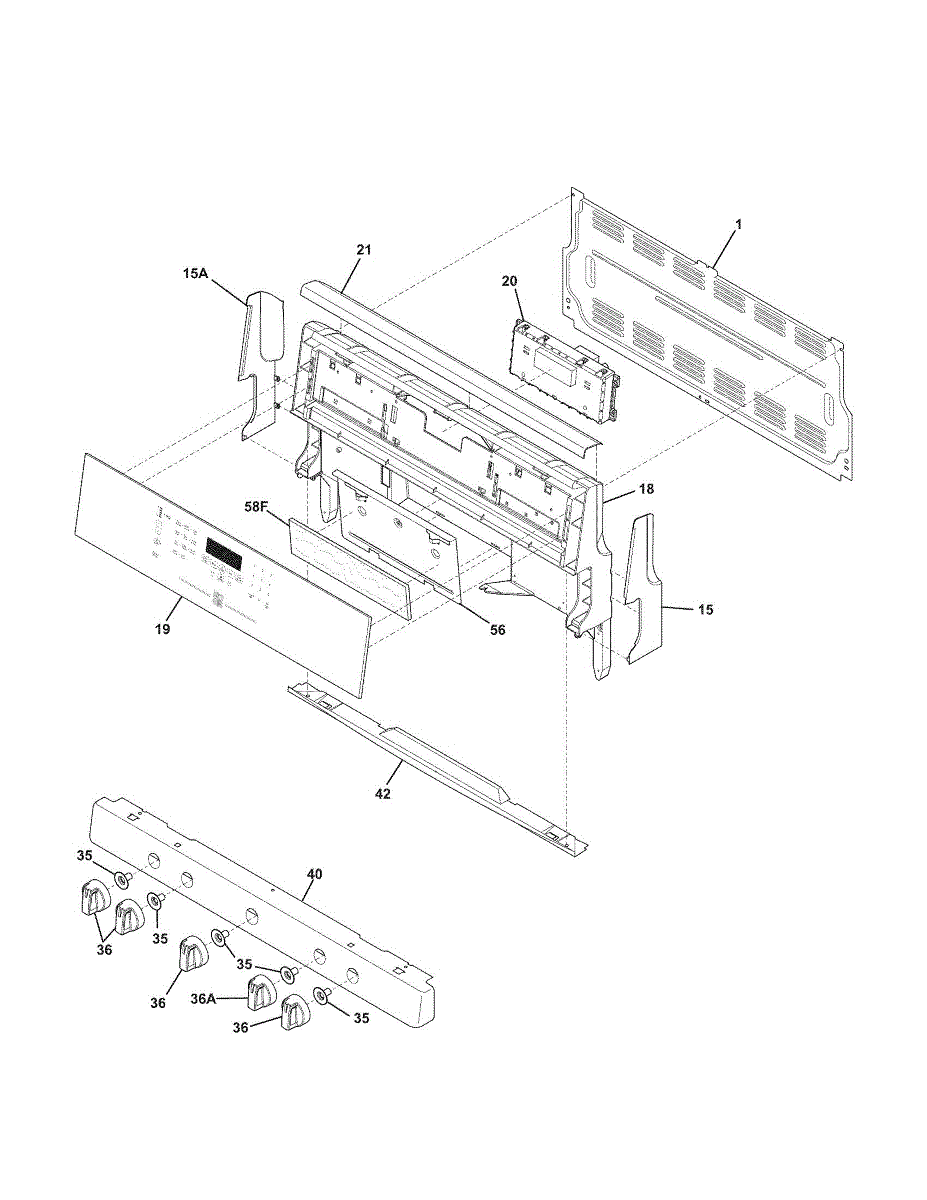

Parts for Kenmore 790.78409010 (79078409010, 790 78409010): Backguard Parts

Decorative trim piece that finishes the range door opening. Replaces cracked, chipped, or missing trim along the door frame for a clean look.

Protective shield for your gas range. Installs to guard internal components from heat and debris. Replace if cracked, bent, or missing for proper coverage.

White top valve knob for range cooktop controls. Replaces cracked, broken, or missing knobs. Fits on valve stem to adjust burner heat settings.

Replace your range's control knob if the original is cracked, broken, or missing. This knob attaches to the control panel for operating burners or oven settings.

This repair parts list is a replacement diagram sheet that shows the appliance's exploded views and part numbers to help identify components for ordering and repair planning. It's useful for technicians and owners verifying needed parts. What it does:

• Shows exploded diagrams and location of service parts for the appliance
• Lists OEM part numbers to simplify accurate ordering
• Helps identify failed or missing components before starting a repair
• Speeds diagnosis and parts procurement by matching visuals to hardware

• This is a reference document, not a mechanical or electrical component
• Keep the sheet with appliance documentation
• Always unplug the appliance or shut off power and water before servicing
• If a printed diagram is damaged, replace it before relying on part references

This is a replacement installation instruction sheet that provides the manufacturer's step-by-step guidance for installing the appliance or specific component. It helps ensure the installer follows the documented mounting, electrical and safety recommendations. What it does:

• Presents manufacturer installation steps and required safety cautions in plain language
• Identifies common installation-related issues and procedural checkpoints to avoid errors
• Clarifies mounting and connection points so installers can complete setup correctly
• Serves as the official reference when the original paperwork is missing

• This item is documentation only; it does not include hardware, brackets, or electrical parts
• Follow all instructions and local codes; disconnect power before working on electrical components
• Keep the sheet with the appliance for future service and reference

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
