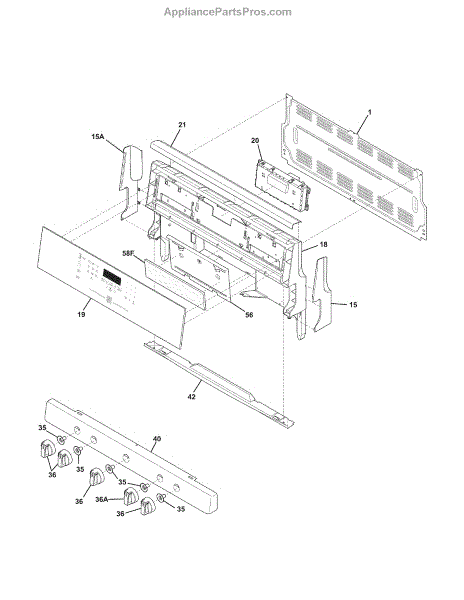

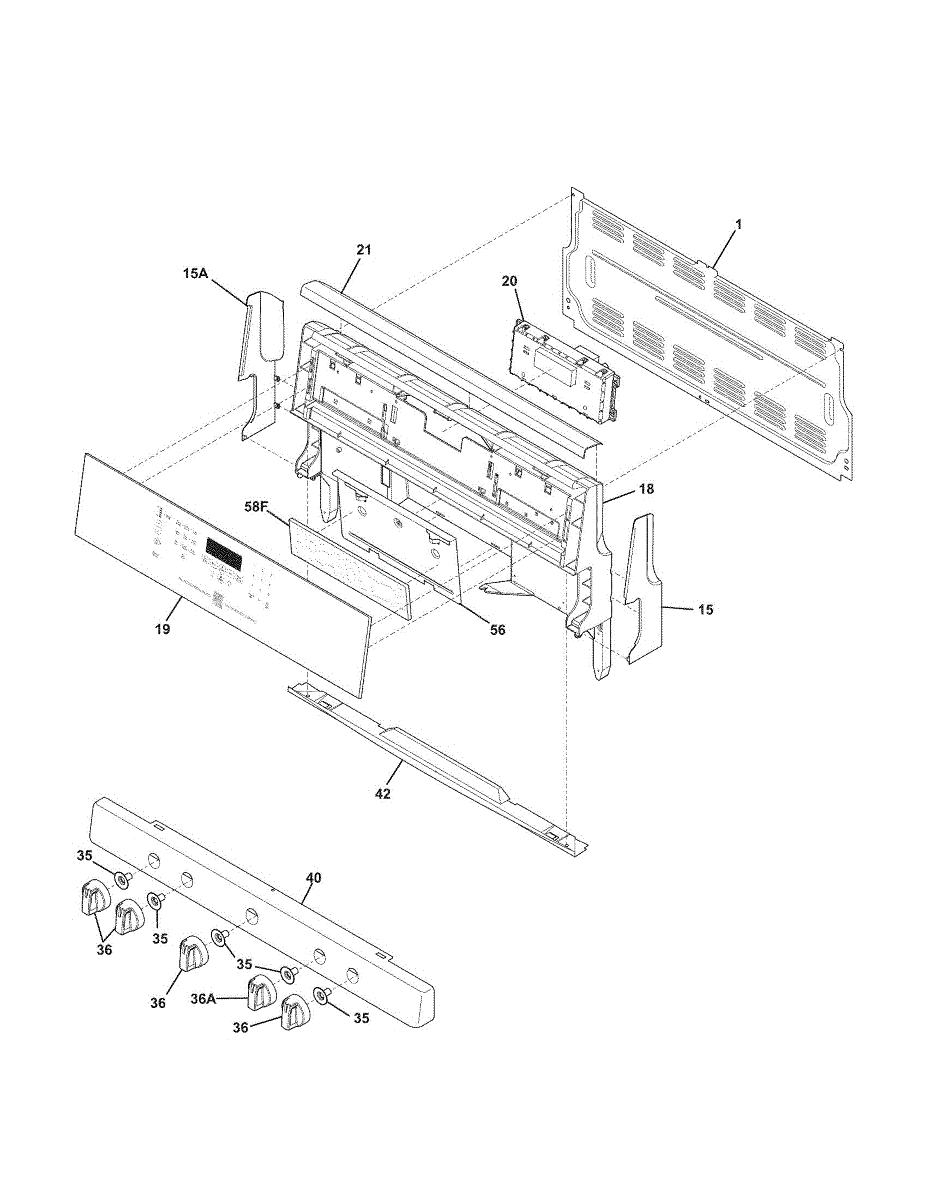

Parts for Kenmore 790.78503012 (79078503012, 790 78503012): Backguard Parts

This electronic control board is the user interface and command center that manages oven/range functions, displays settings, and controls heating cycles for reliable cooking performance. What it does:

• Receives input from the control pad and sends commands to heating elements, igniters, and relays
• Controls oven cycles, timers, clock display, and temperature regulation
• Helps prevent incorrect operation when the display is blank or buttons are unresponsive
• Faulty boards can cause error codes, loss of display, or ovens that won't heat as commanded

• Disconnect power at the breaker or unplug the appliance before beginning service
• Handle the board by its edges and avoid static discharge; wear an ESD wrist strap if available
• After installation, some controls may need clock/time or basic settings reset per the owner's/service manual

This range control panel trim piece provides a finished appearance around the control area and may help secure control components in place. It covers gaps and mounting hardware while enhancing the appliance's appearance. Replace this trim if it's cracked, discolored, or missing, which can make the control area look incomplete or allow debris to enter.

Protective shield for your gas range. Installs to guard internal components from heat and debris. Replace if cracked, bent, or missing for proper coverage.

This Folder is a replacement drawer divider that helps keep refrigerator contents organized and prevents items from shifting. It restores proper fit and layout inside the drawer so food stays separated and accessible. What it does

• Replaces a cracked, broken or missing drawer divider that no longer holds items in place
• Helps prevent jars and containers from tipping or sliding when drawers open and close
• Restores proper spacing and organization inside the refrigerator drawer
• Fits into existing slots or guides to secure the divider

• Remove food and an empty drawer before installing to avoid spills
• Slide the folder into the factory slots or guides until it snaps or seats fully
• No special tools typically required; use a plastic trim tool if needed to avoid scratching

This repair parts list is a factory parts diagram sheet that helps identify component locations and part numbers for accurate ordering and diagnosis. Handy for service techs and DIYers matching replacements to the appliance. What it does:

• Shows part locations and item numbers on the appliance diagram
• Simplifies troubleshooting by clarifying component names and layout
• Reduces ordering errors by matching visual diagrams to the unit

• No tools required; use for parts identification only
• Keep the sheet dry and store with appliance documentation
• Not an electrical or repair kit—use alongside service manual for repairs
• If a component is damaged, follow manufacturer service instructions and disconnect power before servicing

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
