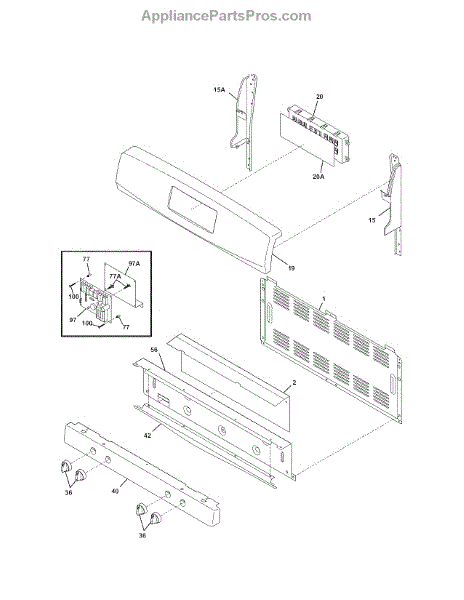

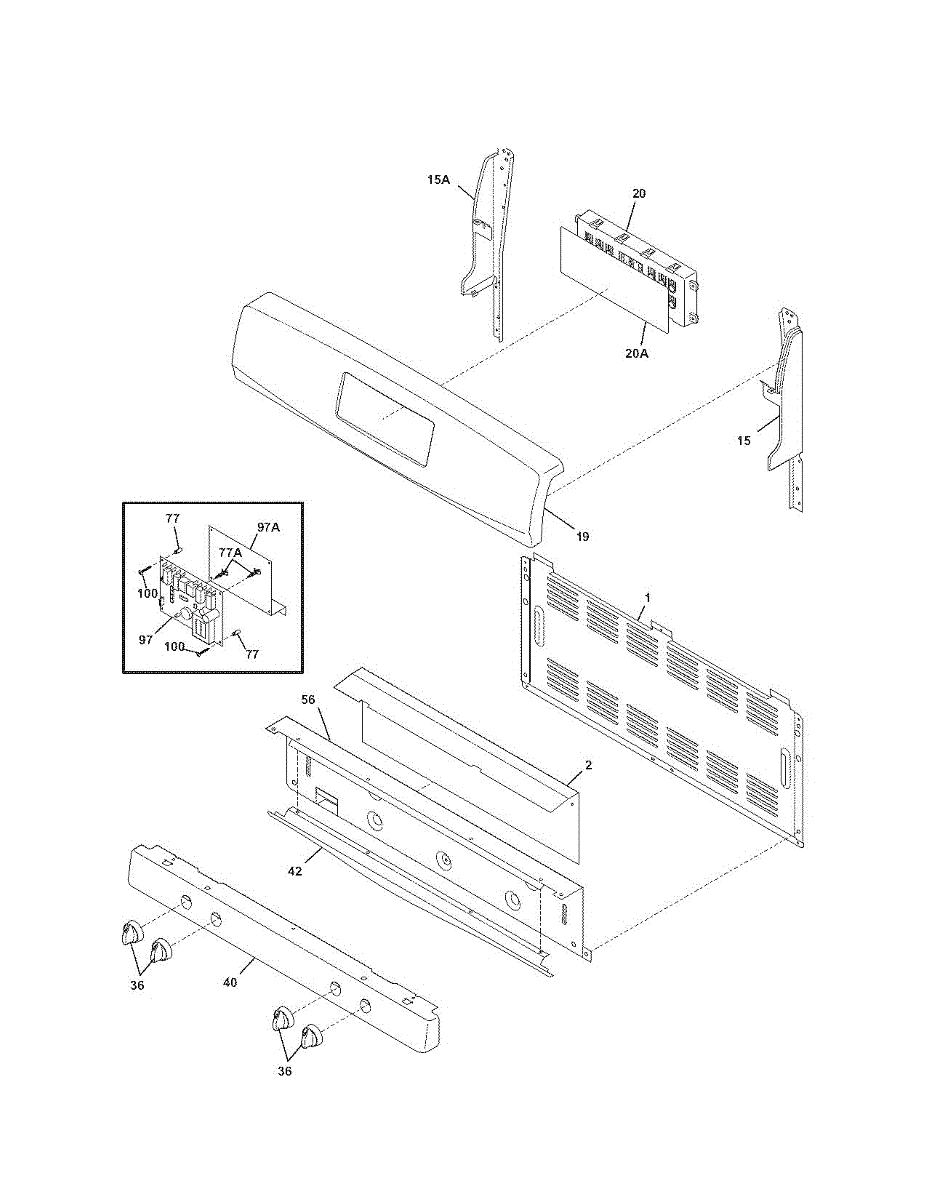

Parts for Kenmore 790.78634603 (79078634603, 790 78634603): Backguard Parts

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

This electronic control board manages all oven functions in range appliances including temperature regulation and cooking modes. Located behind the front control panel, it needs replacement if oven won't heat, shows error codes, or temperature control becomes erratic.

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Replacement control knob for ranges and cooktops. Attaches to the valve shaft to select burner or oven heat settings when original is cracked, worn, or missing.

Black range burner control knob that mounts on the front control panel. Replace if your knob is cracked, broken, missing, or difficult to grip securely.

Replace your range's control panel if cracked, damaged, or worn. This structural part covers the control interface area on the front of your stove.

Replace your range's control panel touch pad if the overlay is cracked, peeling, or unresponsive. This membrane pad covers the control buttons on your oven.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This wiring harness connects internal components to restore electrical and signal continuity in your appliance. It replaces a damaged or worn harness to help regain reliable operation and safe power distribution. What it does:

• Transfers power and control signals between modules and components
• Replaces frayed, cut, or brittle wires that cause intermittent power or function loss
• Helps stop issues like controls that won't respond, motors that don't run, or lights that fail to power
• Provides factory-style connectors to maintain correct component mating and polarity

• Disconnect power to the appliance before starting any repair
• Route harness clear of sharp edges and moving parts; secure with existing clips or ties
• If you see damaged connectors or corrosion at mating terminals, clean or replace those parts as needed

This repair parts list is the illustrated parts diagram and index used to identify service parts and part numbers for repairs. It helps DIYers find the correct replacement parts faster and avoid ordering errors. What it does:

• Provides exploded diagrams and itemized part numbers for the appliance
• Helps identify the exact replacement component tied to each assembly location
• Useful when troubleshooting by comparing parts to observed damage or failure
• Streamlines ordering by matching the correct part number to the needed component

• Use this parts list only as a reference to identify and order parts; follow OEM service instructions for installation
• Keep the document dry and on hand during repair to confirm part orientation and placement
• For safety and warranty reasons, disconnect power and follow lockout/tagout procedures before servicing

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
