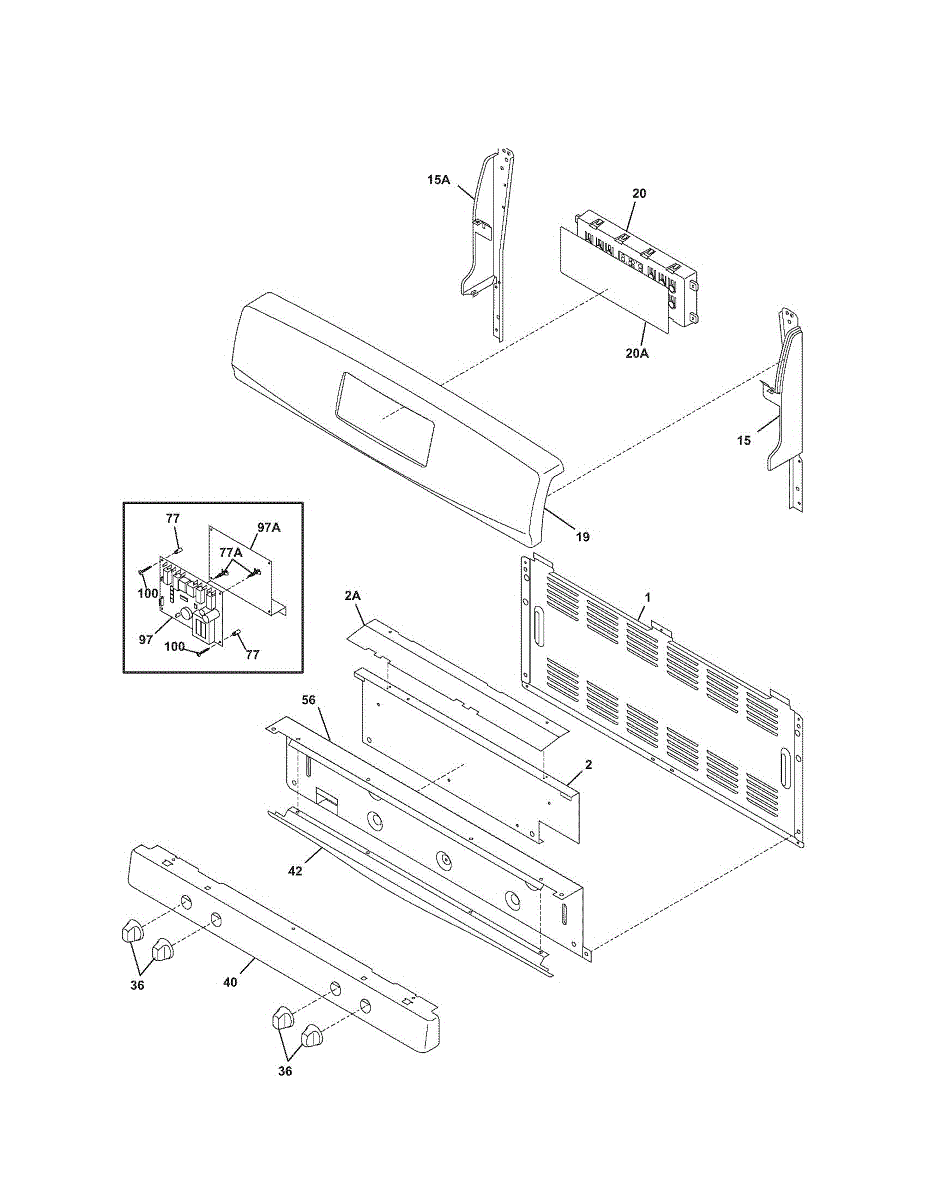

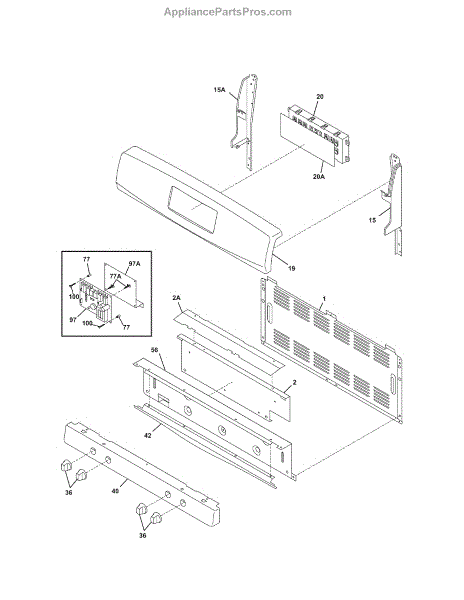

Parts for Kenmore 790.78914502 (79078914502, 790 78914502): Backguard Parts

This is a bisque-colored left-side support bracket that mounts to the backguard area of the range. It provides structural support for the shelf or trim along the back of the cooktop. Replace this bracket if it is cracked, broken, or missing, which can cause the backguard trim or shelf to sit unevenly or come loose.

This electronic control board manages all oven functions in range appliances including temperature regulation and cooking modes. Located behind the front control panel, it needs replacement if oven won't heat, shows error codes, or temperature control becomes erratic.

White control knob for range surface burners. Replaces cracked, worn, missing, or discolored burner knobs. Restores secure grip and clear control.

Black control knob attaches to cooktop valve stem to turn burner on/off and adjust heat. Replace cracked, stripped, or missing knobs for safe operation.

Replace your range's control panel touch pad if the original is cracked, faded, or worn. This overlay installs on the control board to restore appearance.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This wiring harness connects internal components to restore electrical and signal continuity in your appliance. It replaces a damaged or worn harness to help regain reliable operation and safe power distribution. What it does:

• Transfers power and control signals between modules and components
• Replaces frayed, cut, or brittle wires that cause intermittent power or function loss
• Helps stop issues like controls that won't respond, motors that don't run, or lights that fail to power
• Provides factory-style connectors to maintain correct component mating and polarity

• Disconnect power to the appliance before starting any repair
• Route harness clear of sharp edges and moving parts; secure with existing clips or ties
• If you see damaged connectors or corrosion at mating terminals, clean or replace those parts as needed

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
