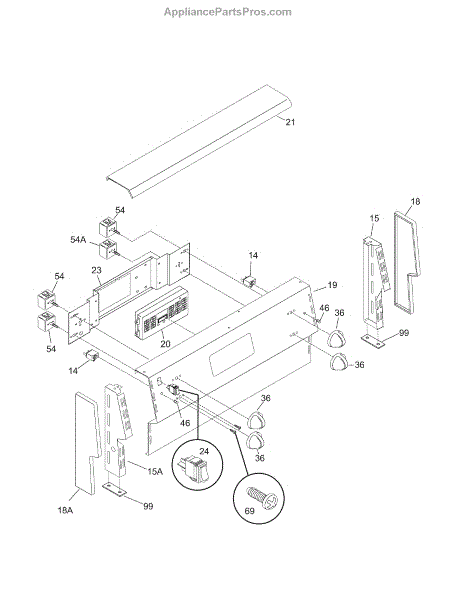

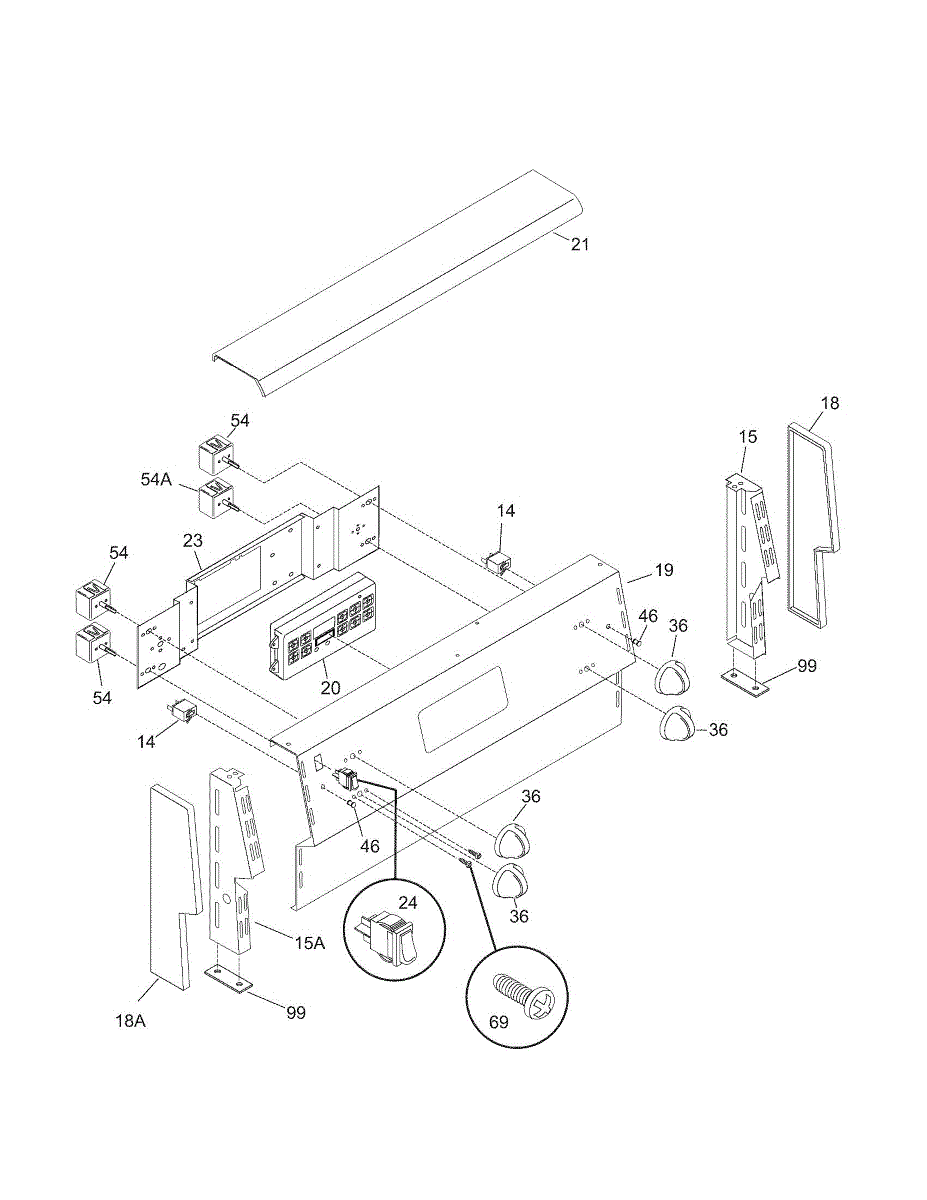

Parts for Kenmore 790.90152304 (79090152304, 790 90152304): Backguard Parts

This control panel restores the user interface on your appliance so buttons and displays operate correctly. It provides the finished front surface and mounting points needed to interact with the appliance controls. What it does

• Replaces a damaged or worn control-panel surface so buttons and switches engage properly.
• Restores proper alignment and support for control buttons, touchpads or display windows.
• Helps resolve issues caused by cracked, bent, or cosmetically damaged panels.
• Works with existing hardware and components to re-establish a secure front control area.

• One control panel

• Designed for straightforward replacement; remove power before starting to avoid shock.
• Keep small screws and clips organized during disassembly—many panels use retaining fasteners.
• If the panel includes electronic switches or a display, handle with care and avoid touching circuitry.
• Compare this part number to the panel on your appliance before ordering.

If your range clock display is blank or oven won't start on time, the control board clock timer may have failed. Moderate DIY repair in 30-45 minutes.

Replace your range's control panel trim piece if cracked, broken, or missing. This decorative trim installs around the control panel for a finished look.

Replace your range's control knob if the original is cracked, broken, or missing. This knob installs on the control panel to operate burners or oven settings.

Covers and protects your range's interior light bulb from spills and debris. Replace when cracked, discolored, or missing to restore proper lighting.

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

Burner not heating or won't turn on? This electric range control switch restores power to stovetop elements. Straightforward DIY repair.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This printed Use and Care Guide provides the official owner instructions for safe operation, basic maintenance, and simple troubleshooting for your appliance. It helps you understand controls, care tips, and safety warnings to protect performance and avoid damage. What it does:

• Explains basic operation and control functions in plain language
• Lists safety warnings and recommended maintenance to prevent issues
• Offers basic troubleshooting steps for common symptoms like odd noises, temperature problems, or leaks
• Details cleaning and care procedures to help extend appliance life

• No tools required — this is a replacement owner's manual, not a hardware part
• Read all safety warnings before operating the appliance
• Keep the guide with the appliance for future reference and for new users
• Recycle or discard any old documentation per local regulations

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replaces the cracked, faded, or worn clock/timer overlay on your range control panel. Restores button markings and display labels for easy reading.
