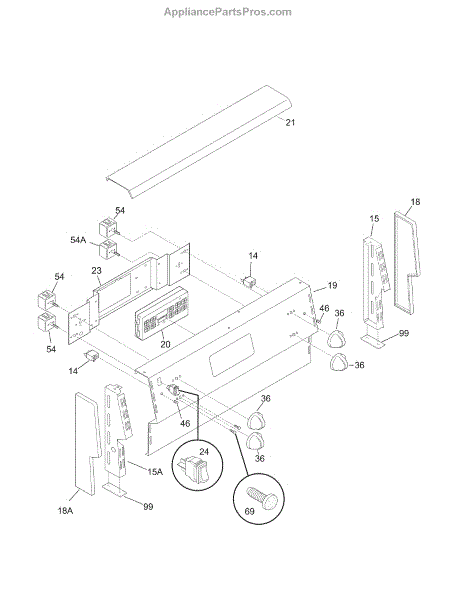

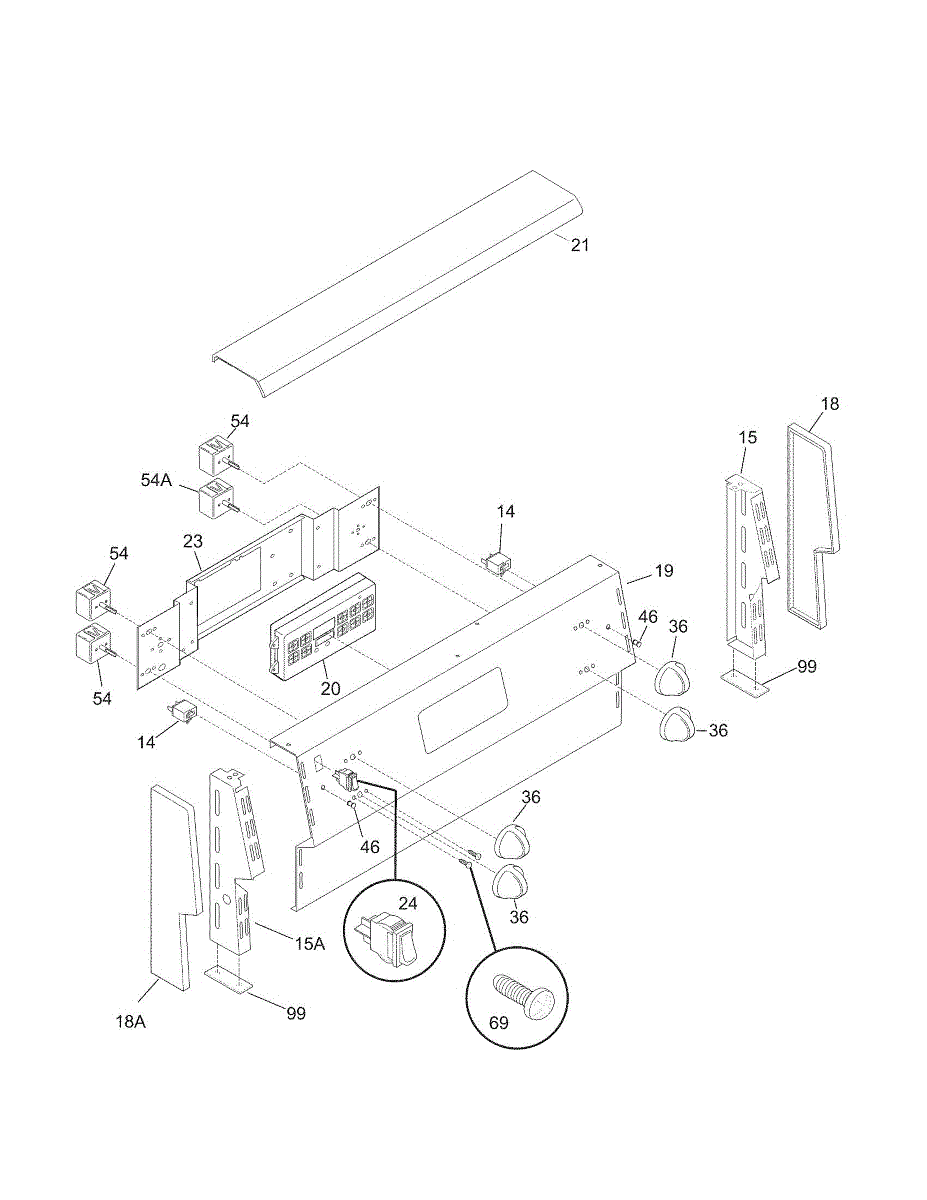

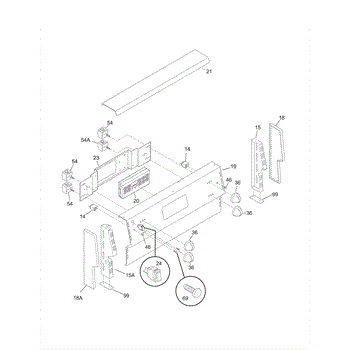

Parts for Kenmore 790.90152307 (79090152307, 790 90152307): Backguard Parts

Indicator light bulb illuminates control panel displays on your range. Replace when light dims or burns out to restore visibility. Verify fit with model number.

This control panel restores the user interface on your appliance so buttons and displays operate correctly. It provides the finished front surface and mounting points needed to interact with the appliance controls. What it does

• Replaces a damaged or worn control-panel surface so buttons and switches engage properly.
• Restores proper alignment and support for control buttons, touchpads or display windows.
• Helps resolve issues caused by cracked, bent, or cosmetically damaged panels.
• Works with existing hardware and components to re-establish a secure front control area.

• One control panel

• Designed for straightforward replacement; remove power before starting to avoid shock.
• Keep small screws and clips organized during disassembly—many panels use retaining fasteners.
• If the panel includes electronic switches or a display, handle with care and avoid touching circuitry.
• Compare this part number to the panel on your appliance before ordering.

Replace your range's control panel trim piece if cracked, broken, or missing. This decorative trim installs around the control panel for a finished look.

Covers and protects your range's interior light bulb from spills and debris. Replace when cracked, discolored, or missing to restore proper lighting.

Fix unresponsive range controls with this push-button switch. Restores user input functions by completing electrical circuits when buttons are pressed.

Burner not heating or won't turn on? This electric range control switch restores power to stovetop elements. Straightforward DIY repair.

This is the official repair parts list — a parts diagram and reference sheet used to identify replacement components and part numbers quickly. Handy for diagnosing which parts to order and proper part placement. What it does:

• Provides a labeled parts diagram so you can match components to part numbers.
• Helps identify the exact replacement parts needed for repairs.
• Speeds up ordering by showing part locations and reference numbers.
• Reduces guesswork when planning a repair or communicating.

• This is a reference document, not a mechanical or electrical component.
• Always disconnect power to the appliance before attempting any repairs referenced by the list.
• Use the diagram to part numbers and placement before ordering.
• Keep the sheet with your appliance records for future maintenance.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replaces the cracked, faded, or worn clock/timer overlay on your range control panel. Restores button markings and display labels for easy reading.
